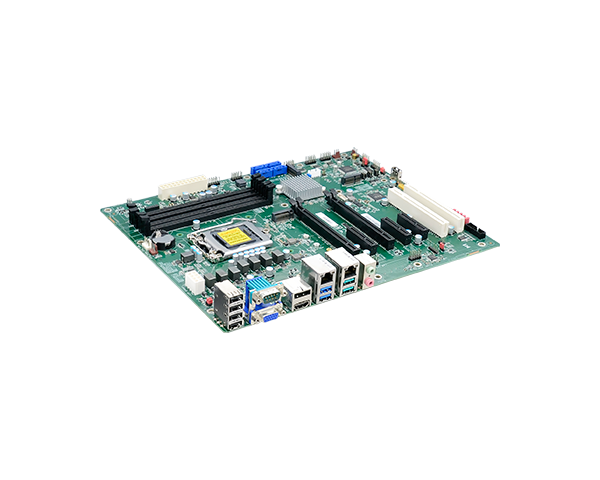

CMS630-W480E/Q470E
Home Industrial Motherboards ATX CMS630-W480E/Q470E
  • 10th Gen Intel® Core Processors
  • 4 DDR4 UDIMM up to 128GB
  • Triple Displays: VGA + DP++ + HDMI
  • Supports 4K/ 2K resolution
  • Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 1 PCIe x1, 2 PCI, 2 M.2 M key
  • Rich I/O: 2 Intel GbE, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
PCIe x16
HDMI
VGA
DP
15 Years CPU Life Cycle Support
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification
KC Certification
UKCA Certification

CMS630-W480E/Q470E Related Tags

#IoT#Intel#PCIe x16#Windows#Linux#HDMI#VGA#DP#DDR4#RoHS Certification#UL Certification#CE Certification#FCC Certification#KC Certification#10th Gen Intel® Comet Lake Processor#Legacy ISA/PCI Expansion Port#UKCA Certification
CMS630-W480E/Q470E
CMS630-W480E/Q470E
CMS630-W480E/Q470E
System
Processor
[CMS630-W480E] 10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W
[CMS630-W480E] Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W
[CMS630-W480E] Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
[CMS630-W480E] Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W
[CMS630-W480E] Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
[CMS630-W480E] Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W
[CMS630-W480E] Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W
[CMS630-W480E] Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
[CMS630-W480E] Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
[CMS630-W480E] Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
[CMS630-W480E] Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
[CMS630-W480E] Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
[CMS630-W480E] Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
[CMS630-W480E] Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W
[CMS630-W480E] Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W


[CMS630-Q470E] 10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W
[CMS630-Q470E] Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W (no support ECC)
[CMS630-Q470E] Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (no support ECC)
[CMS630-Q470E] Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (no support ECC)
[CMS630-Q470E] Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (no support ECC)
[CMS630-Q470E] Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (no support ECC)
[CMS630-Q470E] Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (no support ECC)
[CMS630-Q470E] Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
[CMS630-Q470E] Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
[CMS630-Q470E] Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
[CMS630-Q470E] Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
[CMS630-Q470E] Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
[CMS630-Q470E] Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
[CMS630-Q470E] Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W (no support ECC)
[CMS630-Q470E] Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (no support ECC)
[CMS630-Q470E] Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
[CMS630-Q470E] Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
[CMS630-Q470E] Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W
Chipset
[CMS630-W480E] Intel® W480E Chipset
[CMS630-Q470E] Intel® Q470E Chipset
Memory
[CMS630-W480E] Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)
[CMS630-W480E] Dual Channel DDR4 2400/2666/2933MHz
[CMS630-W480E] (ECC/Non-ECC)
[CMS630-Q470E] Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)
[CMS630-Q470E] Dual Channel DDR4 2400/2666/2933MHz
[CMS630-Q470E] (Non-ECC)
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA, resolution up to 1920x1200 @ 60Hz
1 x DP++, resolution up to 4096x2160 @ 60Hz
1 x HDMI 1.4b, resolution up to 4096x2160 @ 24Hz
Triple Displays
VGA + DP++ + HDMI
Expansion
Interface
2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal)
3 x PCIe x4 (Gen 3) (2 x4 signal and 1 x1 signal)
2 x PCI
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/Intel® Optane Memory and intel RST support)
1 x M.2 2230 E key (USB 2.0/PCIe x1 shared with PCIe x1 slot, opt., MOQ required)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
4 x USB 2.0
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB
2 x USB 3.2 Gen 2 (Key B 20-pin)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s, SATA 3)
RAID 0/1/5/10
DIO
1 x 16-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
PS/2
1 x PS/2 (mini-DIN-6)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM2.0 (opt., MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-10900K: 3.3V @ 0.17A (0.56W); 5V @ 0.74A (3.7W); 12V @ 0.41A (4.92W)
Max.: i9-10900K:3.3V @ 0.21A (0.69W); 5V @ 1.73A (8.65W); 12V @ 12.48A (149.76W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows Server 2019 (opt. only support Intel® i210)
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
492,929 hrs @ 25°C ; 274,924 hrs @ 45°C ; 171,243 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA, KC, UL
Packing List
Packing List
1 CMS630 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-CMS630-000G
1 M.2 screw/standoff A32-112016-041G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CMS630-W480ECRM
    Part Number :
    770-CMS6303-000G
    Description :
    4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C
  • Model Name :
    CMS630-Q470ECRM
    Part Number :
    770-CMS6303-100G
    Description :
    4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C
  • Model Name :
    CMS630-W480ECRM
    Part Number :
    770-CMS6303-200G
    Description :
    4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C
  • Model Name :
    CMS630-Q470ECRM
    Part Number :
    770-CMS6303-300G
    Description :
    4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350/398mm
  • Item Name :
    USB3.2 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm, W/LOCK
  • Item Name :
    Thermal solution
    Part Number :
    A71-101107-000G
    A71-101158-000G
    761-103001-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
  • Item Name :
    PS2 KB/MS Cable
    Part Number :
    332-353016-009G
    Description :
    Length: 400mm
  • Item Name :
    EXT-RS232
    Part Number :
    770-EXTRS1-000G
    Description :
    4 ports RS-232 LPC module
  • Item Name :
    EXT-RS485
    Part Number :
    770-EXTRS1-100G
    Description :
    4 ports RS-485 LPC module
  • Item Name :
    M.2-COM4
    Part Number :
    770-M2COM1-000G
    Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN
    Part Number :
    770-M22LN2-000G
    Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE
    Part Number :
    770-M22PS1-000G
    Description :
    M.2 PSE module
