M8M051
Home Industrial Motherboards 2.5" Pico-ITX M8M051
  • NXP i.MX 8M Processors
  • Single Channel LPDDR4 up to 3200 MHz
  • Single Display: HDMI/LVDS
  • HDMI: resolution up to 4096x2160 @60Hz / LVDS: resolution up to 1920x1080 @60Hz
  • Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
  • Rich I/O: 1 Intel GbE, 3 COM, 2 USB 3.1 Gen1, 3 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 33 (Based on NXP Roadmap)

Status : Launched QUOTE NOW

Low Power Consumption
Compact Size
Android
Multiple Expansion
12V DC-in
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

M8M051 Related Tags

#Edge AI Computing#NXP#CAN-Bus#ARM#Compact Size#Android#HDMI#Multiple Expansion#DDR4#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification#UKCA Certification#NXP i.MX 8M

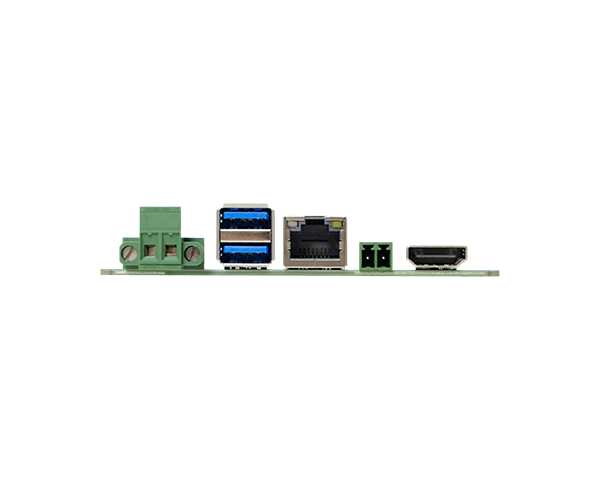

Pico-ITX Front

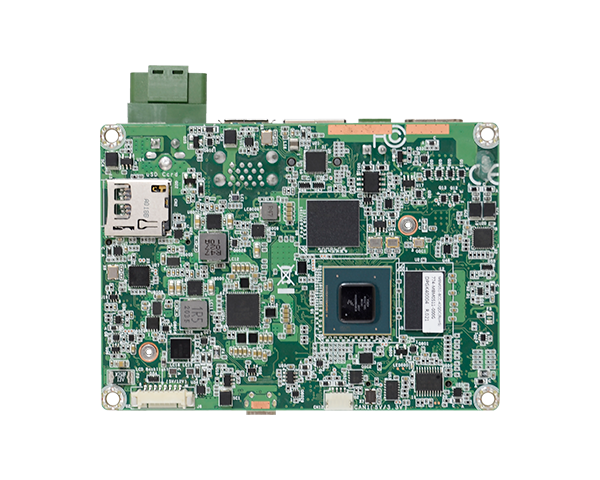

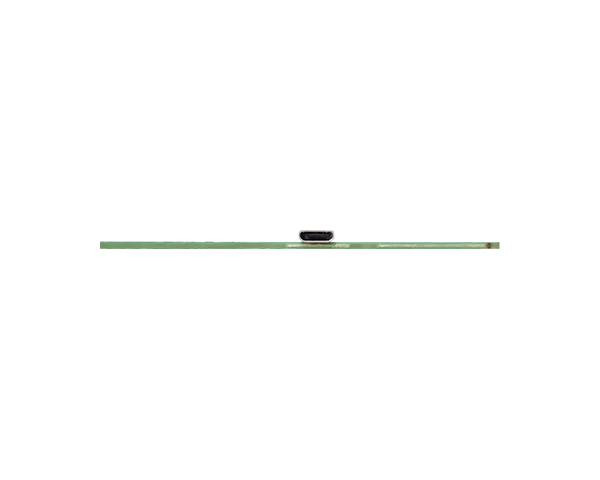

Pico-ITX Back
Pico-ITX Front
Pico-ITX Back

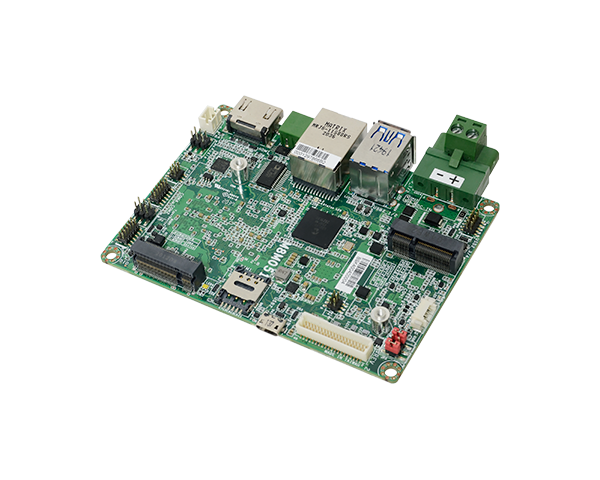

Pico-ITX Side
System
Processor
i.MX 8M applications processors
NXP i.MX 8M Quad Cortex-A53, 1.5GHz (Commercial)
NXP i.MX 8M Dual Cortex-A53, 1.5GHz (Commercial)
NXP i.MX 8M Quad Cortex-A53, 1.3GHz (Industrial)
NXP i.MX 8M Dual Cortex-A53, 1.3GHz (Industrial)
Memory
2GB/4GB Memory Down
Single Channel LPDDR4 up to 3200 MHz
Graphics
Controller
GC7000 Lite
Feature
OpenVG 1.1, OGL ES 3.1, Vulkan, OCL 1.2 FP
VPU Decode: 4Kp60 HEVC H.265, VP9, 4Kp60 H.264
Display
1 x HDMI (default)
1 x LVDS
HDMI: resolution up to 4096x2160 @60Hz
LVDS: resolution up to 1920x1080 @60Hz
Single Display
HDMI or LVDS
Expansion
Interface
1 x M.2 B key 3042/2242 (USB 3.1 Gen1), Nano SIM slot support
1 x M.2 E key 2230 (PCIe x1/USB 2.0)
Audio
Audio Codec
SGTL5000
Ethernet
Controller
1 x AR8035 Ethernet (10/100/1000Mbps)
Rear I/O
Ethernet
1 x GbE (RJ-45)
Serial
1 x RS485
USB
2 x USB 3.1 Gen1
1 x Micro USB 2.0 (Download mode)
Display
1 x HDMI
Internal I/O
Serial
1 x RS232
1 x RS-232/422/485 (2 x 6 pin header, 1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x Backlight Power
Audio
1 x Audio (Line-out/Mic-in, 2.00mm pitch)
DIO
1 x 8-bit DIO (2 x 6 header, 1.27mm pitch)
SD
1 x Micro SD Slot
CANBus
1 x CANBus 2.0
I2C
1 x I2C (1.27mm pitch)
eMMC
Support eMMC 5.1 16GB on board (default)
Support up to 64GB (opt.)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Single 12V +/-10% DC
Connector
2-poles Terminal Block (default)
DC Jack (available upon request)
Consumption
Typical: Quad:12V @ 0.2A (2.4Watt)
Max.: Quad:12V @ 0.38A (4.56Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Yocto 2.5 on eMMC (default)
Android 9.0 (option)
Environment
Temperature
Operating: -5 to 65°C; -30 to 80 °C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
i.MX 8MQuad: 1,311,832 hrs @ 25°C; 637,427 hrs @ 45°C; 374,475 hrs @ 60°C; 189,510 hrs @ 80°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
2.5" SBC Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 M8M051 board
1 Terminal block for RS485 (COM3) 342-361021-000G
1 Heat spreader (Height: 11mm) A71-808334-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    M8M051-BCC-41QDC
    Part Number :
    770-M8M0511-000G
    Description :
    Quad core Processor, 4GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -5 to 65°C
  • Model Name :
    M8M051-BCC-21DLC
    Part Number :
    770-M8M0511-100G
    Description :
    Dual core Processor, 2GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -5 to 65°C
  • Model Name :
    M8M051-ETC-41QDI
    Part Number :
    770-M8M0511-200G
    Description :
    Quad core Processor, 4GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -30 to 80°C
  • Model Name :
    M8M051-ETC-21DLI
    Part Number :
    770-M8M0511-300G
    Description :
    Dual core Processor, 2GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -30 to 80°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    2 pole terminal to DC jack cable
    Part Number :
    A81-004013-000G
    Description :
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V, DC Jack
  • Item Name :
    Heat spreader
    Part Number :
    A71-008150-000G
    Description :
    Length: 19.4mm
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001084-016G
    Description :
    Length: 200mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022031-016G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015088-016G
    Description :
    Length: 250mm, COM2/4 port
  • Item Name :
    Debug console with cable
    Part Number :
    770-IMX8M1-000G
    Description :
    Length: 500mm
