CMS310-W480E/Q470E|Intel®|Industrial Motherboards|DFI

CMS310-W480E/Q470E
Home Industrial Motherboards microATX CMS310-W480E/Q470E
  • 10th Gen Intel® Core™ with Intel® W480E/Q470E chipset
  • 4 DDR4 DIMM up to 128GB
  • Supports triple independent displays: VGA, DP++, HDMI 1.4b
  • DP++ resolution up to 4096x2160 @ 60Hz, VGA resolution up to 1920x1200 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory), 4 SATA 3.0
  • Rich I/O: up to 4 Intel GbE, 4 COM, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
ECC Memory
Multiple Expansion
12V DC-in
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification
UKCA Certification

CMS310-W480E/Q470E Related Tags

#IoT#Intel#4K2K Display#PCIe x16#Windows#Linux#HDMI#VGA#Multiple Expansion#DDR4#RoHS Certification#UL Certification#CE Certification#FCC Certification#10th Gen Intel® Comet Lake Processor#UKCA Certification
microATX Board Front

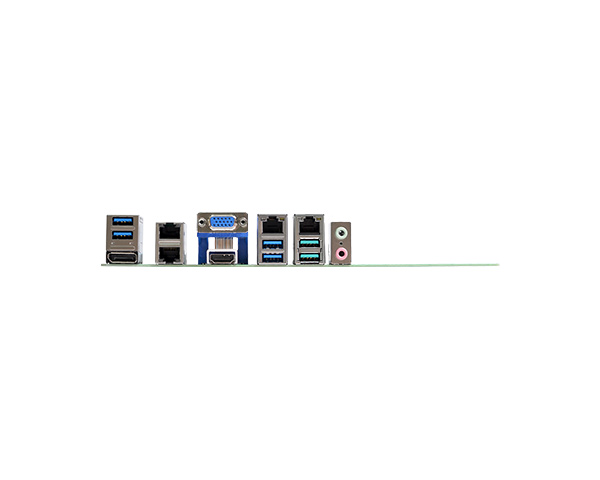

microATX Board I/O

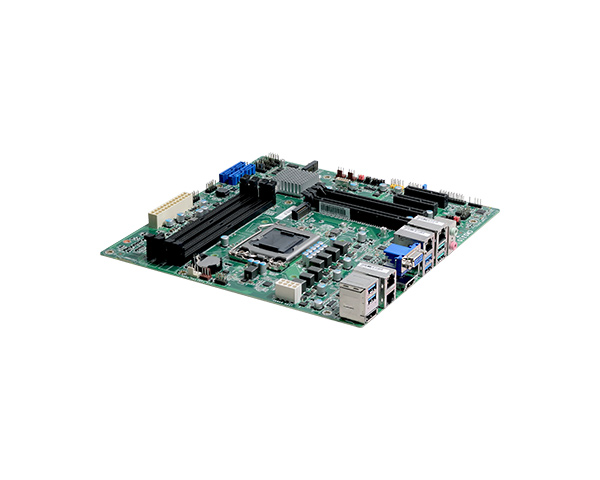

microATX Board Side
System
Processor
10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz; 95W (ECC support on W480E SKU only)
Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only)
Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only)
Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W (ECC support on W480E SKU only)
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on W480E SKU only)
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Not support on W480E SKU)
Chipset
Intel® W480E/Q470E Chipset
Memory
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666/2933 MHz (ECC support: W480E only)
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x DP++
1 x VGA
1 x HDMI 1.4b
DP++: resolution up to 4096x2106 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
HDMI resolution up to 4096x2160 @ 24Hz
Triple Displays
VGA + DP++ + HDMI
Expansion
Interface
2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 3)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® i219LM PCIe (10/100/1000Mbps) (only Xeon, Core i9/i7/i5 support iAMT)
1 x Intel® i210AT PCIe (10/100/1000Mbps)
2 x Intel® i210AT PCIe (10/100/1000Mbps) (opt. by request, MOQ required)
Rear I/O
Ethernet
2 x GbE (RJ-45) or
4 x GbE (RJ-45)
USB
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
Display
1 x DP++
1 x VGA
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (colay, opt. by request, MOQ required)
Internal I/O
Serial
2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
2 x RS-232
USB
2 x USB 3.2 Gen2
4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A)
Audio
1 x S/PDIF
1 x Front Audio Header
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 sec/min
Security
TPM
Infineon TPM 2.0 (Available Upon Request, MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-10900K: 3.3V @ 0.41A (1.35W); 5V @ 0.76A (3.8W); 12V @ 0.34A (4.08W)
Max.: i9-10900K:3.3V @ 0.46A (1.52W); 5V @ 1.61A (8.05W); 12V @ 13.97A (167.64W)
Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
487,616 hrs @ 25°C; 271,110 hrs @ 40°C ; 303,603 hrs @ 45°C ; 168,586 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
microATX form factor 244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 31.47mm, Bottom Side: 4.4mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA, UL
Packing List
Packing List
• 1 CMS310-W480E/Q470E motherboard
• 1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports) A81-015026-023G
• 1 Serial ATA data cable (W/LOCK, Length: 500mm) 332-553001-005G
• 1 I/O shield with 4 LAN/2 LAN A49-CMS310-000G / A49-CMS310-010G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CMS310-W480ENRM
    Part Number :
    770-CMS3103-000G
    Description :
    4 DIMM, 4 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-Q470ENRM
    Part Number :
    770-CMS3103-100G
    Description :
    4 DIMM, 4 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-W480ENRM
    Part Number :
    770-CMS3103-200G
    Description :
    4 DIMM, 2 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-Q470ENRM
    Part Number :
    770-CMS3103-300G
    Description :
    4 DIMM, 2 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-W480ENRM
    Part Number :
    770-CMS3103-400G
    Description :
    4 DIMM, 4 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, 1 TPM 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-Q470ENRM
    Part Number :
    770-CMS3103-500G
    Description :
    4 DIMM, 4 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, 1 TPM 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-W480ENRM
    Part Number :
    770-CMS3103-600G
    Description :
    4 DIMM, 2 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, 1 TPM 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CMS310-Q470ENRM
    Part Number :
    770-CMS3103-700G
    Description :
    4 DIMM, 2 LAN, 2 RS-232-422-485, 2 RS-232, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0, 1 TPM 2.0, Power: 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C

*

Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350/398mm
  • Item Name :
    USB3.1 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 350mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    A81-002128-017G
    Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution
    Part Number :
    A71-101107-000G
    A71-101158-000G
    761-103001-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
  • Item Name :
    PS2 KB/MS Cable
    Part Number :
    332-353016-009G
    Description :
    Length: 400mm
  • Item Name :
    EXT-RS232
    Part Number :
    770-EXTRS1-000G
    Description :
    4 ports RS-232 LPC module
  • Item Name :
    EXT-RS485
    Part Number :
    770-EXTRS1-100G
    Description :
    4 ports RS-485 LPC module
  • Item Name :
    USB 3.2 TYPE E TO USB 3.2 20P 90D cable
    Part Number :
    A81-001149-017G
    Description :
