CS620-H310｜Intel®｜Industrial Motherboards｜DFI

CS620-H310
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards ATX CS620-H310
  • 9th/8th Gen Intel® Core™ with Intel® H310
  • 2 DDR4 DIMM up to 64GB
  • Two independent displays: VGA + DVI-D / VGA + DP++ / DP++ + DVI-D
  • Multiple expansion: 1 PCIe x16 (Gen 3), 1 PCIe x4 Gen 2 (PCIe x1 signal), 4 PCI, 2 ISA
  • Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 33 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
Windows
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

CS620-H310 Related Tags

#8th Gen Intel® Core™ Processor #9th Gen Intel® Core™ Processor#IoT#Intel#4K2K Display#PCIe x16#Windows#DVI-I#DVI-D#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#Legacy ISA/PCI Expansion Port#Windows 7#UKCA Certification
CS620-H310 | 9th/8th Gen Intel Core | Coffee Lake | ATX | DFI
CS620-H310 | 9th/8th Gen Intel Core | Coffee Lake | ATX | DFI
CS620-H310 | 9th/8th Gen Intel Core | Coffee Lake | ATX | DFI

Related Products:

Select All - Clear
System
Processor
9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 3.8 GHz); 65W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, to 3.2 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 65W

8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
Chipset
Intel® H310 Chipset
Memory
Two 288-pin UDIMM up to 64GB (non-ECC support)
Dual Channel DDR4 2400/2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Dual Displays
VGA + DVI-D / VGA + DP++ / DP++ + DVI-D
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 Gen2 (PCIe x1 signal)
4 x PCI
2 x ISA
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219V Lan Phy (10/100/1000Mbps)

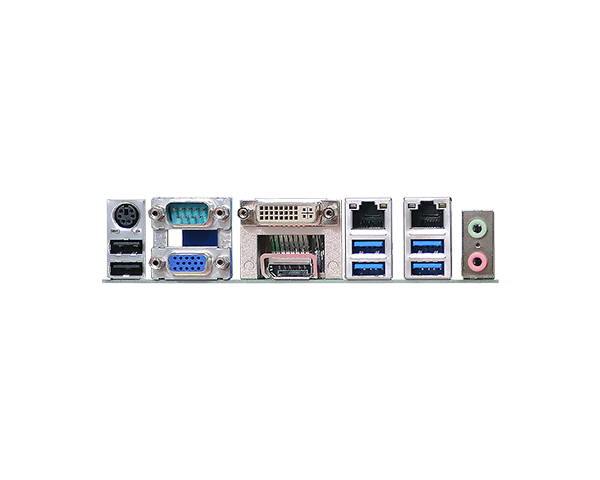

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/power) (DB-9)
USB
4 x USB 3.1 (Gen1)
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Mic-in, 1 x Line-out (colay Line-in as opt., MOQ required)
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB
4 x USB 2.0 (2.54mm pitch) (one header colay USB 3.0 vertical Type A as opt., MOQ required)
Audio
1 x S/PDIF
1 x Front Audio Header
SATA
4 x SATA 3.0 (up to 6Gb/s)
1 x mSATA shared with SATA (opt: PCIe x1 signal, MOQ required)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0 (opt., MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i7-8700K: 3.3V @ 0.27A (0.89W); 5V @ 0.49A (2.45W); 12V @ 0.38A (4.56W)
Max.: i7-8700K: 3.3V @ 0.33A (1.08W); 5V @ 1.2A (6W); 12V @ 9.69A (116.28W)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
DFI proprietary software package (For ISA SKU)
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
553,534 hrs @ 25°C; 313,827 hrs @ 45°C ; 196,350 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 32mm
Bottom Side: 5mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
1 CS620-H310 motherboard
1 COM port cables (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
1 I/O shield: A49-KD6000-000G
1 mSATA screw: A32-112016-041G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS620-H310C     Part Number :
     770-CS6201-000G     Description :
    2 DDR4 UDIMM, 2 LAN, 1 RS-232/422/485, 4 RS-232, 4 USB 3.1 Gen1, 6 USB 2.0, 2 ISA slots, 24-pin ATX, With Fan, -5 to 65°C
  • Model Name :
    CS620-H310C     Part Number :
     770-CS6201-100G     Description :
    2 DDR4 UDIMM, 2 LAN, 1 RS-232/422/485, 4 RS-232, 4 USB 3.1 Gen1, 6 USB 2.0, 24-pin ATX, With Fan, -5 to 65°C
  • Model Name :
    CS620-H310C     Part Number :
     770-CS6201-200G     Description :
    2 DDR4 UDIMM, 2 LAN, 1 RS-232/422/485, 4 RS-232, 4 USB 3.1 Gen1, 6 USB 2.0, 2 ISA slots, 1 TPM 2.0, 24-pin ATX, With Fan, -5 to 65°C
  • Model Name :
    CS620-H310C     Part Number :
     770-CS6201-300G     Description :
    2 DDR4 UDIMM, 2 LAN, 1 RS-232/422/485, 4 RS-232, 4 USB 3.1 Gen1, 6 USB 2.0, 1 TPM 2.0, 24-pin ATX, With Fan, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350mm
  • Item Name :
    D-SUB cable     Part Number :
     A81-015026-023G     Description :
    W/Bracket, Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable     Part Number :
     332-553001-005G     Description :
    W/Lock, Length: 500mm
  • Item Name :
    Thermal solution     Part Number :
     A71-101107-000G
    A71-101158-000G
    761-103001-000G     Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    DP to HDMI dongle     Part Number :
     612-D2H13M-000G     Description :
  • Item Name :
    LPC EXT-RS232 module     Part Number :
     770-EXTRS1-000G     Description :
    4 x RS232 ports
