EC500-CS
Home Industrial Computers Embedded Fanless PC EC500-CS
  • 8th/9th Generation Intel® Core™ with Intel® Q370/H310/C246
  • Supports DDR4 SODIMM up to 64GB
  • Three independent displays: 1 VGA + 2 HDMI/DP++ (auto detection)
  • Rich I/O connectivity: 2 GbE, 6 COM, 4 USB 3.1, 2 USB 2.0
  • 3 M.2 slots support NVMe
  • Support 5G Communication
  • Operating Temperature: -20 to 70°C
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Fanless Design
Windows
Linux
Multiple Expansion
Triple Independent Display
5G
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
BIS Certificaiton
EC500-CS Embedded Solution Powered by: DFI Proprietary Motherboard

EC500-CS Related Tags

#BIS Certification#IoT#Intel#5G#Fanless Design#Windows#Linux#HDMI#VGA#DDR4#RoHS Certification#CE Certification#FCC Certification#AGV#AMR#Material Handling#SCARA#Service Robot#UKCA Certification
Fanless Embedded PC Side

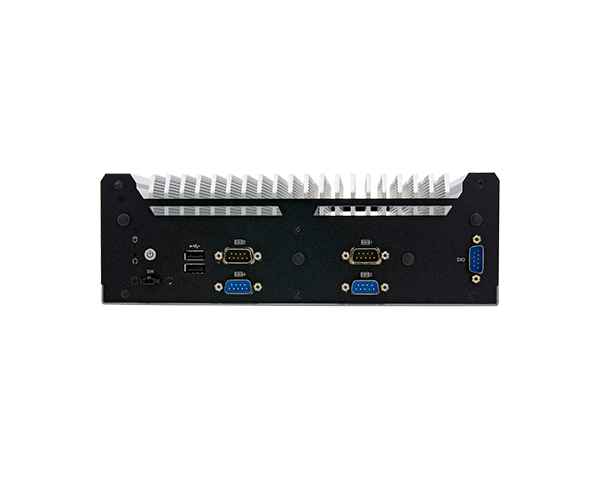

Fanless Embedded PC Front

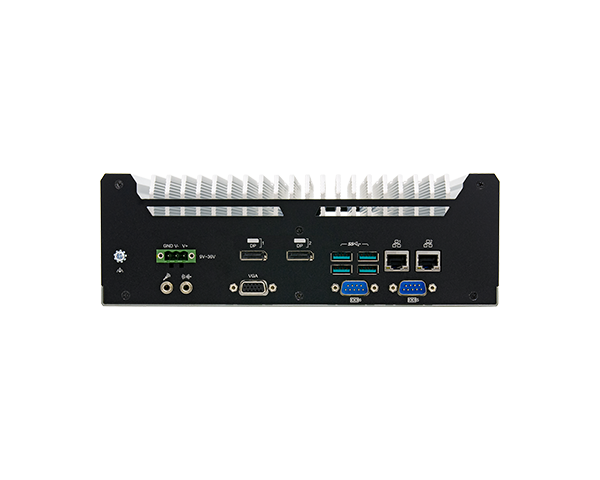

Fanless Embedded PC Back
System
Processor
8th/9th Generation Intel® Core™ Processors, LGA 1151
Intel® Core™ i7-8700T Processor, Hexa Core, 12M Cache, 2.4GHz (4GHz), 35W
Intel® Core™ i5-8500T Processor, Hexa Core, 9M Cache, 2.1GHz (3.5GHz), 35W
Intel® Core™ i3-8100T Processor, Quad Core, 6M Cache, 3.1GHz, 35W
Intel® Core™ i7-9700TE , Octa Cores, 12M Cache, up to 3.8 GHz, 35W
Intel® Core™ i5-9500TE , Hexa Cores, 9M Cache, up to 3.6 GHz), 35W
Intel® Core™ i3-9100TE, Quad Cores, 6M Cache, up to 3.2 GHz, 35W
Intel® Pentium® Processor G5400T, Dual Core, 4M Cache, 3.1GHz, 35W
Intel® Celeron® Processor G4900T, Dual Core, 2M Cache, 3.1GHz, 35W
Chipset
Intel® Q370/C246/H310 Chipset
Memory
Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2400/2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
Q370/C246:
1 x VGA
2 x HDMI/DP++ (auto detection)
H310:
1 x VGA
1 x HDMI/DP++ (auto detection)
Dual Displays/ Triple Displays
[Q370/C246] VGA + 2 x HDMI/DP++ (auto detect)
[H310] VGA + 1 x HDMI/DP++ (auto detect)
Storage
Internal
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1 (for Q370/C246)
Expansion
Interface
[Q370/C246] 1 x M.2 2230 E key (PCIe/USB 2.0)
[Q370/C246] 1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
[Q370/C246] 1 x M.2 3052 B key (PCIe/USB3.0)
[H310] 1 x M.2 2230 E key (PCIe/USB 2.0)
[H310] 1 x M.2 2280 M key (SATA)
[H310] 1 x M.2 3052 B key (PCIe)
Ethernet
Controller
[Q370/C246] 1 x Intel® I211AT PCIe (10/100/1000Mbps)
[Q370/C246] 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
[H310]1 x Intel® I211AT PCIe (10/100/1000Mbps)
[H310]1 x Intel® I219V PCIe (10/100/1000Mbps)
LED
Indicators
1 x Status LED
1 x HDD LED
Front I/O
Serial
4 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
DIO
8 bit (DB-9)
Buttons
1 x Power Button
1 x Reset Button
Antenna
4 x Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS232 (DB-9)
USB
4 x USB 3.1 (type A)
Display
[Q370/C246] 1 x VGA
[Q370/C246] 2 x HDMI/DP++ (auto detect)
[H310] 1 x VGA
[H310] 1 x HDMI/DP++ (auto detect)
Audio
1 x Line-out
1 x Mic-in
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
Wide Range 9~36V
Connector
3-pole Terminal Block
3-pin Power Extension Switch Connector
OS Support
OS Support
Windows 10 IoT Enterprise 64 Bit
Linux (available upon request)
Environment
Operating Temperature
-20 to 70°C (SSD or mSATA)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall Mount
Dimensions (W x H x D)
255.3 x 85 x 224mm
Weight
4.15 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, RoHS, UKCA, BIS
Packing List
Packing List
1 EC500-CS system unit
1 M.2 slot & Mini-PCIe slot screws
1 terminal block 3 pole for DC input
1 cable with 2 wire stripped and tinned to DC jack
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC500- CS4061-Q
    Part Number :
    750-EC5003-000G
    Description :
    EC500-CS4061-Q:Fanless, CS263, Q370, CPU i5-8500T, 6 COM, 6 USB, 1 VGA, 2 HDMI/DP, 2 LAN, 1 Line-out, 1 Mic-in, 8 bits DIO, DC9~36V, F/G SYSTEM RoHS
  • Model Name :
    EC500- CS4061-H
    Part Number :
    750-EC5003-100G
    Description :
    EC500-CS4061-H:Fanless, CS263, H310, CPU i5-8500T, 6 COM, 6 USB, 1 VGA, 1 HDMI/DP, 2 LAN, 1 Line-out, 1 Mic-in, 8 bits DIO, DC9~36V, F/G SYSTEM RoHS
  • Model Name :
    EC500- CS4061-C
    Part Number :
    750-EC5003-200G
    Description :
    EC500-CS4061-C:Fanless, CS263, C246, CPU i5-8500T, 6 COM, 6 USB, 1 VGA, 2 HDMI/DP, 2 LAN, 1 Line-out, 1 Mic-in, 8 bits DIO, DC9~36V, F/G SYSTEM RoHS

Strong Candidate For AIoT

DFI’s EC500-CS series with 8th/9th Generation Intel® Core™ processors and Intel®Q370 or H310 chipset provides high computing performance. With the modular-concept design and unlimited configurations, customized I/O and user own-made PCIe are all available, easily meeting custom specification requirements. Moreover, EC500-CS series are available for the Movidius AI accelerator card to satisfy high-performance AIoT applications including smart factory automation, machine vision, and AIO system.

Real-time M2M Communication Based on 5G

Deep learning requires a huge amount of image and data input to achieve smart automation and optimization, and the support for 5G endows EC500-CS series with a pair of wings to connect with massive devices and proceed with immediate data transmission and analysis. The multi-gigabit speeds and ultra-low latency of 5G strengthen the synergy of devices and make communications among a large scale of devices ever seamlessly and efficiently to respond in real-time to the dynamics at the edge.

The Least Effort for Monitoring

The onboard unique display port can automatically detect HDMI also DP++. With this convenient design, adapters become unnecessary and it also avoids unstable connections. Offering up to three independent displays, one system can easily fulfill industrial measurement and inspection.

Tolerated in Harsh Place

Operating stably under an extended temperature range from -20°C to 70°C, the EC500-CS series can survive in severe weather and harsh industrial environment.

Enhanced Security Protection

For defending equipment from external threats of security awareness, DFI’s motherboards are available with the advanced feature of iAMT 12.0 for remote management and repair systems. Aside from iAMT 12.0, EC500-CS series are supported with TPM 2.0 for protecting confidential data and improving system integrations.

100% In-house Boards

From design, development, to production, DFI’s motherboards follow the 100% in-house production principle, guaranteeing manufacture quality and information confidentiality. Developed on the basis of these boards and integrated into durable chassis, our embedded systems are also ensured by turnkey services and timely post-sales assistance.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
