  • Intel Atom® C3000 Series
  • Rich I/O: 1 Intel GbE, 4 10Gbase-KR, 2 USB 3.0, 4 USB 2.0
  • Multiple expansion: 2 PCIe x 8, 2 SATA 3.0
  • Support BMC features
  • Dual channel DDR4 2400MHz SODIMM up to 64GB
  • 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
Fanless Design
Compact Size
4K2K Display
Multiple Expansion
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

DV970 Related Tags

#Intel#5G#Fanless Design#Compact Size#4K2K Display#Windows#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification

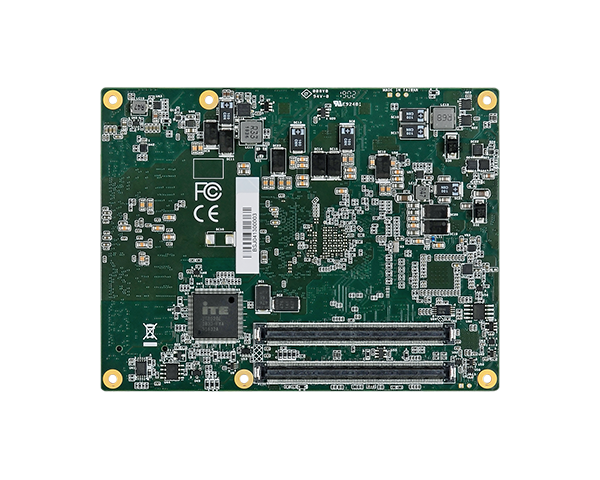

COM Express Type 7, DV970
COM Express Type 7, DV970
COM Express Type 7, DV970

Related Products:

Select All - Clear
System
Processor
Intel Atom® Processor C3000 Series, BGA1310
Intel Atom® C3958 Processor, 16 Cores, 16M Cache, 2.0GHz, 31W
Intel Atom® C3808 Processor, 12 Cores, 12M Cache, 2.0GHz, 25W
Intel Atom® C3708 Processor, 8 Cores, 16M Cache, 1.7GHz, 17W
Memory
Two 260-pin ECC SODIMM up to 32GB
Dual Channel DDR4 2400MHz
(Memory max speed depends on CPU SKU)
BIOS
Insyde SPI 128Mbit
Expansion
Interface
Default:
B1: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B2: 1 x PCIe x2 (Gen 3) + 1 x PCIe x1 (Gen 2) or 2 x PCIe x1 (Lane 8 Gen 3, Lane 12 Gen 2)
B3: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
Option 1:
B1: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B3: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B4: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Ethernet
Controller
PHY for X557 or CS4227/CS4223 and Controller for Intel® I210AT/Intel® I210IT
2 x Independent 10GbE Media Access Controller (Sku dependent)
Supports up to Two 10GBASE-KR Interfaces and Max up to Four 10GbE MAC Ports
Supports Intel® X557-AT/AT2/AT4 10GbE PHY
Supports Inphi CS4227 (2 port)/CS4223 (4 port)
(maximum bandwidth is 20Gb when 4 ports of 10G interface active at the same time)
1 x Intel® I210AT (10/100/1000Mbps) (normal temp.) or
1 x Intel® I210IT (10/100/1000Mbps) (wide temp.)
I/O
USB
2 x USB 3.0
4 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/10
DIO
1 x 8-bit DIO (4 in, 4 out)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 15 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
Typical: 12V @ 1.24A (14.88Watt)
Max.: 12V @ 2.26A (27.12Watt)
OS Support
OS Support
Windows Server 2012
Windows Server 2016
Yocto Project v1.8/v2.0
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
2180429 hrs @ 25°C; 1241904 hrs @ 45°C; 802692 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Basic
95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R3.0, Type 7
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 DV970 board
1 Cooler (Height: 47.80 mm)：Standard: A71-108101-000G, Wide Temp: A71-108101-010G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    DV970-TS-C3808     Part Number :
     770-DV9703-000G     Description :
    Cooler, C3808, 1 LAN, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, -40 to 85°C
  • Model Name :
    DV970-BS-C3958     Part Number :
     770-DV9703-100G     Description :
    Cooler, C3958, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    DV970-BS-C3958     Part Number :
     770-DV9703-200G     Description :
    Cooler, C3958, 1 LAN, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    DV970-TS-C3708     Part Number :
     770-DV9703-300G     Description :
    Cooler, C3708, 1 LAN, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, -40 to 85°C

*

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader (Height: 11mm)     Part Number :
     A71-808317-000G     Description :
  • Item Name :
    COM333-I carrier board kit     Part Number :
     770-CM3331-000G     Description :

“DV970” Achieves Data Transmission in a Short Moment

For the purpose of boosting up the speed of internet traffic and cloud-computing applications that require fast response, DFI gladly introduces you to the newest COM Express Type 7 module”DV970”. It provides not only enhanced computing performance and low-power consumption, but also versatile expansion capability. The DV970 offers 4 ports of 10GbE-KR Ethernet to strengthen connection between server and equipment. Moreover, DV970 is capable for a 24/7 stable operation in extended-temp environment. DV970 is your ideal solution for entry-level servers, NAS applications, and emerging appliances.

Ultra-High Speed Data Transmission Performance

Most of the existing modules are equipped with up to 1G Ethernet. However, the maximum speed of 1G Ethernet cannot fulfill the requirement of massive data transmission.“DV970” is based on the COM Express Type 7 with 4 10GBase-KR Ethernet, and perfectly solves this problem. 10GBit/s of high-speed data transmission is ten times the amount of 1G Ethernet, enabling it to boost up the speed of internet traffic and cloud-computing applications that require fast response.

Server-Grade Processor Provides Incredible Performance but Less Power Consumption

“DV970” is designed for cost-efficient servers, and is equipped with the latest Intel Atom® C3000 series (codename: Denverton). Under 14nm goldmont architecture, it delivers high computing performance but with a low 8.5W power consumption and rich expansion capabilities.

Stable Performance Under Extreme Environments

To satisfy the demands of industries and autonomous applications under harsh environments, DV970 is able to maintain 24/7 operation under extended -40°C to +85°C operating temperature range. It is an ideal solution for critical environments.

Versatile Expansion Capabilities to Realize Your Own Server Solution

“DV970” offers rich expansion capabilities with a total of 16 PCIe 3.0 to enhance server communication throughout and increase storage space. PCIe 3.0 is capable of connecting various controllers, sensors, and co-processors.Moreover, the optimized PCIe supports new SSD interface “NVMe”, which delivers future-proof hyper write/read speed.

Baseboard Management Controller (BMC) Enables You to Monitor Your Device in Real Time

With Network Controller Sideband Interface (NC-SI) implanted in “DV970”, BMC can be equipped on the carrier board to let administrators take immediate corrective action by using remote control.BMC function saves the operating cost of the network and ensures that the equipment is under your control 24/7.

DDR4 ECC Memory Stabilizes Your Equipment

Stable and non-stop operations are critical for both micro servers, workstations, and some mission-critical applications. These solutions cannot tolerate any error. To improve a more reliable performance, “DV970” supports DDR4 ECC SO-DIMM memory module of up to 32G. This module, featuring ECC function, can detect and correct several kinds of internal data corruption while handling a large amount of data.

Unstoppable Driving Force in IoT Generation

Due to its versatile capacities, “DV970” is your ideal choice and is especially suitable for your cost-efficient network equipment, such as factory gateway, NAS applications, and emerging appliances. DFI utilized unique technology to help our clients conquer every battle in IoT generation.

Related Materials

Related Products

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
