CS350-Q370
Home Industrial Motherboards microATX CS350-Q370
  • 8th/9th Gen Intel® Core™ with Intel® Q370
  • Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • 4 DDR4 DIMM up to 128GB
  • Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
  • DP++ resolution up to 4096x2160 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz, HDMI 1.4b resolution up to 4096x2160@ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 1 M.2 E key, 1 M.2 M key (support Optane Memory)
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
DVI-D
DP
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

CS350-Q370 Related Tags

#IoT#Intel#4K2K Display#PCIe x16#Windows#HDMI#DVI-I#DVI-D#DP#DDR4#RoHS Certification
microATX Board Front

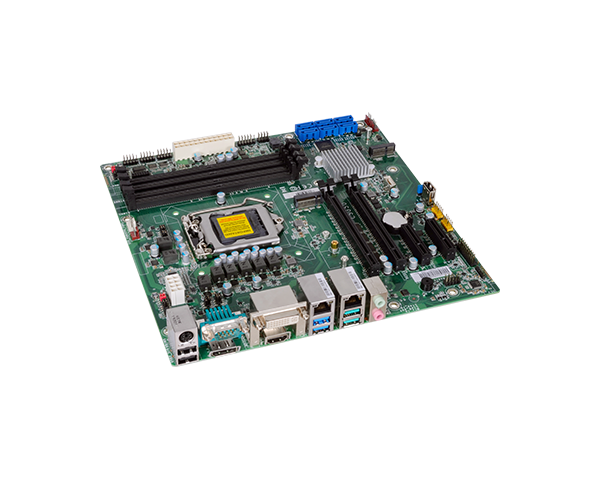

microATX Board Side

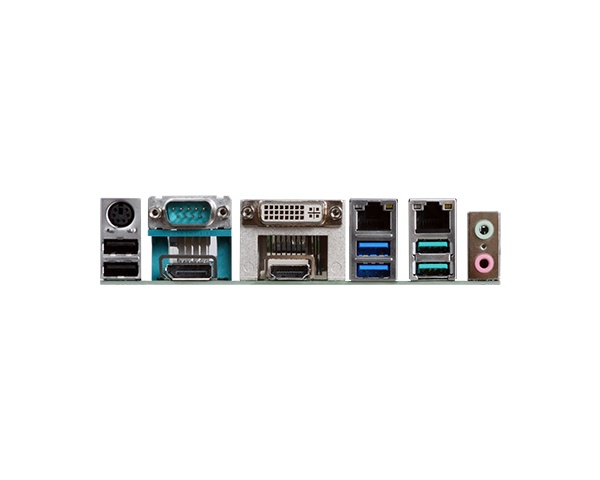

microATX Board I/O
System
Processor
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W

9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
Chipset
Intel® Q370 Chipset
Memory
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz (non ECC support)
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x DP++, DP++: resolution up to 4096x2106 @ 60Hz
1 x HDMI 1.4b: resolution up to 4096x2160@ 24Hz
1 x DVI-I (DVI-D signal), DVI-D: resolution up to 1920x1200 @ 60Hz
Triple Displays
DVI-D + DP++ + HDMI 1.4b
Expansion
Interface
2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 3)
1 x M.2 2230 E key (PCIe x1/USB2.0/intel CNVi support)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (only Core i7/i5 supports iAMT)
1 x Intel® i211AT PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
PS/2 1 x PS/2 (mini-DIN-6)
USB
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
2 x USB 2.0
Display
1 x DVI-I (DVI-D signal)
1 x DP++
1 x HDMI 1.4b
Audio
1 x Line-out
1 x Line-in (colay, opt. by request, MOQ required)
1 x Mic-in
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
2 x RS-232
USB
2 x USB 3.1 Gen 2
4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A) (opt. by request, MOQ required)
Audio
1 x S/PDIF, 1 x Front Audio Header
SATA
6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
Output & Interval System Reset, Programmable via Software from 1 to 255 sec/min
Security
TPM
Infineon TPM 2.0 (Available Upon Request, MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i7-8700K: 3.3V @ 0.16A (0.53Watt); 5V @ 0.44A (2.2Watt); 12V @ 0.55A (6.6Watt)
Max.: i7-8700K:3.3V @ 0.35A (1.16Watt); 5V @ 1.34A (6.7Watt); 12V @ 12.54A (150.48Watt)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Ubuntu 18.04
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 90% RH Storage: 5 to 90% RH
MTBF
548,936 hrs @ 25°C; 308,161 hrs @ 45°C ; 191,020 hrs @ 60°C ; 162,350 hrs @ 65°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
microATX form factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 31.51mm
Bottom Side: 4.4mm
Packing List
Packing List
CS350-Q370 motherboard
1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G
1 Serial ATA data cable (W/LOCK, Length: 500mm): 332-553001-005G
1 I/O shield: A49-CS3501-000G
M.2 Standoff: A33-725019-090G
M.2 Screw: A32-112016-041G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS350-Q370NRM
    Part Number :
    770-CS3501-100G
    Description :
    4 DIMM, 2 GbE, 4 COM, 4 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 6 USB 2.0, 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
  • Model Name :
    CS350-Q370NRM
    Part Number :
    770-CS3501-300G
    Description :
    4 DIMM, 2 GbE, 4 COM, 4 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 6 USB 2.0, 1 TPM 2.0, 24-pin ATX/8-pin ATX 12V, Thermal Active, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350mm
  • Item Name :
    USB3.1 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm, W/LOCK
  • Item Name :
    Thermal solution
    Part Number :
    A71-101107-000G
    A71-101158-000G
    761-103001-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :

Based on 8th Gen Intel® Core™ Processors
