EC70A-KU|Intel®|Industrial Computers|DFI

EC70A-KU
Home Industrial Computers Ultra Compact Fanless PC EC70A-KU
  • Compact and Fanless Embedded System
  • 4GB/8GB DDR4 memory onboard
  • 1 x 2.5" SATA 3.0 drive bay (for thickness 7mm only)
  • Supports 2 Mini PCIe for mSATA & wireless application
  • Rich I/O ports: 2 Intel GbE, 6 COM, 4 USB 3.0, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Wide-temp: -20~60°C
Fanless Design
Compact Size
4K2K Display
Triple Independent Display
Ubuntu IoT Hardware Certification Partner Program
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
EC70A-KU Embedded Solution Powered by: DFI Proprietary Motherboard

EC70A-KU Related Tags

#Ubuntu Certified#IoT#Intel#Compact PC#Mini PCIe#Fanless Design#Compact Size#4K2K Display#Windows#HDMI#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#AGV#AMR#UKCA Certification
EC70K-SU | 7th Gen Intel Core | Kaby Lake | Fanless Embedded System | DFI
EC70K-SU | 7th Gen Intel Core | Kaby Lake | Fanless Embedded System | DFI
EC70K-SU | 7th Gen Intel Core | Kaby Lake | Fanless Embedded System | DFI
System
Processor
7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Memory
4GB/8GB Memory Onboard
Dual Channel DDR4 2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x HDMI
1 x HDMI/DP++ (auto detect)
1 x VGA
VGA: resolution up to 2560x1600 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
Triple Displays
VGA & HDMI & HDMI/DP++
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay (for thickness 7mm only)
1 x mSATA mini
1 x M.2 2280 B Key (SATA)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe+USB2.0)
1 x Half-size Mini PCIe (PCIe+USB2.0+SATA, PCIe/SATA is selected by jumper setting, USB2.0+SATA by default)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Status LED
1 x HDD LED
Front I/O
Serial
2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS-232 (DB-9, COM 4, support 8-bit DIO by jumper setting)
1 x RS-232 (DB-9, COM 6)
USB
1 x USB 2.0
Display
1 x VGA
1 x HDMI/DP++ (auto detection)
Buttons
1 x Power Button
1 x Reset Button

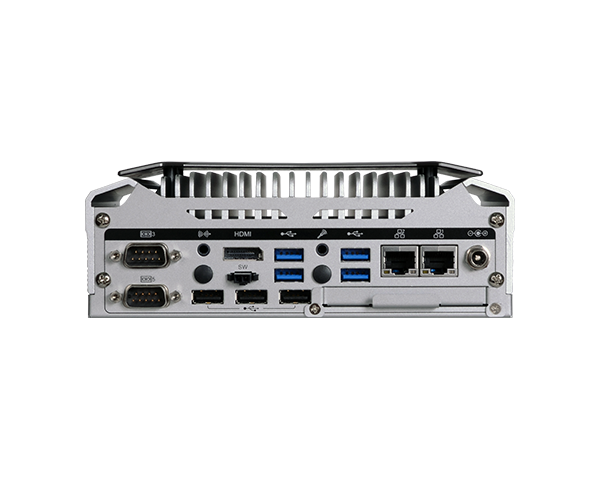

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232 (DB-9, COM 3 + COM 5)
USB
4 x USB 3.0
3 x USB 2.0
Display
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 15~36V
Connector
DC Jack
OS Support
OS Support
Windows 10
Windows 10 IoT Enterprise 64 Bit
Ubuntu
Environment
Operating Temperature
-20 to 60°C (wide-temp SSD or mSATA-mini)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA Mount
Dimensions (W x H x D)
181.6mm x 67 mm x 118.4mm
Weight
1.65kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
w/mSATA & SSD Condition:- Random: 3Grms @ 5~500 Hz, IEC60068-2-64
Certifications
CE, FCC Class A, RoHS, UKCA
Packing List
Packing List
1 EC70A-KU system unit
Mounting screws for SATA drive
Mounting screws for Mini PCIe module
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC70A-KU
    Part Number :
    750-EC70A1-000G
    Description :
    Fanless, Intel Core i3-7100U, 2 HDMI, 1 VGA, 2 LAN, 6 COM, 4 USB 3.0, 4 USB 2.0, 1 Line out, 1 Mic in, 4GB DDR4 onboard, F/G SYSTEM RoHS
  • Model Name :
    EC70A-KU
    Part Number :
    750-EC70A1-100G
    Description :
    Fanless, Intel Core i3-7100U, 2 HDMI, 1 VGA, 2 LAN, 6 COM, 4 USB 3.0, 4 USB 2.0, 1 Line out, 1 Mic in, 8GB DDR4 onboard, F/G SYSTEM RoHS
  • Model Name :
    EC70A-KU
    Part Number :
    750-EC70A1-200G
    Description :
    Fanless, Intel Core i5-7300U, 2 HDMI, 1 VGA, 2 LAN, 6 COM, 4 USB 3.0, 4 USB 2.0, 1 Line out, 1 Mic in, 4GB DDR4 onboard, F/G SYSTEM RoHS
  • Model Name :
    EC70A-KU
    Part Number :
    750-EC70A1-300G
    Description :
    Fanless, Intel Core i5-7300U, 2 HDMI, 1 VGA, 2 LAN, 6 COM, 4 USB 3.0, 4 USB 2.0, 1 Line out, 1 Mic in, 8GB DDR4 onboard, F/G SYSTEM RoHS
  • Model Name :
    EC70A-KU
    Part Number :
    750-EC70A1-400G
    Description :
    Fanless, Intel Core i7-7600U, 2 HDMI, 1 VGA, 2 LAN, 6 COM, 4 USB 3.0, 4 USB 2.0, 1 Line out, 1 Mic in, 4GB DDR4 onboard, F/G SYSTEM RoHS
  • Model Name :
    EC70A-KU
    Part Number :
    750-EC70A1-500G
    Description :
    Fanless, Intel Core i7-7600U, 2 HDMI, 1 VGA, 2 LAN, 6 COM, 4 USB 3.0, 4 USB 2.0, 1 Line out, 1 Mic in, 8GB DDR4 onboard, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Storage
    Part Number :
    785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G
    785-S25064G
    785-S25032G
    785-MW128GMH
    785-MW64GMH
    785-MW32GMH
    Description :
    2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 64GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 32GB MLC, -40 to 85°C, RoHS
    mSATA Card, 128GB MLC, -40 to 85°C, RoHS
    mSATA Card, 64GB MLC, -40 to 85°C, RoHS
    mSATA Card, 32GB MLC, -40 to 85°C, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    785-WIFIKT
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-110003-100G
    671-106011-000G
    Description :
    120W, 19V/6.31A, Level 6, RoHS
    60W, 19V/3.15A, Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC8000-000G
    Description :
    EC700/EC800/EC70A Wall Mount Kit, RoHS
  • Item Name :
    VESA Mount
    Part Number :
    761-EC7000-100G
    Description :
    EC700/EC70A VESA Mount Kit, RoHS
  • Item Name :
    DIN Rail Mount
    Part Number :
    761-EC70A0-000G
    Description :
    EC70A DIN Rail Mount Kit, RoHS
  • Item Name :
    DC Cord
    Part Number :
    A81-004031-007G
    Description :
    UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm
