EC531-KH/EC532-KH
Home Industrial Computers Embedded Fanless PC EC531-KH/EC532-KH
  • Supports DDR4 SODIMM up to 32GB
  • Three independent displays: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP
  • Rugged and Fanless Embedded System
  • Rich I/O connectivity: 2 GbE, 8 COM, 8 USB 3.0, 2 USB 2.0, 1 M.2 NVMe slots
  • 3 expension slots: PCIe + PCI
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Wide Voltage: 9~36V DC-in
Fanless Design
PCIe x16
Multiple Expansion
Wide-temp: -40~70°C
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
Azure Certification
EC531-KH/EC532-KH Embedded Solution Powered by: DFI Proprietary Motherboard

EC531-KH/EC532-KH Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#PCIe x16#Windows#Linux#HDMI#DVI-D#VGA#DP#Multiple Expansion#DDR4#CE Certification#FCC Certification#Azure Certification#Material Handling#SCARA#Legacy ISA/PCI Expansion Port
Fanless Embedded PC Side

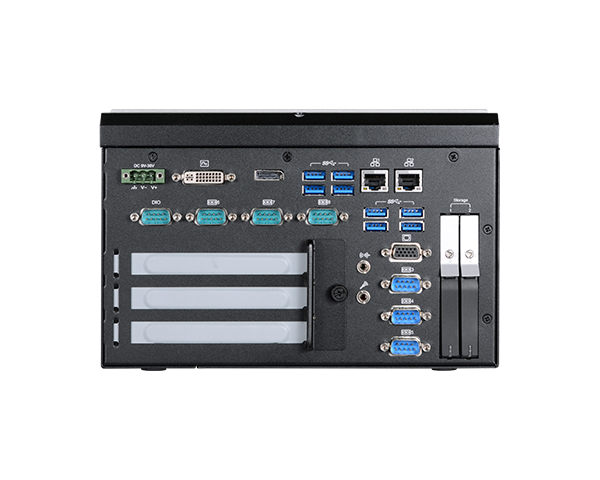

Fanless Embedded PC Back

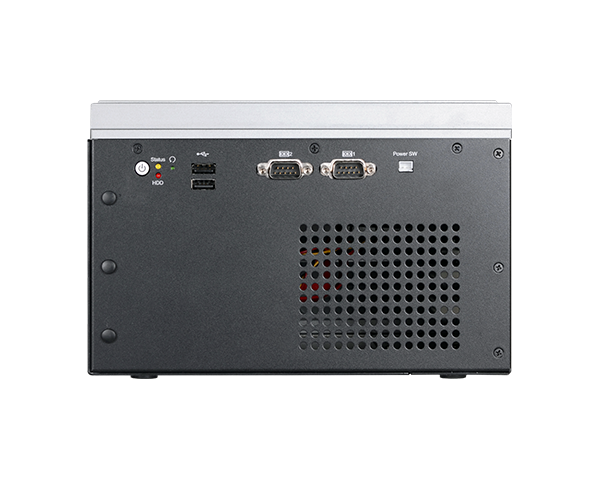

Fanless Embedded PC Front
System
Processor
7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
Chipset
Intel® CM238 Chipset
Intel® QM175 Chipset
Memory
Two 260-pin SODIMM up to 32GB (CM238 supports ECC)
Dual Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + HDMI/DVI (DVI-D signal) + HDMI/DP
Storage
Internal
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1
Expansion
Interface
1 x PCIe x16 + 2 x PCI (EC531-KH only) or 2 x PCIe x16 (1 x 1 and 1 x 8 signal) + 1 x PCI (EC532-KH only)
1 x M.2 2280 M key (PCIe x4 NVMe, Intel optane memory support)
1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)
1 x Full/Half-size Mini PCIe with micro SIM socket (USB)
Ethernet
Controller
1 x Intel® I211IT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Serial
2 x RS-232/422/485 (DB-9) (RS-232 with power)
USB
2 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
3 x Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
6 x RS-232/422/485 (DB-9)
USB
8 x USB 3.0 (type A)
Display
1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP
Audio
1 x Line-out
1 x Mic-in (available upon request)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (optional)
Power
Type
Wide Range 9~36V
Connector
3-pole Terminal Block
2-pin Power Extension Switch Connector
OS Support
OS Support
Windows 10 IoT Enterprise 64 Bit
Linux (available upon request)
Environment
Operating Temperature
0 to 50°C (HDD)
-20 to 60°C (SSD)
-40 to 70°C (optional)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall Mount
Dimensions (W x H x D)
235 x 153.8 x 222.1mm
Weight
4.8kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, Microsoft Azure
Packing List
Packing List
1 EC531/532-KH system unit
1 Extend power switch cable
1 terminal block 3pole for DC input
1 cable with 2 wire stripped and tinned to DC jack
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC530-KH, EC531-KH
    Part Number :
    750-EC5312-000G
    Description :
    EC531-KH Fanless, KH263-CM238, E3-1535M v6, 4 COM, 16 DIO, 8 USB, 6 LAN, 1 PCI, 2 PCIe, DC 9~36V input, F/G SYSTEM RoHS
  • Model Name :
    EC530-KH, EC531-KH
    Part Number :
    750-EC5312-100G
    Description :
    EC531-KH Fanless, KH263-QM175, I5-7440EQ, 8 COM, 16 DIO, 10 USB, 2 LAN, 2 PCI, 1 PCIe, DC 9~36V input, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    M.2 SSD
    Part Number :
    785-M2PCIE032G
    785-M2PCIE064G
    785-M2PCIE128G
    785-M2PCIE256G
    Description :
    32GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
    64GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
    128GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
    256GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
  • Item Name :
    2.5" SSD
    Part Number :
    785-S25032G
    785-S25064G
    785-S25128G
    785-S25256G
    785-S25512G
    Description :
    32GB, 2.5" SSD, SATA3, MLC, RoHS
    64GB, 2.5" SSD, SATA3, MLC, RoHS
    128GB, 2.5" SSD, SATA3, MLC, RoHS
    256GB, 2.5" SSD, SATA3, MLC, RoHS
    512GB, 2.5" SSD, SATA3, MLC, RoHS
  • Item Name :
    Wi-Fi/BT Kit
    Part Number :
    612-WPEQ26-000G
    Description :
    MINI-CARD 802.11ac/a/b/g/n+BT, 2T2R, WPEQ-261ACN(BT), SPARKLAN
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH/UK), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-110002-100G
    671-110003-100G
    671-112005-100G
    671-116003-000G
    Description :
    100W, 12V, Level 6, RoHS
    120W, 19V, Level 6, RoHS
    120W, 24V, Level 6, Wide Temp, RoHS
    160W, 19V, Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC5410-000G
    Description :
    Wall Mount Kit, RoHS
  • Item Name :
    SO-DIMM
    Part Number :
    138-540002-106G
    138-580004-102G
    138-5G0163-102G
    138-580004-104G
    138-5G0163-103G
    138-540002-107G
    138-580004-103G
    785-RSOD44G
    785-RSOD48G
    785-RSOD416G
    785-RSOD432G
    Description :
    4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V
    16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V, wide temp.
    16GB DDR4 2666Mhz SO-DIMM 2Rx8 IND 1Gx8 CL19 1.2V, wide temp.
    4GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 512Mx8 CL19 1.2V
    8GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 1Gx8 CL19 1.2V
    SODIMM, DDR4 Module, 4GB, RoHS
    SODIMM, DDR4 Module, 8GB, RoHS
    SODIMM, DDR4 Module, 16GB, RoHS
    SODIMM, DDR4 Module, 32GB, RoHS
