KS057R-FS｜NXP｜Industrial Panel PCs & Displays｜DFI

KS057R-FS
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS057R-FS
  • 5.7" 640x480 TFT LCD panel with touch screen
  • NXP Cortex-A9 i.MX6 DualLite 1.0 GHz
  • Support Wall / Din-rail Mounting
  • PLC Polling Device
  • 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)

Status : Launched QUOTE NOW

Low Power Consumption
Wide-temp: -20~60°C
Fanless Design
Compact Size
Linux
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification
UKCA Certification
KS057R-FS Embedded Solution Powered by:
FS053

FS053

Pico-ITX Front

2.5" Pico-ITX, NXP i.MX6 Series, 1 DDR3L SDRAM memory down, 1 Mini PCIe, 1 SD, 1 HDMI, 1 LVDS

KS057R-FS Related Tags

#NXP i.MX6 Series#NXP#ARM#Mini PCIe#Fanless Design#Compact Size#Android#HDMI#Low Power Consumption#CE Certification#FCC Certification

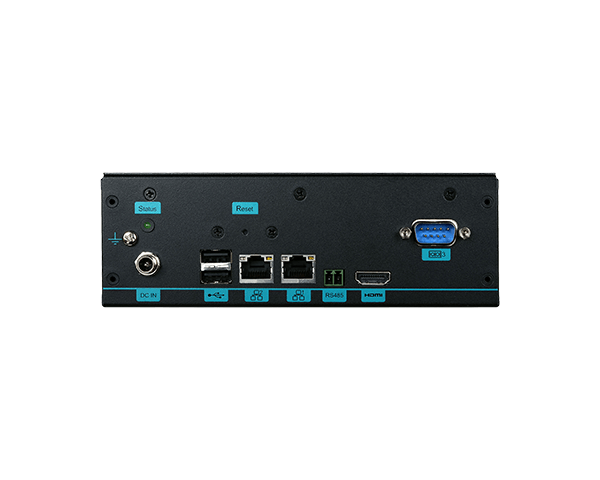

KS057R-FS | NXP i.MX6 | Industrial Panel PC | DFI
KS057R-FS | NXP i.MX6 | Industrial Panel PC | DFI

Related Products:

Select All - Clear
System
Processor
NXP i.MX6 Cortex-A9 DualLite, 1.0 GHz
Memory
1GB SDRAM Memory Down
Flash
4MB NOR Flash
Display and Touch Screen
Display
5.7” 640x480 TFT LCD Panel with Resistive Touch Screen
Brightness
400 cd/m²
Contrast
800:1
Backlight Lifetime
50,000 hours
Graphics
Display
1 x HDMI
HDMI 1.4: resolution up to 1920x1080 @ 60Hz
Single/Dual Displays
Yocto: HDMI or LVDS (default)
Android: HDMI(640 x 480) + LVDS (available upon request)
Storage
External
1 x Micro SD Slot
eMMC
8GB eMMC onboard
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
Ethernet
Controller
1 x ATHEROS AR8033 Ethernet Controller (10/100/1000Mbps)
1 x LAN7500 Ethernet Controller (10/100/1000Mbps)
I/O
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
Serial
1 x RS-485
1 x RS-232
USB
2 x USB 2.0 (type A)
Display
1 x HDMI
Buttons
1 x Reset Switch
Antennas
2 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V DC
Connector
DC Jack
OS Support
OS Support
Yocto 1.8 (default preloaded on eMMC)
Android 5.1.1 (available upon request)
Environment
Operating Temperature
-20 to 60°C
With Extended Temperature Peripherals; Ambient with Air Flow
Storage Temperature
-30 to 80°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Dimensions
170.2mm x 121mm x 57.5mm
Construction
Sheet Metal
IP Rating
IP20 Front Panel Protection
Mounting
Wall, Din-rail
Weight
1.05kg
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A, UKCA
Packing List
Packing List
1 KS057R-FS Touch Panel PC
1 Poron foam
2 Wall Mount Bracket
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS057R-FSD12-MX6-V2     Part Number :
     750-KS0570-100G     Description :
    5.7" Panel PC, i.MX6, 1GB Memory, 8GB eMMC, Resistive Touch
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wi-Fi     Part Number :
     761-AP1235-000G     Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V/5A, Level 6, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
