SU256-SCM
Home Industrial Motherboards 4" SBC SU256-SCM

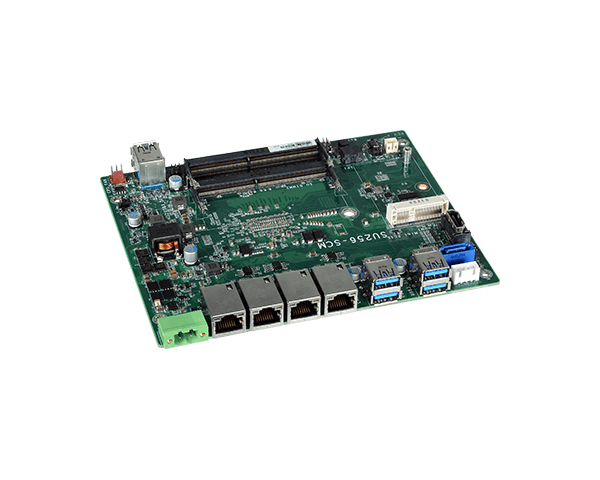

  • 6th Gen Intel® Core™ 4" SBC
  • Dual Channel DDR4 2400MHz up to 8GB
  • Single Display: HDMI resolution up to 4096x2304 @ 60Hz
  • Multiple Expansion: 1 mini PCIe
  • Rich I/O: 4 Intel GbE, 6 USB 3.0
  • 15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

COM ESD Protection: Air Gap ±15kv
Wide-temp: -20~70°C
Fanless Design
4K2K Display
HDMI
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

SU256-SCM Related Tags

#Intel#Mini PCIe#Fanless Design#4K2K Display#Windows#HDMI#DDR4#RoHS Certification#CE Certification#FCC Certification

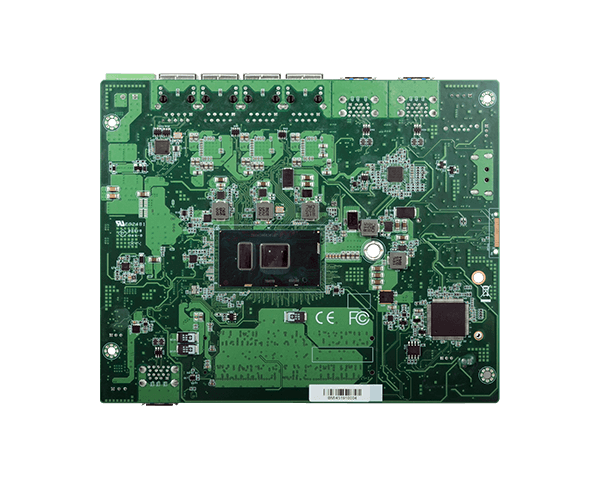

SU256
SU256
SU256
SU256
System
Processor
6th Generation Intel® Core™ Processors, BGA 1356 (Skylake-U*)
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8 GHz(3.9 GHz) ,15W
Memory
2 x 260-pin SO-DIMM up to 8GB (1R*8)
Dual channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x HDMI
Expansion
SSD
Support up to 1 x Flash Module mSATA SATA 3.0
Interface
1 x Full-size Mini PCIe
Ethernet
Controller
3 x Intel® I210IT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT9.5 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Front I/O
USB
2 x USB 3.0

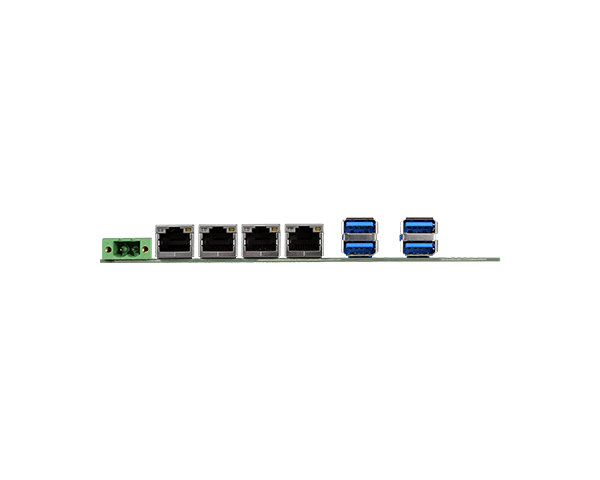

Rear I/O
Ethernet
4 x GbE (RJ-45)
USB
4 x USB 3.0
Internal I/O
Display
1 x HDMI
SATA
1 x SATA 3.0
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (option)
Power
Type
Wide Range 15~36V
Connector
Terminal Block
Consumption
Typical: 6600U:19V @ 0.33A (6.27Watt)
Max: 6600U:19V @ 2.01A (38.19Watt)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 WES 7
WE8S
CentOS 7 (1804)
Environment
Temperature
Operating: -20 to 70°C Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
273,084 hrs @ 25°C; 234,185 hrs @ 45°C ; 196,965 hrs @ 60°C ; 170,277 hrs @ 70°C
Calculation model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
4" SBC Form Factor
165mm x 135mm
Height
PCB: 1.6mm Top Side: 16.5mm, Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 SU256-SCM board
1 Heatsink (28.4mm) A71-008158-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SU256-SCM
    Part Number :
    770-SU2561-000G
    Description :
    Fanless, Intel® Core™ i7-7600U, 1 HDMI, TPM2.0, 4 LAN, 6 USB 3.0, 15~36V, -20 to 70°C
