MD711-SU｜Intel®｜Industrial Computers｜DFI

MD711-SU
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Application-Specific System Medical System MD711-SU
  • 6th Generation Intel® Core™ Medical Computing System
  • 2 DDR4 SODIMM up to 32GB
  • 2 x 2.5" SATA 3.0 drive bay
  • Supports 1 PCIe 16 slot, 1 Full-Size Mini PCIe slot, 1 M.2 slot (2242 B key)
  • 4KV Isolated I/O ports: 2 Intel GbE, 2 COM, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide Voltage: 9~36V DC-in
Fanless Design
DP
Mini PCIe
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
EN-60601-1-2
PART 18 CLASS B
DFI Proprietary Motherboard

MD711-SU Related Tags

#Intel#Mini PCIe#Fanless Design#PCIe x16#Windows#Linux#HDMI#DVI-D#DP#DDR4#EN-60601-1-2#PART 18 CLASS B#RoHS Certification#CE Certification#FCC Certification#Medical

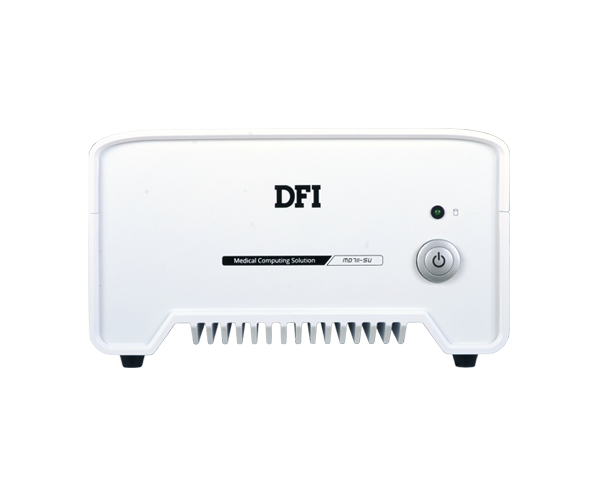

MD711-SU Medical Computing System
MD711-SU Medical Computing System
MD711-SU Medical Computing System

Related Products:

Select All - Clear
System
Processor
6th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x DP/HDMI (HDMI available upon request)
1 x DVI-D
DP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
Dual Displays
DVI-D + DP
Storage
External/Internal
2 x 2.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x PCIe x16 (Gen 3) (x4 signal)
1 x Full-size Mini PCIe (PCIe/USB)
1 x M.2 (2242 B Key) (PCIe/USB/SATA)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Buttons
1 x Power Button

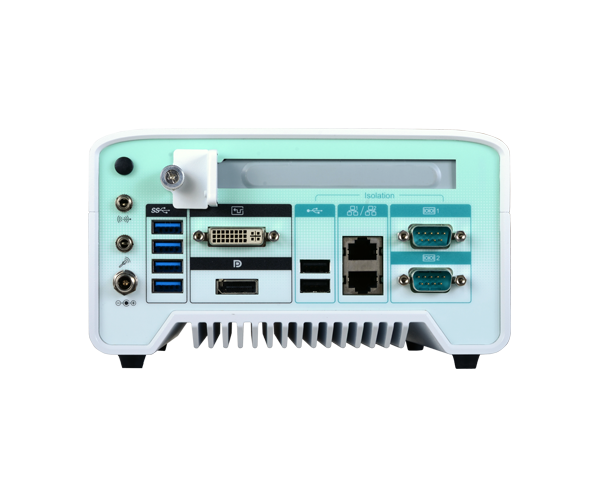

Rear I/O
Ethernet
2 x GbE (RJ-45) (supports 4kV isolation)
Serial
2 x RS-232 (DB-9) (supports 4kV isolation)
USB
4 x USB 3.0 (type A)
2 x USB 2.0 (type A, full speed) (supports 4kV isolation)
Display
1 x DP/HDMI (HDMI available upon request)
1 x DVI-D
Audio
1 x Line-out
1 x Mic-in
Wi-Fi Antenna
1 x Wi-Fi Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
DC Jack
OS Support
OS Support
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10
WES 7
WE8S
Linux
Environment
Operating Temperature
0 to 40°C (w/0.7m air flow)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall Mount
Dimensions (W x H x D)
182 x 97.6 x 200 mm
(7.17" x 3.84" x 7.87")
Weight
2.3 kg
Standards and Certifications
Shock
Operating: 3G, 11ms
Non-Operating: 5G, 11ms
Vibration
Operating: Random 5~500Hz, IEC68-2-64 (3G) (SSD/mSATA), IEC68-2-64 (0.5G) (HDD)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) (SSD/mSATA), IEC68-2-6 (1G) (HDD)
Certifications
CE, FCC, RoHS
IEC 60601-1-2:2014
EN 60601-1-2:2015
ISO 14971:2007
Packing List
Packing List
1 MD711-SU system unit
Mounting screws for SATA drive
Mounting screws for Mini PCIe module
1 Quick Installation Guide
1 Power Adapter
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    MD711-SU2061     Part Number :
     750-MD7110-000G     Description :
    Fanless, Intel Core i5-6300U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
  • Model Name :
    MD711-SU2061     Part Number :
     750-MD7110-100G     Description :
    Fanless, Intel Core i7-6600U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
  • Model Name :
    MD711-SU2061     Part Number :
     750-MD7110-200G     Description :
    Fanless, Intel Core i5-6300U, 1 HDMI, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
  • Model Name :
    MD711-SU2061     Part Number :
     750-MD7110-300G     Description :
    Fanless, Intel Core i7-6600U, 1 HDMI, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     785-WIFIKT     Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    32GB SSD     Part Number :
     785-S25032G     Description :
    2.5" SATA SSD, 32GB MLC, -40 to 85°C, RoHS
  • Item Name :
    64GB SSD     Part Number :
     785-S25064G     Description :
    2.5" SATA SSD, 64GB MLC, -40 to 85°C, RoHS
  • Item Name :
    128GB SSD     Part Number :
     785-S25128G     Description :
    2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS
  • Item Name :
    256GB SSD     Part Number :
     785-S25256G     Description :
    2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
  • Item Name :
    512GB SSD     Part Number :
     785-S25512G     Description :
    2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
  • Item Name :
    1TB SSD     Part Number :
     785-S251TBG     Description :
    2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
  • Item Name :
    500GB HDD     Part Number :
     785-H25500G     Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    1TB HDD     Part Number :
     785-H251TBG     Description :
    2.5” SATA HDD, 1TB, RoHS
  • Item Name :
    4GB DDR4     Part Number :
     785-RSOD44G     Description :
    SODIMM, DDR4 Module, 4GB, RoHS
  • Item Name :
    8GB DDR4     Part Number :
     785-RSOD48G     Description :
    SODIMM, DDR4 Module, 8GB, RoHS
  • Item Name :
    16GB DDR4     Part Number :
     785-RSOD416G     Description :
    SODIMM, DDR4 Module, 16GB, RoHS
  • Item Name :
    Wall Mount     Part Number :
     761-MD7110-000G     Description :
    MD711-SU Wall Mount Kit, RoHS
  • Item Name :
    Power Adapter     Part Number :
     671-106016-000G     Description :
    60W, 24V/2.5A, Level 6, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Brings a Sense of Peace and Comfort

DFI’s MD711-SU is a high-performance fanless embedded box PC designed to work with medical equipment. This medical PC is equipped with 4kV isolated I/O ports and specialized heat dissipation technology with easy-to-clean design and silent operation. The ideal medical applications for this system covers nursing carts, operating rooms, healthcare information systems, and medical OEM equipment integration to ensure the best patient care.

Experiences How Small It Is

The size of MD711-SU is defying the public's cognition in medical system. It measures at only 182mm x 97.6mm x 200mm (W x H x D) with light weight and high mobility compared to other traditional medical systems.

Leads Quietness and Trust

The medical computer has the most silent fanless design with long-term support, which can be used in noise-sensitive environments and makes a dedication to various healthcare applications.

Maintains Excellent Hygiene

The Nano-silver antibacterial agent on the system surface transforms Oxygen into active Oxygen, which has a very strong sterilizing power and maintains the antibacterial effect for a long time.

Uses Safely with 4kV Isolated I/O

MD711-SU features isolated I/O ports (LAN, COM, USB) with 4kV support, ensuring speedy signal transmission without noise and easy integration with medical equipment.

Satisfies the Need of Expandability

An extra expansion slot further powers up the system with high-resolution imaging capabilities to enable various medical applications including ultrasound, endoscopy, and more.

Performs Effortless Cleaning

With pure white chassis to match the healthcare environment, the system features curved angles that improve patient and staff safety. Specifically designed for medical scenarios, the smooth shape enabled by a special downward fin allows easy cleaning and protects the system from being damaged by cleaning agents.

Says Goodbye to Mistake of Plugging

The I/O interface design offers improved user experience with intuitive port type labels, maximizing the efficiency of staff and enabling effortless implementation.
