EC800-AL｜Intel®｜Industrial Computers｜DFI

EC800-AL
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ultra Compact Fanless PC EC800-AL
  • Intel Atom® Processor E3900
  • 2GB/4GB/8GB LPDDR4-2400 memory onboard
  • Triple independent displays: 1 VGA/DVI-D + 2 Mini-DP/Micro-HDMI
  • Supports 1 Mini PCIe and 2 M.2 slots
  • Rich I/O ports: 2 Intel GbE, 2 COM, 4 USB
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Wide Voltage: 9~36V DC-in
Fanless Design
Compact Size
4K2K Display
Wide-temp: -40~70°C
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UL-US Certification
UKCA Certification
EC800-AL Embedded Solution Powered by:
AL553

AL553

AL553

3.5" SBC, Intel Atom® Processor E3900, 1 DDR3L, 1 x M.2, 1 Mini PCIe, 1 VGA, 1 LVDS, 1 HDMI

EC800-AL Related Tags

#IoT#Intel#Compact PC#Mini PCIe#Fanless Design#Compact Size#4K2K Display#Windows#Linux#DVI-D#VGA#DP#DDR4#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification#AGV#UKCA Certification

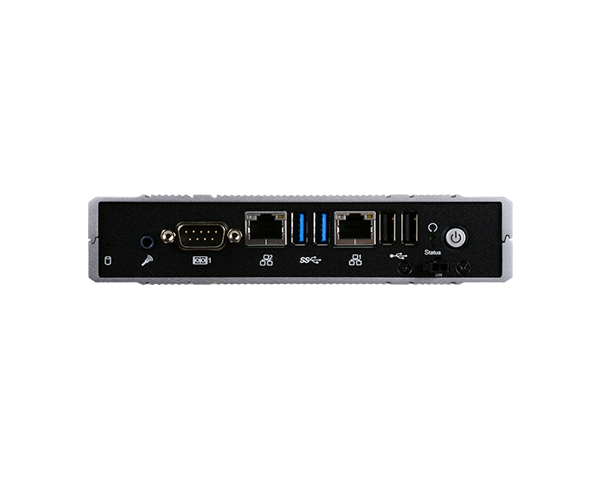

EC800-AL Fanless Embedded System
EC800-AL Fanless Embedded System

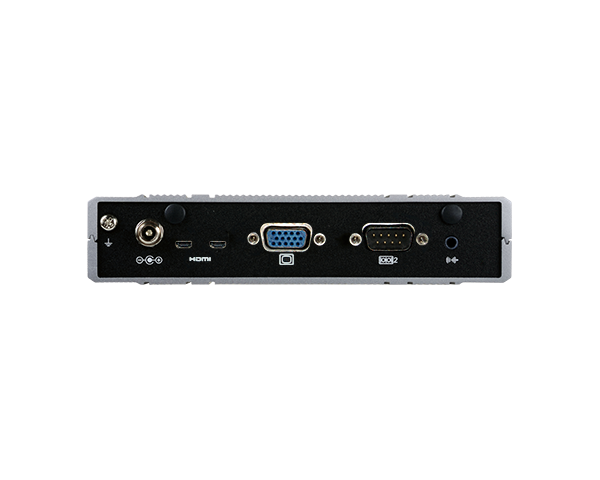

EC800-AL Fanless Embedded System

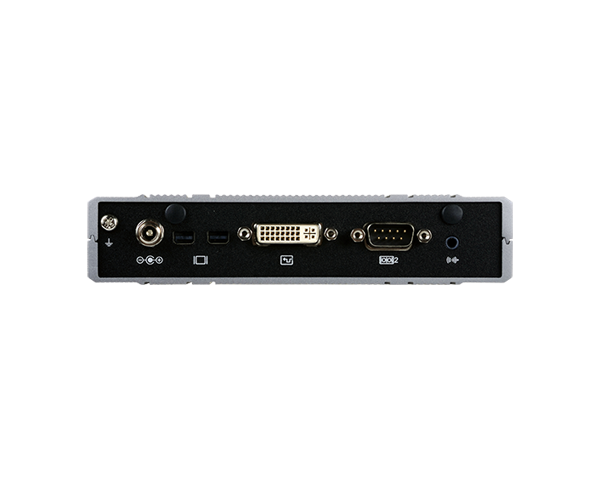

EC800-AL Fanless Embedded System

Related Products:

Select All - Clear
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Memory
2GB/4GB/8GB Memory Down
Dual Channel LPDDR4 2400MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
Display
1 x VGA/DVI-D
2 x Mini-DP/Micro-HDMI
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
Mini-DP: resolution up to 4096x2160 @ 60Hz
Micro-HDMI: resolution up to 3840x2160 @ 30Hz
Triple Displays
VGA + 2 Micro-HDMI
DVI-D + 2 Mini-DP
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/SATA)
1 x M.2 (2242 B Key) (PCIe/USB/SATA)
1 x M.2 (2230 E Key) (PCIe/USB)
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)
Audio
1 x Mic-in
Buttons
1 x Power Button
Switch
1 x Power Switch (2-pin)
Rear I/O
Serial
1x DB9 RS-232/422/485 (default), or change to 8-bit DIO by jumper select
Display
1 x VGA/DVI-D
2 x Mini-DP/Micro-HDMI
Audio
1 x Line-out
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
DC Jack
OS Support
OS Support (UEFI Only)
Windows 10 IoT (64-bit)
Linux
Linux Yocto Project (64-bit)
Environment
Operating Temperature
N4200: -20 to 60°C (standard)
E3940, E3930: -20 to 60°C (standard), -40 to 70°C (wide-temp)
With 0.4m/s Air Flow
Storage Temperature
-40 to 85°C
Relative Humidity
10 to 90% RH (non-condensing)
Mechanism
Construction
Aluminum
Mounting
Wall/VESA/DIN Rail Mount (available upon request)
Dimensions (W x H x D)
161mm x 35.1mm x 108.2mm
Weight
700g
Standards and Certifications
Shock
Operating: 3G, 11ms
Non-Operating: 5G, 11ms
Vibration
Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
Certifications
CE, FCC Class B, UL, RoHS, UKCA
Packing List
Packing List
1 EC800-AL system unit
Mounting screws for Mini PCIe module
Mounting screws for M.2 module (8mm & 4mm), washer between 2 M.2 modules
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC800-AL552CPD-E3950-4     Part Number :
     750-EC8004-000G     Description :
    Fanless, Intel Atom E3950, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
  • Model Name :
    EC800-AL552CHV-E3950-4     Part Number :
     750-EC8004-100G     Description :
    Fanless, Intel Atom E3950, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
  • Model Name :
    EC800-AL552TPD-E3950-8     Part Number :
     750-EC8004-200G     Description :
    Fanless, Intel Atom E3950, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS
  • Model Name :
    EC800-AL552THV-E3950-8     Part Number :
     750-EC8004-300G     Description :
    Fanless, Intel Atom E3950, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS
  • Model Name :
    EC800-AL552CPD-N4200-4     Part Number :
     750-EC8004-400G     Description :
    Fanless, Intel Pentium N4200, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
  • Model Name :
    EC800-AL552THV-E3930-4     Part Number :
     750-EC8004-500G     Description :
    Fanless, Intel Atom E3930, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS
  • Model Name :
    EC800-AL552CHV-E3930-2     Part Number :
     750-EC8004-600G     Description :
    Fanless, Intel Atom E3930, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 2GB LPDDR4 onboard, -20 to 60°C, RoHS
  • Model Name :
    EC800-AL552CPD-N4200-8     Part Number :
     750-EC8004-700G     Description :
    Fanless, Intel Atom N4200, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -20 to 60°C, RoHS
  • Model Name :
    EC800-AL552CHV-N4200-4     Part Number :
     750-EC8004-800G     Description :
    Fanless, Intel Atom N4200, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    128GB mSATA     Part Number :
     785-MW128GMH     Description :
    mSATA Card, 128GB MLC, -40 to 85°C, RoHS
  • Item Name :
    64GB mSATA     Part Number :
     785-MW64GMH     Description :
    mSATA Card, 64GB MLC, -40 to 85°C, RoHS
  • Item Name :
    32GB mSATA     Part Number :
     785-MW32GMH     Description :
    mSATA Card, 32GB MLC, -40 to 85°C, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-EC8002-100G     Description :
    M.2 2230 802.11abgn/ac+BT4.2, Intel AC 8260.NGWMG, with 2x RPSMA Cable & 2x Dipole Antenna Kit, M2 Screw
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    60W Power Adapter     Part Number :
     671-106012-000G
    671-106013-000G
    671-106011-000G     Description :
    60W, 12V/5A, Level 6, RoHS
    60W, 12V/5A (-30 to 70°C), Level 6, RoHS
    60W, 19V/3.15A, Level 6, RoHS
  • Item Name :
    Wall Mount     Part Number :
     761-EC8000-000G     Description :
    EC800 Wall Mount Kit, RoHS
  • Item Name :
    VESA Mount     Part Number :
     761-EC8000-100G     Description :
    EC800 Mount Kit (75x75mm, 100x100mm), RoHS
  • Item Name :
    DIN Rail Mount     Part Number :
     761-EC8002-000G     Description :
    EC800-AL RAIL BRACKET KITS, RoHS
  • Item Name :
    8GB M.2     Part Number :
     785-M208GM42     Description :
    M.2 2242 8GB, MLC
  • Item Name :
    16GB M.2     Part Number :
     785-M216GM42     Description :
    M.2 2242 16GB, MLC
  • Item Name :
    32GB M.2     Part Number :
     785-M232GM42     Description :
    M.2 2242 32GB, MLC
  • Item Name :
    64GB M.2     Part Number :
     785-M264GM42     Description :
    M.2 2242 64GB, MLC
  • Item Name :
    128GB M.2     Part Number :
     785-M2128GM42     Description :
    M.2 2242 128GB, MLC
  • Item Name :
    256GB M.2     Part Number :
     785-M2256GM42     Description :
    M.2 2242 256GB, MLC
  • Item Name :
    512GB M.2     Part Number :
     785-M2512GM42     Description :
    M.2 2242 512GB, MLC
  • Item Name :
    Extend Power Switch Cable     Part Number :
     A81-004070-016G     Description :
    Power cable 2pin stripped, length 1000mm
  • Item Name :
    DC Cord     Part Number :
     A81-004031-007G     Description :
    UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Introducing EC800-AL Fanless Box PC

DFI’s EC800-AL fanless embedded system comes with Intel Atom® processor E3900, which is equipped with extensive I/O capabilities in an ultra compact size. To ensure efficient data transition, the system supports a Mini PCIe slot and 2 M.2 slots for wireless connectivity and storage. As for product reliability and availability, the system operates against environmental factors with anti-dust and anti-vibration design.

Long Life & Highly Rugged

This new model supports fanless and cable less design in an ultra-small size, providing outstanding reliability and MTBF hours and features up to a 15-year long product life cycle.

Amazing Platform & Low Power Consuming

Based on Goldmont architecture with 14 nm process technology, the Intel Atom® processor E3900 series empowers EC800-AL system with real-time computing and excellent thermal dissipation.

Upgrade For You

The newest member of DFI’s fanless and compact embedded system series, EC800-AL, is built with enhanced computing, dual sided rich I/Os, and expandability when compared to the former generation.

Expandable for Wireless Connections

Its sufficient expansion capabilities include 2 high-speed M.2 and 1 Mini PCIe slot, and allow users to add 4G LTE/Wi-Fi/Bluetooth/GPS modules for a variety of applications.

Enhanced & Immersive Experience

The EC800-AL delivers ultra HD 4K immersive graphics performance on three independent displays via three simultaneous graphics pipes suitable for video centric applications.

24/7 Reliable Operating

This embedded system is capable of wide range 9~36V DC power input and can survive under extended temperature range (from -40°C to 70°C) in mission-critical environments.

Tailor-Made for Critical Factory Applications

With fanless design, small form factor, wide operating temperature, and multiple expansion, the rugged EC800-AL is built to fit your needs in harsh automation environments.

Related Materials

Related Products

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
