EC531/EC532-SD｜Intel®｜Industrial Computers｜DFI

EC531/EC532-SD
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Embedded Fanless PC EC531/EC532-SD
  • 6th/7th Generation Intel® Core™ with Intel® Q170
  • Supports DDR4 SODIMM up to 32GB
  • Three independent displays: 1 VGA + 1 DVI + 1 DP
  • Rich I/O connectivity: 2 GbE, 6 COM, 8 USB 3.0
  • 3 expansion slots: PCIe x16 + PCI
  • 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide Voltage: 9~36V DC-in
Fanless Design
PCIe x16
DDR4
Triple Independent Display
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
EC531/EC532-SD Embedded Solution Powered by: DFI Proprietary Motherboard

EC531/EC532-SD Related Tags

#Intel#Mini PCIe#Fanless Design#PCIe x16#Windows#DVI-I#DVI-D#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#Material Handling#SCARA#Legacy ISA/PCI Expansion Port
Fanless Embedded PC Side

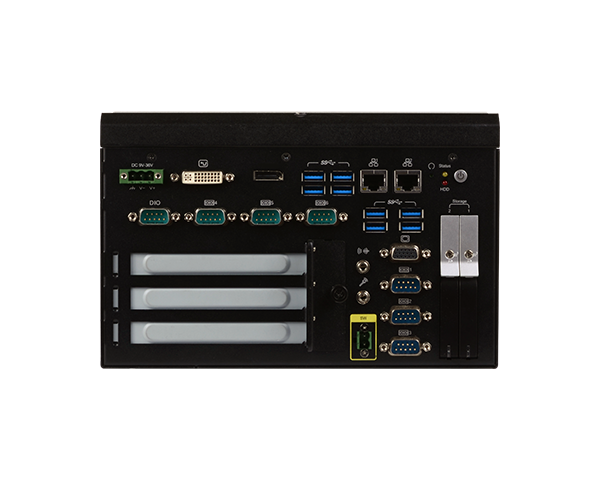

Fanless Embedded PC Front

Related Products:

Select All - Clear
System
Processor
6th/7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Core™ i7-7700T, Quad Core, 8M Cache, 2.9GHz (3.8GHz), 35W
Intel® Core™ i5-7500T, Quad Core, 6M Cache, 2.7GHz (3.5GHz), 35W
Intel® Core™ i3-7101TE, Dual Core, 3M Cache, 3.4GHz, 35W
Chipset
Intel® Q170 Chipset
Intel® H110 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP (only Q170 supports DP)
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + DVI (DVI-D signal) + DP
Storage
External
2 x 2.5" SATA 3.0 Drive Bay (Removable, support thickness 7mm HDD or SSD) (RAID 0/1)
Expansion
Interface
1 x PCIe x16 + 2 x PCI (EC531-SD)
2 x PCIe x16 (1 x1 and 1 x8 signal) + 1 x PCI (EC532-SD)
1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (USB/mSATA)
Ethernet
Controller
[H110]1 x Intel® I211AT PCIe (10/100/1000Mbps)
[H110]1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
[Q170]1 x Intel® I211AT PCIe (10/100/1000Mbps)
[Q170]1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x HDD LED
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
4 x RS-232/422/485 (DB-9) (RS-232 with power)
2 x RS-232/422/485 (DB-9)
USB
8 x USB 3.0 (type A)
DIO
1 x 8-bit DIO
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP
Audio
1 x Line-out
1 x Mic-in
Buttons
1 x Power Button
1 x Reset Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
3-pole Terminal Block
OS Support
OS Support
Windows 7 (32/64-bit)
Windows 10
Windows 8.1 (64-bit)
Environment
Operating Temperature
0 to 50°C (SSD or mSATA-mini, with 0.7m/s air flow)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Dimensions
235mm x 153.8mm x 222mm (W x H x D)
Construction
Aluminum + SGCC
Mounting
Wall Mount
Weight
4.8 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 EC531/EC532-SD system unit
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC532-SD6881-Q     Part Number :
     750-EC5321-100G     Description :
    Fanless, i7/i5/i3, Q170, 1 VGA, 1 DVI-D, 1 DP, 2 LAN, 6 COM, 8 USB, 2 PCIe x16, 1 PCI, RoHS
  • Model Name :
    EC531-SD6881-Q     Part Number :
     750-EC5311-100G     Description :
    Fanless, i7/i5/i3, Q170, 1 VGA, 1 DVI-D, 1 DP, 2 LAN, 6 COM, 8 USB, 1 PCIe x16, 2 PCI, RoHS
  • Model Name :
    EC531-SD6881-H     Part Number :
     750-EC5311-000G     Description :
    Fanless, i7/i5/i3, H110, 1 VGA, 1 DVI-D, 2 LAN, 6 COM, 8 USB, 1 PCIe x16, 2 PCI, RoHS
  • Model Name :
    EC532-SD6881-H     Part Number :
     750-EC5321-000G     Description :
    Fanless, i7/i5/i3, H110, 1 VGA, 1 DVI-D, 2 LAN, 6 COM, 8 USB, 2 PCIe x16, 1 PCI, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    i7-6700TE CPU     Part Number :
     143-102402-500G     Description :
    Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W, RoHS
  • Item Name :
    i5-6500TE CPU     Part Number :
     143-102303-500G     Description :
    Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W, RoHS
  • Item Name :
    i3-6100TE CPU     Part Number :
     143-102701-500G     Description :
    Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W, RoHS
  • Item Name :
    16GB DDR4     Part Number :
     785-RSOD416G     Description :
    SODIMM, DDR4 Module, 16GB, RoHS
  • Item Name :
    8GB DDR4     Part Number :
     785-RSOD48G     Description :
    SODIMM, DDR4 Module, 8GB, RoHS
  • Item Name :
    4GB DDR4     Part Number :
     785-RSOD44G     Description :
    SODIMM, DDR4 Module, 4GB, RoHS
  • Item Name :
    128GB mSATA-mini     Part Number :
     785-MS128GMF     Description :
    mSATA Card, 128GB MLC, RoHS
  • Item Name :
    64GB mSATA-mini     Part Number :
     785-MS64GMF     Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA-mini     Part Number :
     785-MS32GMF     Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA-mini     Part Number :
     785-MS16GMF     Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA-mini     Part Number :
     785-MS08GMF     Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    4GB mSATA-mini     Part Number :
     785-MS04GMF     Description :
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G     Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    160W Power Adapter     Part Number :
     671-116003-000G     Description :
    160W, 19V/8.4A, Level 6, RoHS
  • Item Name :
    120W Power Adapter     Part Number :
     671-110003-100G     Description :
    120W, 19V, Level 6, RoHS
  • Item Name :
    100W Power Adapter     Part Number :
     671-110002-100G     Description :
    100W, 12V, Level 6, RoHS
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Wall Mount     Part Number :
     761-EC5410-000G     Description :
    Wall Mount Kit, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Powering Up Smarter Industrial Production in Industry 4.0

DFI’s EC500-SD series with 6th Generation Intel® Core™-i processors and Intel® Q170 chipset offers high computing performance and stunning video processing. With rich industrial I/O interfaces and PCI/ PCIe expansion slots, EC500-SD series is a perfect candidate for machine automation, AOI system, ITS, surveillance, and other high-end smart applications.

Leading Computing Performance

DFI’s EC500-SD series takes full advantage of Intel’s 6th Gen powerful desktop processors on the latest 14 nm technology and taps into faster memory performance with new memory support for DDR4 1.2V up to 2133, 32GB max capacity.

Fanless Rugged Construction

Leveraging advanced passive cooling technology in fanless design, the EC500-SD embedded computers excel in dusty and dirty environments and guaranteed longer MTBF hours in a 24/7 operation.

Full Compatibility with Industrial Cameras

DFI’s EC510/EC511-SD embedded computer is especially designed with 4 full-speed PoE, supporting IEEE 802.3af and 4 USB 3.0 camera interfaces with data transfer rates of up to 5 Gb/s to maximize the image acquisition bandwidth for machine vision systems.

High Expandability & Upgradability

The EC500-SD series has a maximum of 2 PCI express Gen3 slots and 1 PCI expansion slot to empower video capture cards, graphic cards, data acquisition cards, and so on, providing more flexibility for different applications.

Stunning Visual Performance

The 6th Intel Core-based systems utilize the Gen9 graphics engine, offering up to three independent audio streams and Ultra HD 4K support. It is ideal for enhanced high-density streaming applications in medical imaging and high resolution signage.

Customizable I/O Boards

The EC500 series offers superior innovative modular-concept design and unlimited configurations due to low-cost customizable I/O modules designed. It is able to meet custom specification requirements for various specific applications.

Wide Voltage Power Input

The EC500 series embedded computers is equipped with wide voltage power input range (9~36V DC) to support various voltage requirements in different applications, and also to prevent system damage from instable power input.

Optimized for Embedded Uses

As a high-end central controller, DFI’s new industrial computer series is designed with an external power switch that seamlessly connects with industrial equipment to help system integrators flexibly and easily develop their embedded applications.

Easy Installation and Maintenance

Front-accessible SSD drives and CFast socket allow users to remove or replace in five minutes or less for fast and easy maintenance. In addition, with better construction design, installing a CPU isn't as hard as you might think.

Ready for Smart Solutions

By enabling high flexibility and scalability in multiple embedded applications, DFI’s EC500-SD series is perfectly suitable for industrial automation, vision measurement, surveillance management, intelligent transportation, and high-resolution medical imaging.
