VP101-BT
Home Application-Specific System In-vehicle System VP101-BT
  • 10.1" 1280x800 TFT LCD Panel with Touch Screen
  • Supports Ignition Control and Delay On/Off Function
  • IP65 Front Panel Protection
  • VESA/Panel Mount
  • Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Wide Voltage: 9~36V DC-in
Fanless Design
IP65 Front Panel Protection
ECC Memory
Mini PCIe
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
E-Mark (E13) Certification

VP101-BT Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#IP65 Front Panel Protection#Windows#Linux#HDMI#VGA#DDR3L#E-Mark (E13) Certification#RoHS Certification#CE Certification#FCC Certification

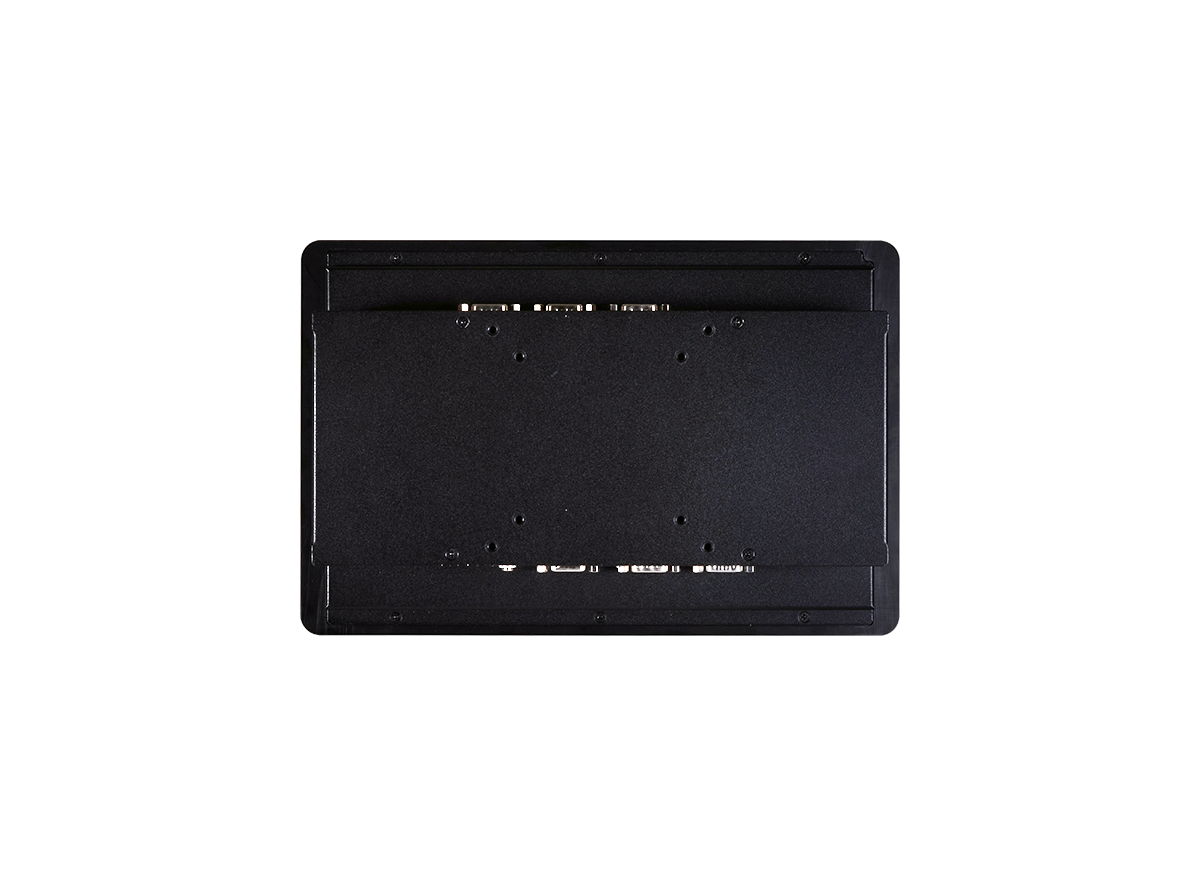

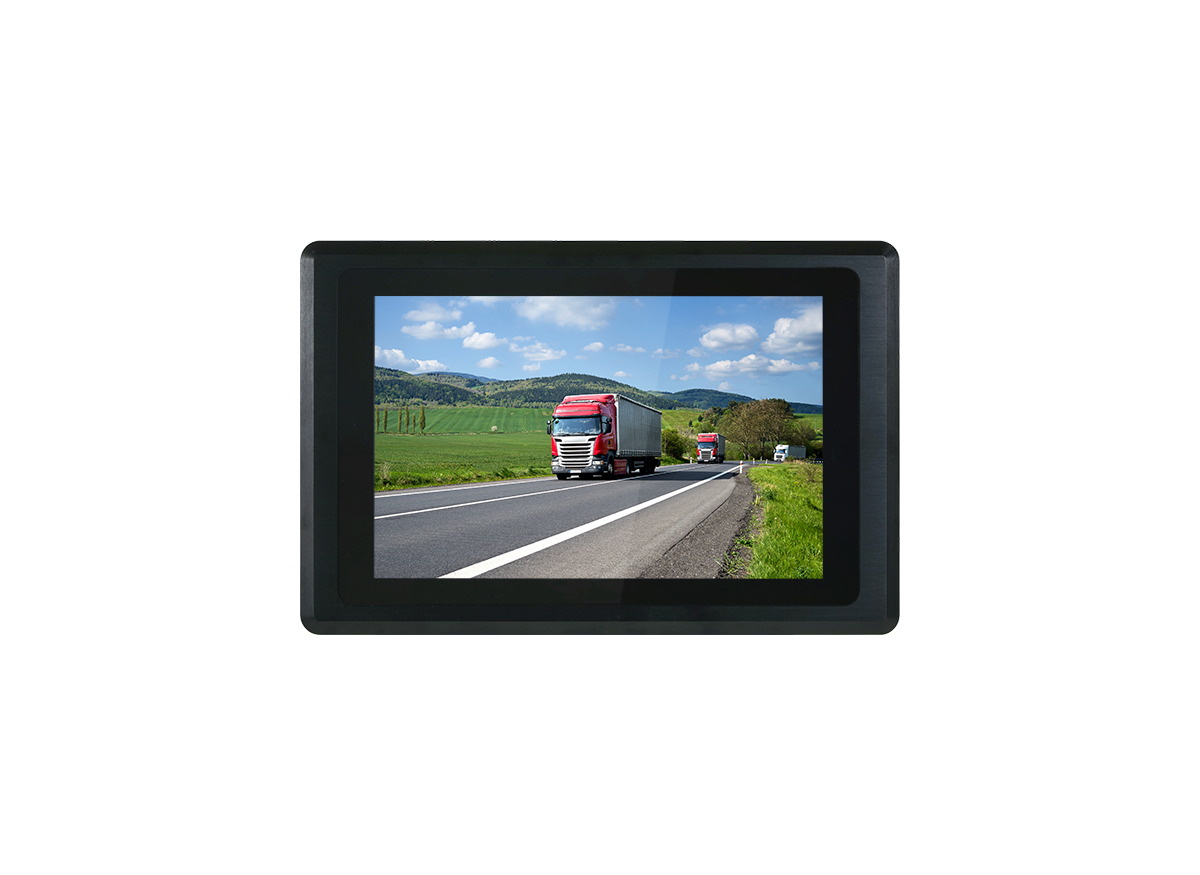

VP101-BT 10.1" In-vehicle Touch Panel PC
VP101-BT 10.1" In-vehicle Touch Panel PC
VP101-BT 10.1" In-vehicle Touch Panel PC
VP101-BT 10.1" In-vehicle Touch Panel PC
VP101-BT 10.1" In-vehicle Touch Panel PC
System
Processor
Intel® Atom™ Processor E3800 Series, BGA 1170
Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Atom™ Processor E3825, Quad Core, 1M Cache, 1.33GHz, 6W
Memory
2GB/4GB ECC Memory Down
Single Channel DDR3L 1333MHz
BIOS
AMI SPI 64Mbit
Display and Touch Screen
Display
10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen
Brightness
500 cd/m²
Contrast
800:1
Backlight Lifetime
50,000 hours
Graphics
Controller
Intel® HD Graphics
Feature
DirectX 11, OCL 1.2, OGL 4.0
H.264, MPEG2, MVC, VC-1, WMV9, VP8 (supported version dependent on OS)
Display
1 x HDMI
1 x VGA
HDMI: resolution up to 1920x1080 @ 60Hz
Storage
External/Internal
1 x 2.5" SATA 2.0 Drive Bay
1 x micro SD (available upon request)
Onboard eMMC (available upon request)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
1 x Full-size Mini PCIe (mSATA)
1 x Half-size Mini PCIe (PCIe/USB/LPC)
1 x SIM Socket
Audio
Audio Codec
Realtek ALC886 5.1-channel
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

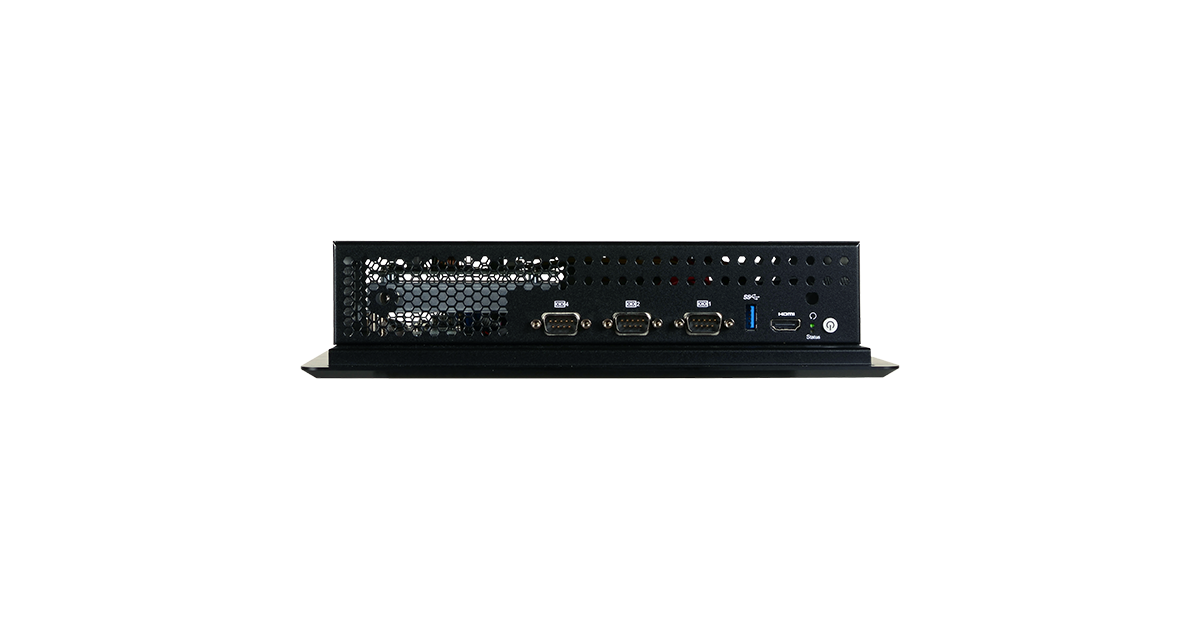

Top I/O
Serial
3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
USB
1 x USB 3.0 (type A)
Display
1 x HDMI
Wi-Fi Antenna
2 x Antenna Hole
Buttons
1 x Power Button
1 x Reset Button

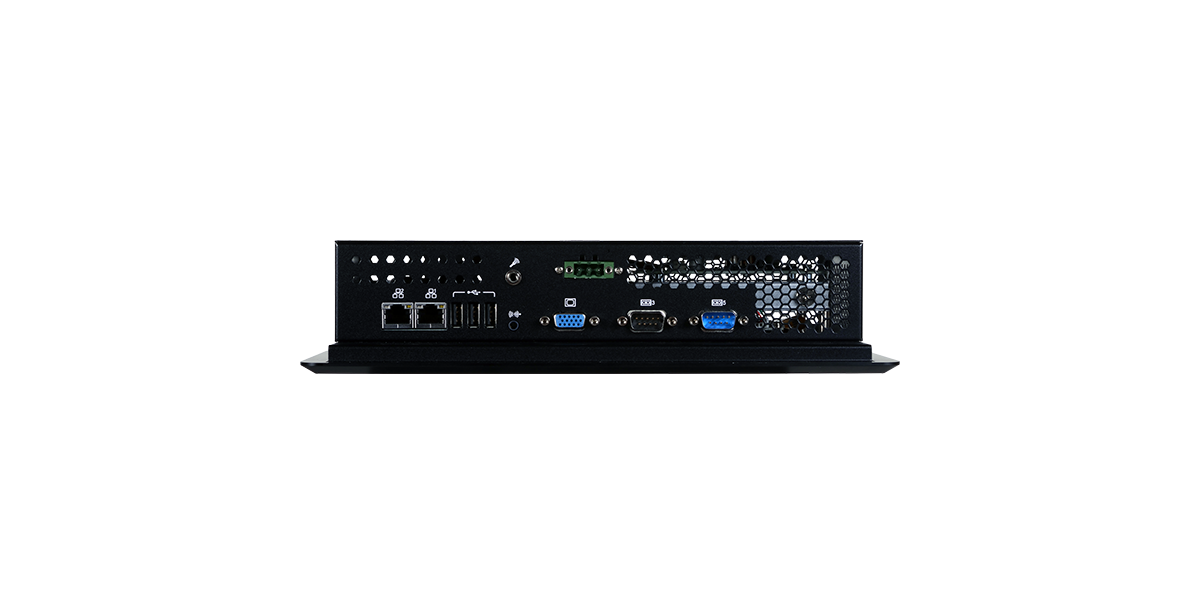

Bottom I/O
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
3 x USB 2.0 (type A)
Audio
1 x Line-out
1 x Mic-in
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control
Connector
3-pin Terminal Block (VCC/IGN/GND)
OS Support
OS Support
Windows 7 (32bit/64bit)
Windows 10 IoT Enterprise (32bit/64bit)
Linux
Environment
Operating Temperature
-20 to 60°C
Storage Temperature
-30 to 80°C
Relative Humidity
5 to 85% RH (non-condensing)
Mechanism
Construction
Aluminum Front Bezel
IP Rating
IP65 Front Panel Protection
Mounting
Panel/VESA Mount
Dimensions (W x H x D)
294mm x 193mm x 65mm
Weight
1.7 Kg
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A, E-Mark (E13)
Packing List
Packing List
1 VP101-BT Touch Panel PC
1 Poron foam
1 Chassis Panel Mount Bracket
1 Quick Installation Guide
Note: Please choose "VP101-BT product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    VP101-BT-454
    Part Number :
    750-VP1010-000G
    Description :
    10.1” Panel PC, BT253, Intel® Atom™ E3845, 4G RAM, 9~36V DC input
  • Model Name :
    VP101-BT-252
    Part Number :
    750-VP1010-100G
    Description :
    10.1” Panel PC, BT253, Intel® Atom™ E3825, 2G RAM, 9~36V DC input
Optional Items
  • Item Name Part Number Description
  • Item Name :
    HDD
    Part Number :
    785-H25500G
    785-H25320G
    785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G
    785-S25064G
    785-S25032G
    Description :
    2.5” SATA HDD, 500GB, RoHS
    2.5” SATA HDD, 320GB, RoHS
    2.5" SATA SSD, 1TB MLC, RoHS
    2.5" SATA SSD, 512GB MLC, RoHS
    2.5" SATA SSD, 256GB MLC, RoHS
    2.5" SATA SSD, 128GB MLC, RoHS
    2.5" SATA SSD, 64GB MLC, RoHS
    2.5" SATA SSD, 32GB MLC, RoHS
  • Item Name :
    mSATA
    Part Number :
    785-MS128GMF
    785-MS64GMF
    785-MS32GMF
    785-MS16GMF
    785-MS08GMF
    785-MS04GMF
    Description :
    mSATA Card, 128GB MLC, RoHS
    mSATA Card, 64GB MLC, RoHS
    mSATA Card, 32GB MLC, RoHS
    mSATA Card, 16GB MLC, RoHS
    mSATA Card, 8GB MLC, RoHS
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    CAN BUS
    Part Number :
    770-MPEC21-000G
    770-MPEC21-100G
    Description :
    MPE-CAN2-MR, Mini-PCIe RAW CAN Module Card F/G, RoHS
    MPE-CAN2-MF, Mini-PCIe Full CAN Module Card F/G, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-110003-100G
    Description :
    120W, 19V/6.3A, Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-TPC000-000G
    Description :
    Accessory Wall Mount Kits TPC Series/KS2xx, RoHS
  • Item Name :
    Panel Mount
    Part Number :
    761-VS1010-000G
    Description :
    Accessory Panel Mount Kit VIS101, RoHS
  • Item Name :
    Switch Cable
    Part Number :
    A81-006065-016G
    Description :
    Power adaptor cable with power ignition switch and Terminal Block 1*3P/5.0mm to system unit, and DC Jack to power adaptor, L=100mm

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
