HU551/HU553

Industrial Motherboards 3.5" SBC HU551/HU553
  • 1 DDR3L SODIMM up to 8GB
  • 1 LVDS, 2 DP or 2 HDMI
  • Expansion: 2 Mini PCIe, 1 SIM
  • Rich I/O: 2 Intel GbE, 3 COM, 4 USB 3.0, 2 USB 2.0
  • 4th Gen Intel® Core™ 3.5" SBC
  • 7-Year CPU Life Cycle Support

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide Voltage: 15~36V DC-in
DP
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

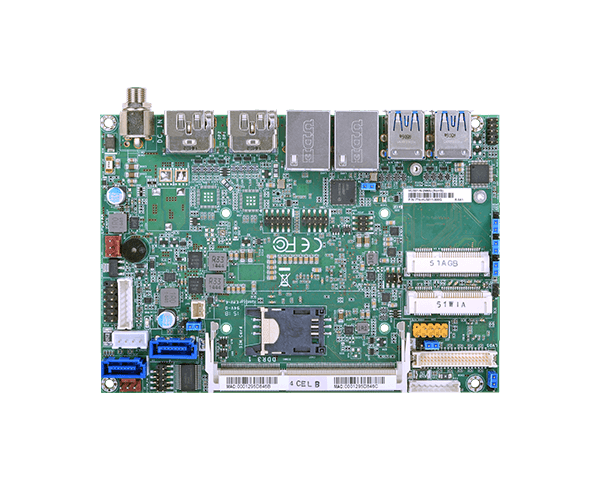

HU551/HU553 3.5" SBC

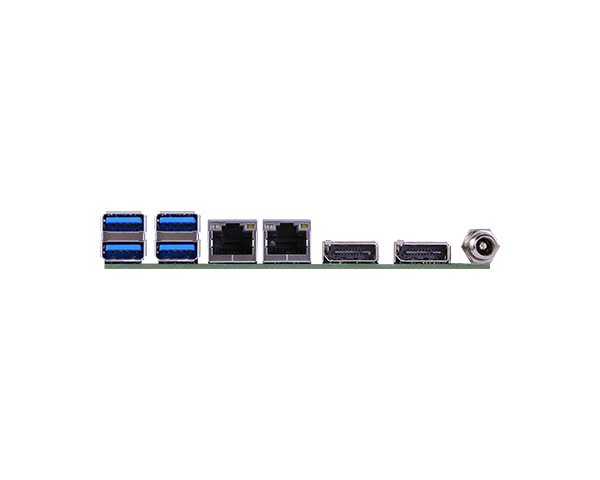

HU551/HU553 3.5" SBC

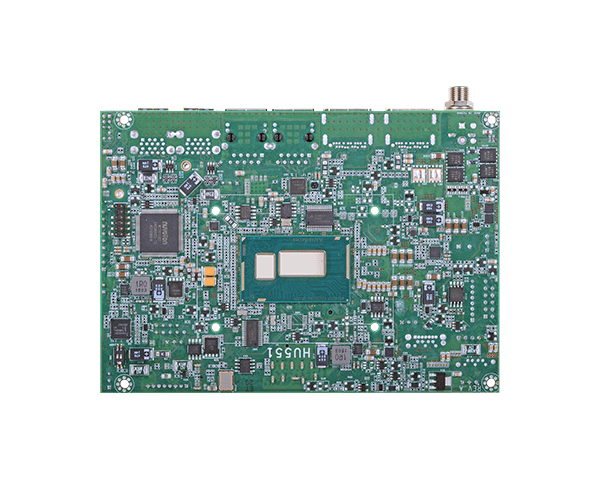

HU551/HU553 3.5" SBC

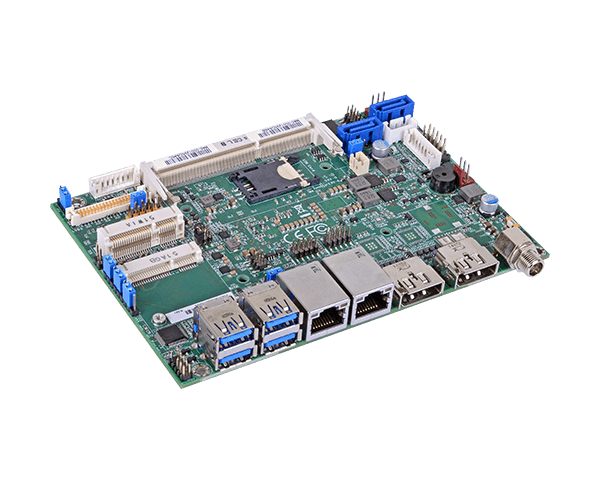

HU551/HU553 3.5" SBC
System
Processor
Intel® Core™ i7-4650U, 4M Cache, 1.7GHz (3.3GHz), 15W
Intel® Core™ i5-4300U, 3M Cache, 1.9GHz (2.9GHz), 15W
Intel® Core™ i3-4010U, 3M Cache, 1.7GHz, 15W
Intel® Celeron® 2980U, 2M Cache, 1.6GHz, 15W
Memory
One 204-pin SODIMM up to 8GB
Single channel DDR3L 1333/1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics GT series
Feature
Intel® Clear Video Technology
Intel® Advanced Vector Extensions 2.0 (Intel® AVX 2.0) Instructions
DirectX 11.1, OpenGL 4.0, OpenCL 1.2
Display
1 x LVDS
2 x DP
LVDS: NXP PTN3460, 48-bit, dual channel, resolution up to 1920x1200 @ 60Hz
DP: resolution up to 3200 x 2000 @ 60Hz
Expansion
Interface
2 x Mini PCIe
1 x SIM
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I210 PCIe (10/100/1000Mbps)
1 x Intel® I218 with iAMT9.5 (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ45)
USB
4 x USB 3.0
Display
2 x DP
Internal I/O
Serial
1 x RS485 (2.0mm pitch)
2 x RS232 (2.0mm pitch)
USB
2 x USB 2.0
Display
1 x LVDS
Audio
1 x Line-out
1 x Mic-in
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
Single 12V +/-10% DC (HU551)
Wide Range 15~36V (HU553)
Connector
DC-in Jack
Vertical Type Connector (4-pin) (available upon request)
Consumption
HU553-N-4650U: 19.68W with i7-4650U at 1.7GHz and 2x 4GB DDR3L SODIMM
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
Environment
Temperature
Operating: 0°C to 60°C Storage: -20°C to 85°C
Humidity
5% to 90% RH Storage: 5 to 90% RH
Mechanism
Dimensions
3.5" board 146mm (5.75") x 102mm (4.02")
Packing List
Packing List
1 HU551/HU553 board
1 Serial ATA data cable: 332-553001-005G
1 Serial ATA power Y cable: A81-004041-016G
1 DVD
1 Heat sink with fan: A71-110021-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    HU551-N-4650U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Core™ i7-4650U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU551-N-4300U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Core™ i5-4300U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU551-N-4010U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Core™ i3-4010U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU551-N-2980U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Celeron® 2980U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU553-N-4650U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Core™ i7-4650U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU553-N-4300U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Core™ i5-4300U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU553-N-4010U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Core™ i3-4010U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
  • Model Name :
    HU553-N-2980U
    Part Number :
    TBD
    Description :
    Cooler, Intel® Celeron® 2980U, 1 DDR3L SODIMM, 2 DP, 1 LVDS, 3 COM, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    332-253010-026G
    Description :
  • Item Name :
    COM port cable
    Part Number :
    332-753040-000G
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
  • Item Name :
    Power adapter
    Part Number :
    671-110002-100G
    671-110003-100G
    Description :
    100W, 12V, Level 6 (HU551)
    120W, 19V, Level 6 (HU553)
