BT551/BT553

Industrial Motherboards 3.5" SBC BT551/BT553
  • 2GB/4GB DDR3L memory down
  • 1 VGA, 1 LVDS, 1 DP
  • Expansion: 1 Mini PCIe
  • Rich I/O: 2 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
  • Intel Atom® Processor E3800
  • 15-Year CPU Life Cycle Support

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
Fanless Design
DP
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

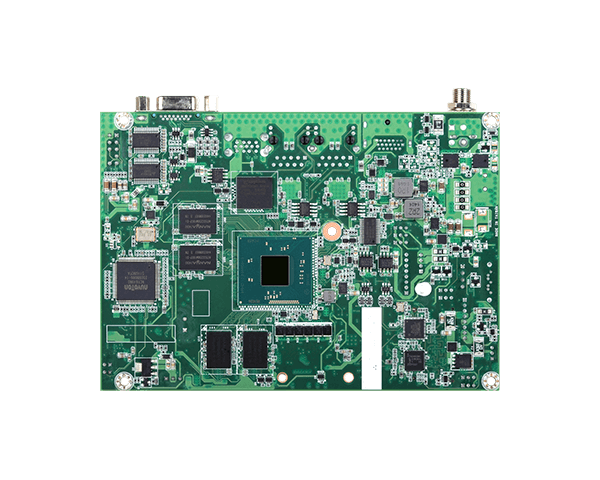

BT551/BT553 3.5" SBC

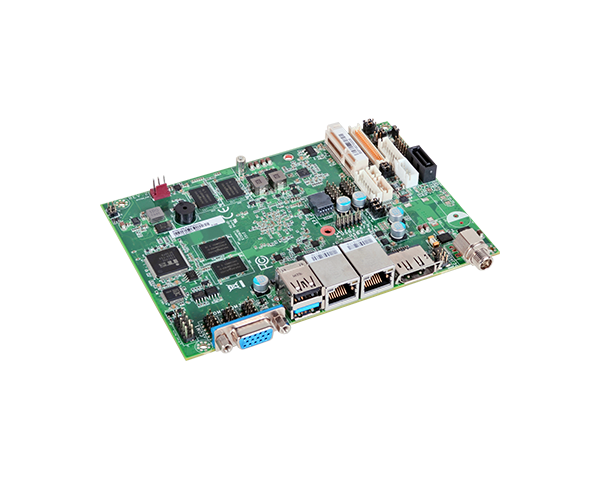

BT551/BT553 3.5" SBC
BT551/BT553 3.5" SBC
BT551/BT553 3.5" SBC
System
Processor
Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Memory
2GB/4GB DDR3L memory down
Dual channel DDR3L 1066/1333MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Display
1 x VGA
1 x LVDS
1 x DP
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
DP: supports DP++, resolution up to 2560x1600 @ 60Hz
Expansion
Interface
1 x Mini PCIe
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I210 PCIe (10/100/1000Mbps)

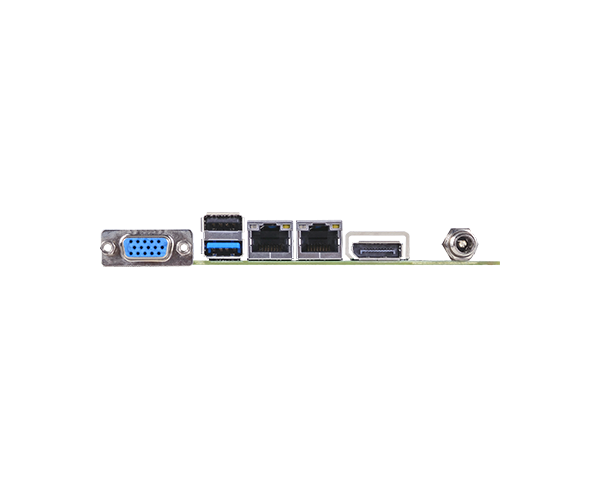

Rear I/O
Ethernet
2 x GbE (RJ45)
USB
1 x USB 3.0
1 x USB 2.0
Display
1 x DP
1 x VGA
Internal I/O
Serial
1 x RS485 (2.0mm pitch)
2 x RS232 (2.0mm pitch)
USB
4 x USB 2.0
Display
1 x LVDS
Audio
1 x Line-out
1 x Mic-in
SATA
1 x SATA 2.0 (up to 3Gb/s)
DIO
8-bit DIO
CANBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
Single 12V +/-10% DC (BT551)
Wide Range 15~36V (BT553)
Connector
DC-in Jack
Vertical Type Connector (4-pin) (available upon request)
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
Windows 10 IoT Enterprise (64-bit)
Environment
Temperature
Operating
: 0°C to 60°C - Atom, Celeron (Fanless)
: -20°C to 70°C - Celeron (Fanless)
: -40°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
Humidity
Operating: 5% to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
3.5" board
146mm (5.75") x 102mm (4.02")
Packing List
Packing List
1 BT551/BT553 board
1 Serial ATA data with power cable: A81-002013-000G
1 DVD
1 Heat spreader with heat sink: 761-BT5511-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT551-NB-21E26
    Part Number :
    TBD
    Description :
    Fanless, Intel® Core™ E3826, 2 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
  • Model Name :
    BT551-NB-41E45
    Part Number :
    TBD
    Description :
    Fanless, Intel® Core™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
  • Model Name :
    BT551-NB-41J00
    Part Number :
    TBD
    Description :
    Fanless, Intel® Celeron® J1900, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
  • Model Name :
    BT551-NT-21E26
    Part Number :
    TBD
    Description :
    Fanless, Intel® Atom™ E3826, 2 GB DDR3L SODIMM, 16GB eMMC, 3 COM, -40 to 85°C
  • Model Name :
    BT551-NT-41E45
    Part Number :
    TBD
    Description :
    Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, -40 to 85°C
  • Model Name :
    BT553-NB-21E26
    Part Number :
    TBD
    Description :
    Fanless, Intel® Atom™ E3826, 2 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
  • Model Name :
    BT553-NB-41E45
    Part Number :
    TBD
    Description :
    Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
  • Model Name :
    BT553-NB-41J00
    Part Number :
    TBD
    Description :
    Fanless, Intel® Celeron® J1900, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
  • Model Name :
    BT553-NT-41E45
    Part Number :
    TBD
    Description :
    Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, -40 to 85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
  • Item Name :
    COM port cable
    Part Number :
    332-753040-000G
    Description :
  • Item Name :
    Power adapter
    Part Number :
    671-110002-100G
    671-110003-100G
    Description :
    100W, 12V, Level 6 (BT551)
    120W, 19V, Level 6 (BT553)
