RL830-C602/C604

Industrial Motherboards EATX RL830-C602/C604
  • 3rd Gen Intel® Xeon® Intel® C602J/C604
  • 16 DDR3 DIMM up to 512GB
  • 1 VGA
  • Expansion: 4 PCIe x16, 2 PCIe x8
  • Rich I/O: 4 Intel GbE, 2 COM, 8 USB 2.0
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : Launched

COM ESD Protection: Air Gap ±15kv
PCIe x16
VGA
Mini PCIe
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

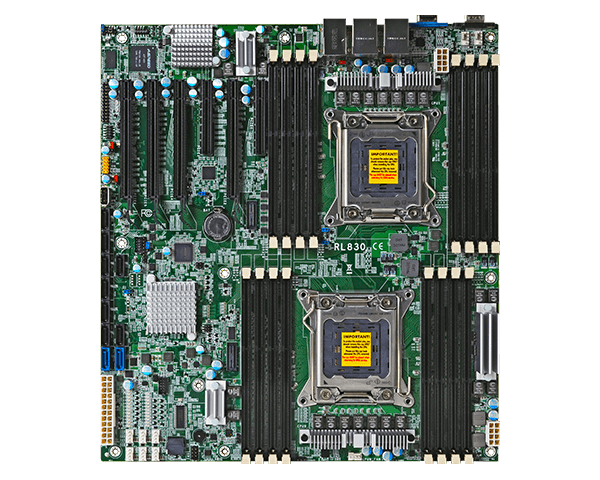

RL830-C602/C604 ATX

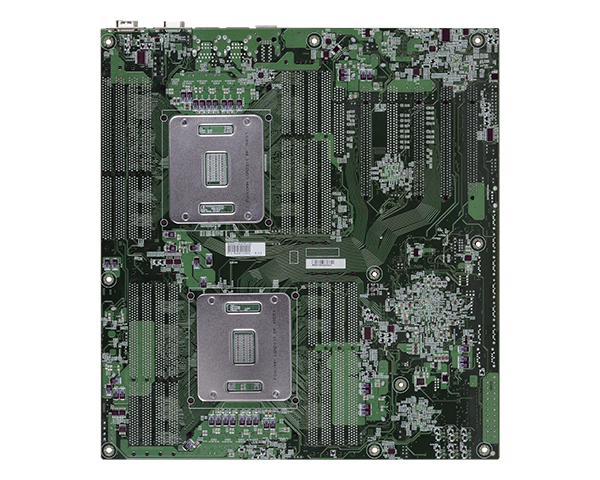

RL830-C602/C604 ATX

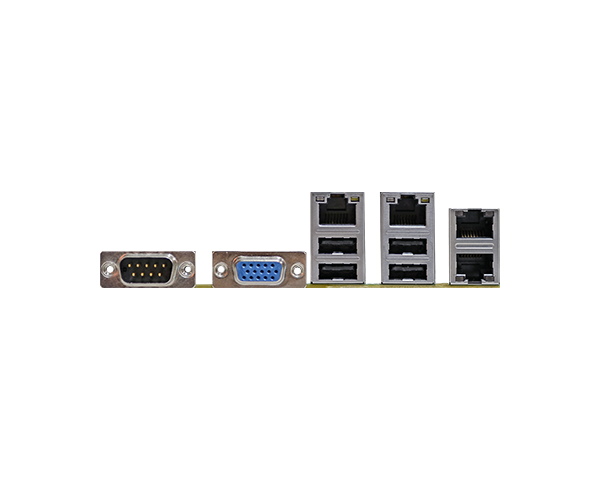

RL830-C602/C604 ATX

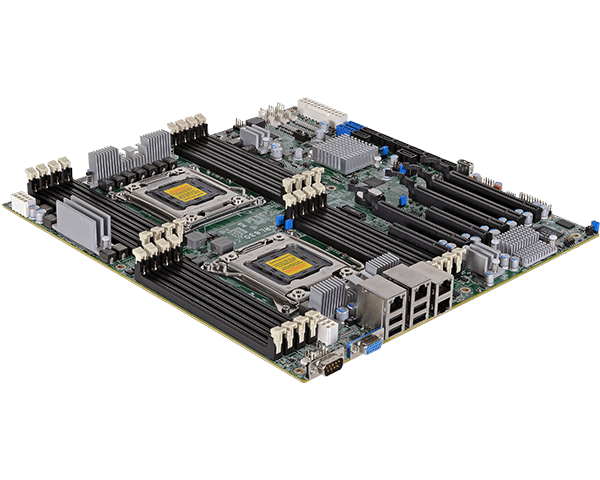

RL830-C602/C604 ATX
System
Processor
Dual Intel® Xeon® E5-2600 v2 processors
3rd Generation processors (22nm process technology)
Intel® Xeon® E5-4624L v2 (25M Cache, up to 2.5 GHz); 70W
Intel® Xeon® E5-2680 v2 (25M Cache, up to 3.6 GHz); 115W
Intel® Xeon® E5-2658 v2 (25M Cache, up to 3.0 GHz); 95W
Intel® Xeon® E5-2648L v2 (25M Cache, up to 2.5 GHz); 70W
Intel® Xeon® E5-2640 v2 (20M Cache, up to 2.5 GHz); 95W
Intel® Xeon® E5-2630 v2 (15M Cache, up to 3.1 GHz); 80W
Intel® Xeon® E5-2628L v2 (20M Cache, up to 2.4 GHz); 70W
Intel® Xeon® E5-2618L v2 (15M Cache, up to 2.0 GHz); 50W
Chipset
Intel® C602J/C604
Memory
16 240-pin DIMM up to 512GB
4 channel DDR3 800/1066/1333/1600MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Aspeed AST 1400
Display
1 x VGA
Expansion
Interface
4 PCIe x16 (Gen 3)
2 PCIe x8 (Gen 3)
Ethernet
Controller
1 Intel® 82580 PCIe (supports 4 LAN ports) (10/100/1000 )
Rear I/O
Ethernet
4 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9)
USB
4 x USB 2.0
Display
1 x VGA
Internal I/O
Serial
1 x RS-232 (2.0mm pitch)
USB
2 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
4 x SATA 2.0 (up to 3Gb/s) (Intel® C602J)
8 x SATA 2.0 (up to 3Gb/s) (Intel® C604)
RAID 0/1/5/10
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
2 x 8-pin 12V power
1 x 24-pin ATX power
Consumption
EPS12V
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows Server 2008 x86 (32-bit)
Windows Server 2008 x64 (64-bit)
Windows Server 2008 R2 x64 (64-bit)
Windows Server 2012 x64 (64-bit)
Environment
Temperature
Operating: 0 to 50°C Storage: -20 to 85°C
Humidity
Operating: 10% to 90% RH Storage: 10 to 90% RH
Mechanism
Dimensions
EATX form factor 305mm (12") x 330mm (13")
Packing List
Packing List
1 RL830 motherboard
1 Serial ATA data cable
1 I/O shield
1 DVD
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    COM port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :

*
