KU551

Industrial Motherboards 3.5" SBC KU551
  • 7th Gen Intel® Core™ 3.5" SBC
  • 1 DDR4 SODIMM up to 16GB
  • Three independent displays: VGA + LVDS + DP++
  • Wireless communication: Mini PCIe
  • Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2
  • 15-Year CPU Life Cycle Support

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
4K2K Display
DP
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

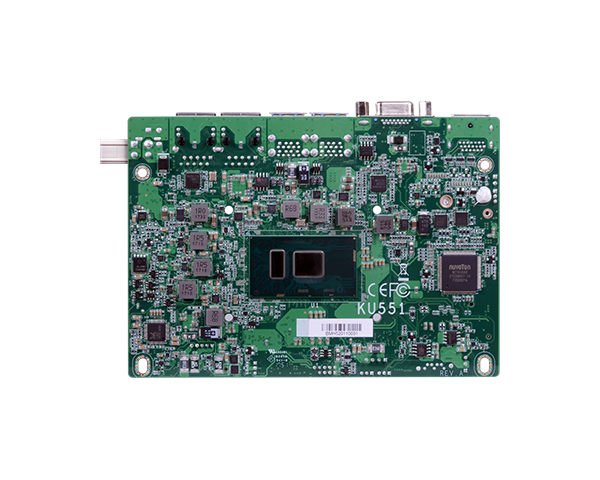

KU551 3.5" SBC

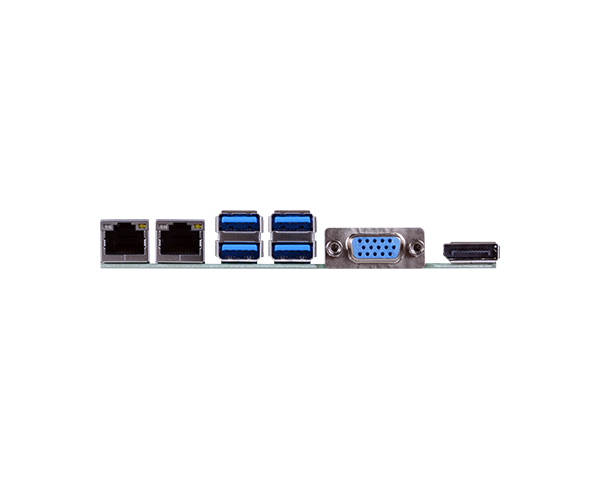

KU551 3.5" SBC

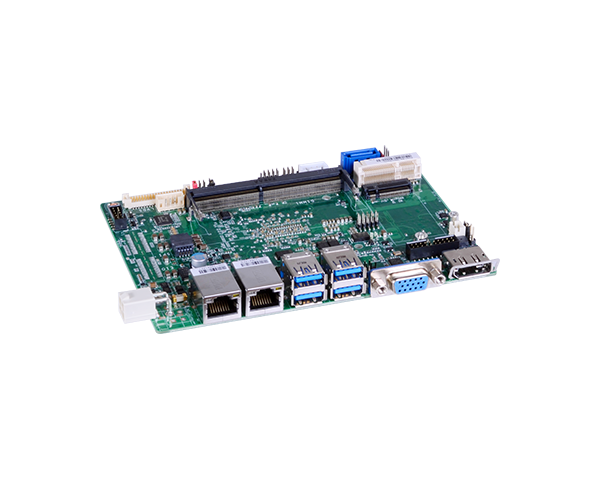

KU551 3.5" SBC
KU551 3.5" SBC
System
Processor
7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W
Memory
One 260-pin SODIMM up to 16GB
Single Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA/DDI
1 x LVDS/eDP
1 x DP++/DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DP++
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
1 x M.2 B key 2242 (PCIe/USB2.0/SATA3.0)
1 x Extension I/O connector (available upon request)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0
Display
1 x VGA
1 x DP++
Internal I/O
Serial
2 x RS-232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM, TPM2.0
Power
Type
Single 12V +/-5% DC
Connector
Right Angle Connector (4-pin)
DC Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption
Idle: i7-7600U:12V @ 0.9A (10.8Watt)
Max.: i7-7600U:12V @ 3.2A (38.5Watt)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Ubuntu 16.04
Yocto
Environment
Temperature
Operating: 0 to 60°C
(Opt. -20 to 70°C)
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
477,146 hrs @ 25°C; 277,228 hrs @ 45°C; 172,875 hrs @ 60°C
Mechanism
Dimensions
3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
Height
PCB: 1.6mm
Top Side: 16.3mm
Bottom Side: 4.0 mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 KU551 board
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 Serial ATA power cable (Length: 250mm) A81-004041-016G
1 Heat sink (Height: 25.8mm) A71-011080-010G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KU551-BN-7600U
    Part Number :
    770-KU5511-000G
    Description :
    Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
  • Model Name :
    KU551-BN-7300U
    Part Number :
    770-KU5511-100G
    Description :
    Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
  • Model Name :
    KU551-BN-7100U
    Part Number :
    770-KU5511-200G
    Description :
    Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
  • Model Name :
    KU551-BN-3965U
    Part Number :
    770-KU5511-300G
    Description :
    Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
  • Model Name :
    KU551-EN-7600U
    Part Number :
    770-KU5511-400G
    Description :
    Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
  • Model Name :
    KU551-EN-7300U
    Part Number :
    770-KU5511-500G
    Description :
    Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
  • Model Name :
    KU551-EN-7100U
    Part Number :
    770-KU5511-600G
    Description :
    Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
  • Model Name :
    KU551-EN-3965U
    Part Number :
    770-KU5511-700G
    Description :
    Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V
  • Item Name :
    Heat spreader
    Part Number :
    A71-011078-000G
    Description :
    Height: 11mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022007-016G
    Description :
    Length: 160mm

Best Budget 7th Generation Core™ Processor Based Motherboards

By understanding the context of partner request, DFI shows off latest industrial motherboards with a robust design and advanced features including 7th Gen Intel® Core™ processors, multiple memory-on-board choices, high bandwidth interfaces, and up-to-date M.2 interfaces. This enable the board to deliver increased CPU performance, visual enhancement with lower power consumption, high speed transmission, and large storage capacity to make harsh environment conditions work efficiently and successfully.

M.2 with Intel® Optane™ Memory Easily Boost Your Devices

Breakthrough technology delivers an ordinary experience such as unprecedented responsiveness and high speed performance without sacrificing the capacity of a hard disk drive.

Experience Spectacular Views : 4K UHD Technology

As graphics resolution continue to have more stunning clarity, DFI’s new products combined with 7th Generation Intel® Core™ processors allow sharper and more vivid images and video with 4K UHD technology. Simultaneously, covering from small form factor SBC to ATX allows up to 3 independent displays that increases partner possibility and flexibility of creating expansion designs on their customized build.

Running a Device on a Wide Voltage Range

The supply of voltage in different environments varies and can become unstable during operation as a result of requiring wide range power to fit the appliances. To meet diversity need, new industrial motherboard are compatible with 9~36V wide range power adapters.

Empowering Partners as DFI Quality Promise

Strict testing from thermal solution to basic component is essential to enable that DFI deliver high-quality products. Undergoing stricter test such as ESD, FloTHERMAL, and HALT maintain stability of operation in the harshest environment.

Complete Industrial Motherboard Product Line

New wide array of rugged and reliable industrial motherboards and modules, including ATX, microATX, Mini-ITX, Embedded SBC, and COM Express, will be continuously created by DFI to meet the diversity of applications.
