AL051

Industrial Motherboards 2.5" Pico-ITX AL051
  • Intel® Atom™/Pentium®/Celeron® Processor E3900
  • 1 DDR3L SODIMM up to 8GB
  • Triple independent displays: VGA + Mini DP++ + LVDS
  • Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus
  • Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.0, 2 USB 2.0
  • 15-Year CPU Life Cycle Support

Status : Launched

4K2K Display
VGA
DP
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

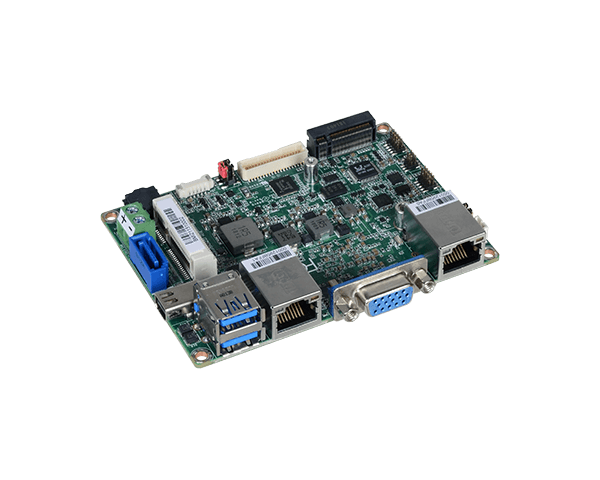

AL051 2.5" Pico-ITX

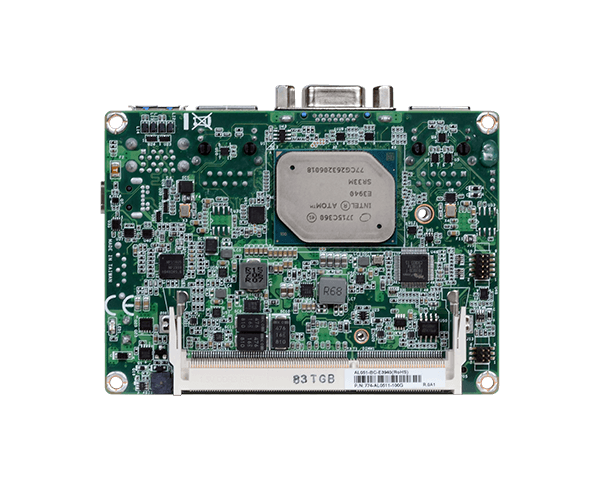

AL051 2.5" Pico-ITX
AL051 2.5" Pico-ITX
AL051 2.5" Pico-ITX
System
Processor
Intel® Atom™ Processor E3900 Family, BGA 1296
Intel® Atom™ x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel® Atom™ x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Atom™ x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 64Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x Mini DP++
1 x VGA
1 x LVDS
Mini DP++: resolution up to 4096x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 50Hz
LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz
Triple Displays
VGA + Mini DP++ + LVDS
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB 2.0)
1 x M.2 B key 2242. (PCIe/USB 2.0/SATA 3.0)
Audio
Audio Codec
Realtek ALC262-VC2-GR
Ethernet
Controller
2 x Intel® I211AT PCIe (10/100/1000Mbps)
2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

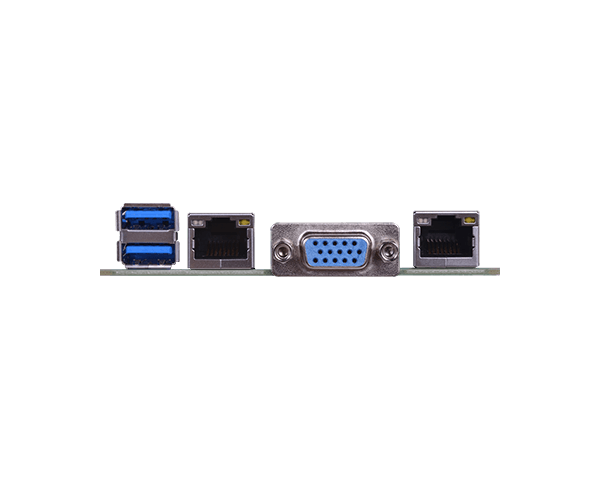

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
2 x USB 3.0
Display
1 x Mini DP++
1 x VGA
1 x LVDS
Internal I/O
Serial
1 x RS-232/422/485 (1.27mm pitch, right angle type)
USB
2 x USB 2.0 (1.27mm pitch)
Display
1 x LVDS LCD Panel Connector
Audio
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM2.0
Power
Type
Single 12V +/-10% DC
Connector
2-pin Terminal Block
2-pin Vertical Type Connector (opt.)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Ubuntu 16.04
Environment
Temperature
Operating: 0 to 60°C, -40 to 85 °C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
Height
PCB: TBD
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 AL051 board
1 Serial ATA data cable (Length: 500mm) 332-553002-005G
1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G
1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-000G, N Series CPU: A71-808309-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    AL051-TC-E3930
    Part Number :
    770-AL0511-500G
    Description :
    Fanless, Intel® Atom™/Pentium®/Celeron® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -40 to 85°C
  • Model Name :
    AL051-EC-E3930
    Part Number :
    770-AL0511-400G
    Description :
    Fanless, Intel® Atom™/Pentium®/Celeron® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -20 to 70°C
  • Model Name :
    AL051-BC-N3350
    Part Number :
    770-AL0511-300G
    Description :
    Fanless, Intel® Atom™/Pentium®/Celeron® N3350, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
  • Model Name :
    AL051-BC-E3950
    Part Number :
    770-AL0511-200G
    Description :
    Fanless, Intel® Atom™/Pentium®/Celeron® X7-E3950, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
  • Model Name :
    AL051-BC-E3940
    Part Number :
    770-AL0511-100G
    Description :
    Fanless, Intel® Atom™/Pentium®/Celeron® X5-E3940, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
  • Model Name :
    AL051-BC-E3930
    Part Number :
    770-AL0511-000G
    Description :
    Fanless, Intel® Atom™/Pentium®/Celeron® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C

* N4200 is supported upon request with MOQ requirement.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    1 Audio cable
    Part Number :
    A81-022013-016G
    Description :
    Length: 160mm
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V, DC Jack
  • Item Name :
    1 COM port cable
    Part Number :
    A81-015038-016G
    Description :
    Length: 300mm
  • Item Name :
    USB port cable
    Part Number :
    A81-001061-016G
    Description :
    Length: 200mm
  • Item Name :
    Heat sink for up to 70/85°C / E Series CPU
    Part Number :
    A71-008111-000G
    Description :
    Height: 23mm
  • Item Name :
    Heat sink for 0 to 60°C
    Part Number :
    E Series CPU: A71-008107-000G, N Series CPU: A71-008108-000G
    Description :
    Height: 19mm
  • Item Name :
    2 pole terminal to DC Jack cable
    Part Number :
    A81-004013-000G
    Description :

Rugged Design and Energy-Efficiency for Deeply Embedded Applications

DFI launched new products to provide enhanced processing capability, low-power consumption, and brilliant graphic performance under Goldmont architecture with 14nm manufacturing node. Relying on DFI’s innovative abilities in design and manufacture, these products are small-sized, fanless, and support extended temperature range from -40°C up to +85°C, which makes it a perfect suite for many space-constrained and thermally limited embedded applications.

Wide Operating Temperature with Fanless Design

These products are able to survive under a wide -40°C to +85°C operating temperature range. Satisfying the demands of industries in harsh environments with the need of thermal solution designs. Also, this outstanding fanless design makes awesome system integration.

Energy Saving but High Performance

With the latest processor under Goldmont architecture, these boards offer 30% significant improvement for processing and intense graphic performance (Gen9), it also saves an average of 9 watts TDP energy.

Experience Clarity with 4K UHD High-Resolution

The new series powered by enhanced graphic engine from hardware decoding of HEVC and VP9 codecs supports 4K high resolution (DP: 4096x2304 @ 60Hz) and three independent displays for medical and multimedia solution.

Multiple Storage Choice: eMMC, SSD/ M.2 Module

As for storage, these new products will support high speed SATA 3.0 drives, SSD and eMMC 5.0 options up to 128GB. Specially, advanced M.2 interface that integrating multiple functions including Wi-Fi/LTE/mSATA is the ideal choice for automation, storage and design of IoT appliances.

Complete Product Line

Based on the new E3900 series processor, DFI has created a wide array of rugged and reliable industrial motherboards and modules, including Mini-ITX, SBC, Pico-ITX, COM Express, Qseven R2.1.

Endless IoT Possibilities with Windows 10 Compatibility

Collocating with Windows 10 platform characterized by its security functions, DFI’s E3900 series products featured small-sized and rugged-design and are ready to meet IoT demands. With the integration, these products can comprehensively help our clients simplify development of IoT-connected devices and generate total IoT solution.
