EC541-HD|Intel®|Industrial Computers|DFI

EC541-HD
Home Industrial Computers Embedded Fanless PC EC541-HD
  • 4th Gen Intel® Core™ Modular-Designed System
  • Supports DDR3 SODIMM up to 16GB
  • 2x 2.5" SATA drive bays, 1 CFast socket
  • 4 expansion slots: 1 PCIe x16, 3 PCI
  • 1 Vertical USB for securing data from unauthorized access
  • 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)

Status : EOL

EOL Transition : https://pages.dfi.com/please-take-action-to-transit-your-dfi-ec500-hd-series-system

Wide Voltage: 9~36V DC-in
Fanless Design
DP
Multiple Expansion
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
2014 Design Award
iF Award
2014 Computex DI Award
EC541-HD Embedded Solution Powered by: DFI Proprietary Motherboard

EC541-HD Related Tags

#Intel#Mini PCIe#Fanless Design#PCIe x16#Windows#Linux#HDMI#DVI-I#DVI-D#VGA#DP#Multiple Expansion#DDR3#RoHS Certification#CE Certification#FCC Certification#High-Performance

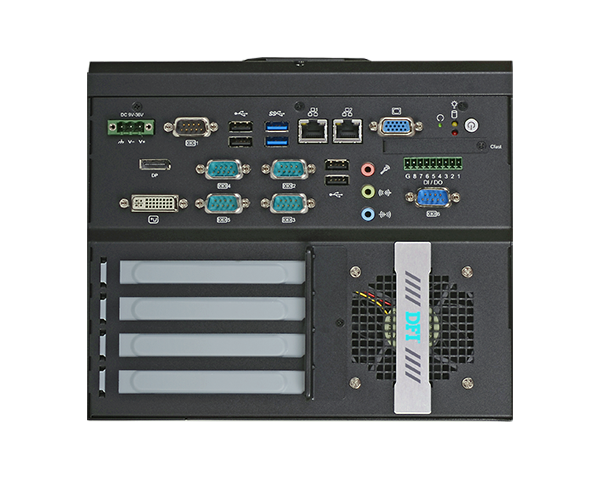

EC541-HD Modular-Designed System

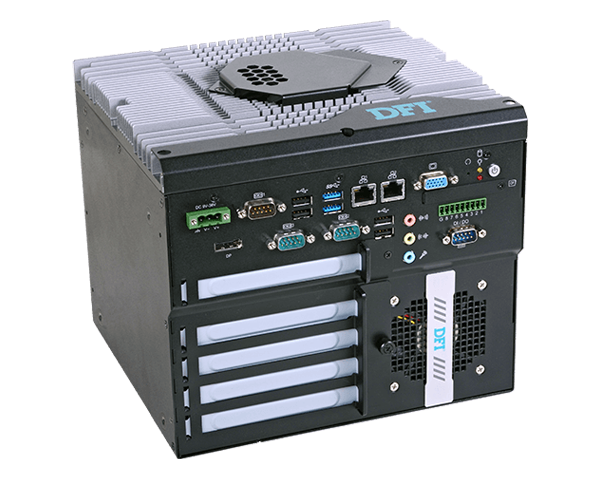

EC541-HD Modular-Designed System
System
Processor
CPU - Fanless:
4th Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-4770TE (8M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-4590T (6M Cache, up to 3.0 GHz); 35W
Intel® Core™ i5-4570TE (4M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-4350T (4M Cache, 3.1 GHz); 35W
Intel® Core™ i3-4340TE (4M Cache, 2.6 GHz); 35W
Intel® Core™ i3-4330TE (4M Cache, 2.4 GHz); 35W
Intel® Pentium® G3320TE (3M Cache, 2.3 GHz); 35W
Intel® Celeron® G1820TE (2M Cache, 2.2 GHz); 35W
CPU - Fan:
4th Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-4790S (8M Cache, up to 4.0 GHz); 65W
Intel® Core™ i7-4770S (8M Cache, up to 3.9 GHz); 65W
Intel® Core™ i5-4590S (6M Cache, up to 3.7 GHz); 65W
Intel® Core™ i5-4570S (6M Cache, up to 3.6 GHz); 65W
Intel® Core™ i3-4360 (4M Cache, 3.7 GHz); 54W
Intel® Core™ i3-4330 (4M Cache, 3.5 GHz); 54W
Intel® Pentium® G3420 (3M Cache, 3.2 GHz); 53W
Intel® Celeron® G1820 (2M Cache, 2.7 GHz); 53W
Chipset
Intel® H81 Express Chipset
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3 1333/1600MHz
Graphics
Controller
Intel® HD Graphics
Display
1 x VGA
1 x DVI-D
1 x DP
VGA: 24-bit, resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 3200x2000 @ 60Hz
HDMI: 1.4a, resolution up to 4096x2304 @ 24Hz
Dual Displays
1 x VGA + 1 x DVI-I
1 x VGA + 1 x DP
1 x DVI-I + 1 x DP
Storage
External/Internal
2 x 2.5" SATA 3.0 Drive Bays
1 x CFast Socket
Expansion
Interface
1 x PCIe x16
3 x PCI
1 x Full-size Mini PCIe (PCIe/USB/SATA)
Ethernet
Controller
1 x Intel® I210 PCIe (10/100/1000Mbps)
1 x Intel® I217 PCIe (10/100/1000Mbps)
LED
Indicators
1 x Status LED
1 x HDD LED
Front I/O
Ethernet
2 x GbE (RJ-45)
Serial
6 x RS-232/422/485 with Power (DB-9)
USB
2 x USB 3.0 (type A)
4 x USB 2.0 (type A)
Display
1 x VGA
1 x DVI-D
1 x DP
Audio
1 x Line-out
1 x Line-in
1 x Mic-in
DIO
1 x 8-bit DIO (9-pole terminal block)
Buttons
1 x Power Button with LED
1 x Reset Button
Cooling
Fan
2 System Fan
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
3-Pole Terminal Block
OS Support
OS Support
Windows XP (32-bit) (limited function)
Windows 7, WES 7, Windows 8, WE8S
Linux (Distribution available upon request)
Environment
Operating Temperature
Fanless
Operating: 0 to 45°C
Fan
Operating: 0 to 55°C (SSD/mSATA/CFast)
Operating: 0 to 50°C (HDD)
Storage Temperature
-20 to 85°C
Relative Humidity
5% ~ 90%
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall Mount
Dimensions (W x H x D)
235mm x 208.2mm x 222mm (W x H x D)
Weight
5.3kg
Standards and Certifications
Shock
Half Sine Wave 3G, 11ms, 3 Shock Per Axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 EC541 system unit
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC541-HD6860
    Part Number :
    750-EC5410-000G
    Description :
    With fan, i7/i5/i3, H81, 6 COM, 6 USB, 8-bit DIO, 3 PCI, 1 PCIe x16, RoHS
  • Model Name :
    EC541-HD6860
    Part Number :
    750-EC5410-100G
    Description :
    Fanless, i7/i5/i3, H81, 6 COM, 6 USB, 8-bit DIO, 3 PCI, 1 PCIe x16, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU
    Part Number :
    785-1150DL
    Description :
    CPU, LGA1150, Long-Term Support, RoHS
  • Item Name :
    8GB DDR3L
    Part Number :
    785-RSOD38G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS
  • Item Name :
    4GB DDR3L
    Part Number :
    785-RSOD34G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS
  • Item Name :
    2GB DDR3L
    Part Number :
    785-RSOD32G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 2GB, RoHS
  • Item Name :
    500GB HDD
    Part Number :
    785-H25500G
    Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    320GB HDD
    Part Number :
    785-H25320G
    Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    1TB SSD
    Part Number :
    785-S251TBG
    Description :
    2.5" SATA SSD, 1TB MLC, RoHS
  • Item Name :
    512GB SSD
    Part Number :
    785-S25512G
    Description :
    2.5" SATA SSD, 512GB MLC, RoHS
  • Item Name :
    256GB SSD
    Part Number :
    785-S25256G
    Description :
    2.5" SATA SSD, 256GB MLC, RoHS
  • Item Name :
    128GB SSD
    Part Number :
    785-S25128G
    Description :
    2.5" SATA SSD, 128GB MLC, RoHS
  • Item Name :
    64GB SSD
    Part Number :
    785-S25064G
    Description :
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    128GB mSATA
    Part Number :
    785-MS128GMF
    Description :
    mSATA Card, 128GB MLC, RoHS
  • Item Name :
    64GB mSATA
    Part Number :
    785-MS64GMF
    Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA
    Part Number :
    785-MS32GMF
    Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA
    Part Number :
    785-MS16GMF
    Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA
    Part Number :
    785-MS08GMF
    Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    4GB mSATA
    Part Number :
    785-MS04GMF
    Description :
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-110003-100G
    Description :
    120W, 19V/6.31A, Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC5410-000G
    Description :
    Wall Mount Kit, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
