SD331-C236|Intel®|Industrial Motherboards|DFI

SD331-C236
Home Industrial Motherboards microATX SD331-C236
  • 6th/7th Gen Intel® Core™ with Intel® C236
  • Rich I/O: 2 Intel GbE, 6 COM, 8 USB 3.0, 6 USB 2.0
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 LPC
  • Three independent displays: VGA + DVI-I + DP++
  • 4 DDR4 non ECC/ECC DIMM up to 64GB
  • 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
DP
Multiple Expansion
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification
Embedded Solution Powered by SD331-C236 :
WM343-SD331

WM343-SD331

WM343-SD331 Wallmount Box PC

Wallmount Box PC, 6th Gen Intel® Core™, DDR4, 2 PCIe x16, 2 PCIe x4, 1 VGA, 1 DVI, 1 DP

SD331-C236 Related Tags

#Intel#PCIe x16#Windows#Linux#DVI-I#DVI-D#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#UL Certification#CE Certification#FCC Certification
microATX Board Front

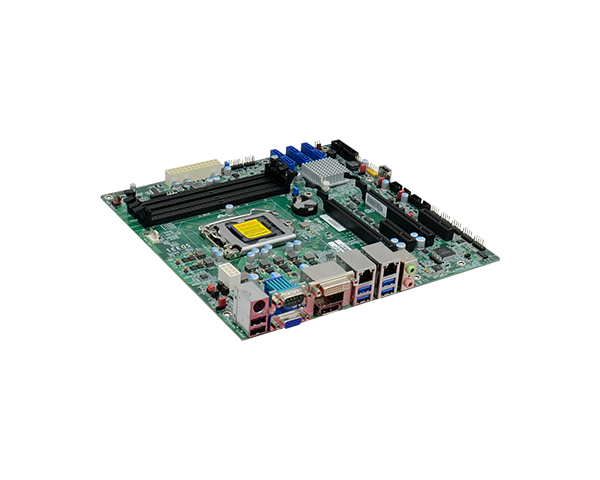

microATX Board Side
microATX Board I/O
System
Processor
6th/7th Generation Intel®/Xeon Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
Chipset
Intel® C236 Chipset
Memory
Four 288-pin non ECC/ECC DIMM up to 64GB
Dual Channel DDR4 1866/2133MHz (Note: Core i5/i7 only support non-ECC)
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Triple Displays
VGA + DVI-I (DVI-D signal) + DP++
Expansion
Interface
2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
2 x PCIe x4 (Gen 3)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (Note: only Xeon E3/ Core i7/i5 supports iAMT)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB
4 x USB 3.0 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch)
Audio
1 x Audio (Line-out/Mic-in) (opt., MOQ required)
1 x S/PDIF
SATA
6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
GPIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
opt., MOQ required
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: Xeon E3-1225 80W: 12V @ 3.8486A (46.183W); 5V @ 0.0198A (0.099W); 3.3V @ 0.0023A (0.0076W)
Max.: Xeon E3-1225 80W: 12V @ 6.8672A (82.406W); 5V @ 0.0338A (0.169W); 3.3V @ 0.0052A (0.0172W)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7 32/64-bit
Window 8.1 64-bit
Windows 10 64-bit
Linux
Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment
Temperature
Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery, -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
374,618 hrs @ 25°C; 211,926 hrs @ 45°C; 133,291 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
microATX form factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UL
Packing List
Packing List
1 SD331-C236 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-SD3300-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SD331-C236CRM
    Part Number :
    770-SD3314-100G
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 14 USB, 0 to 60°C
  • Model Name :
    SD331-C236CRM
    Part Number :
    770-SD3314-700G
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 14 USB, 1 TPM 2.0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    LPC EXT-RS485 module
    Part Number :
    770-EXTRS1-100G
    Description :
    4 x RS485 ports
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    A71-101158-000G
    761-103001-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    USB 3.0 port cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350mm
  • Item Name :
    LPC EXT-RS232 module
    Part Number :
    770-EXTRS1-000G
    Description :
    4 x RS232 ports
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
