KD330-H110

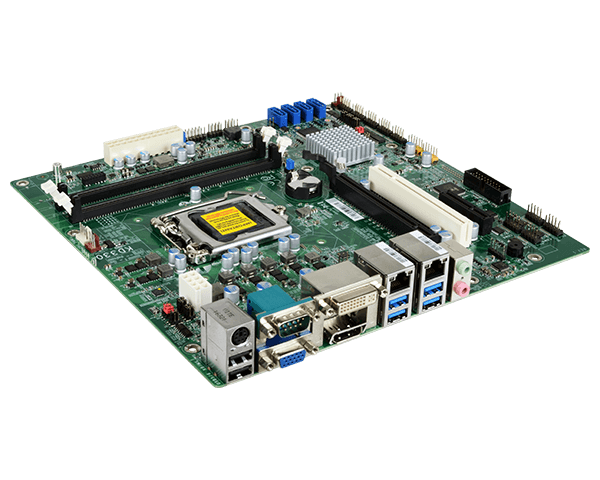

Industrial Motherboards microATX KD330-H110
  • 6th/7th Gen Intel® Core™ with Intel® H110
  • 2 DDR4 DIMM up to 32GB
  • Rich I/O: 2 Intel GbE, 6 COM(default), 4 COM(opt.), 4 USB 3.0, 6 USB 2.0
  • Three display ports: VGA, DVI-D, DP++ Supports three independent displays
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 PCI
  • 15-Year CPU Life Cycle Support

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
DP
Multiple Expansion
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification
KD330-H110 microATX
KD330-H110 microATX
System
Processor
6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W
Chipset
Intel® H110 Chipset
Memory
Two 288-pin DIMM up to 32GB Dual Channel DDR4 2133/2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + DVI-D + DP++
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
1 x PCI
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (default), 4 x RS-232 (opt., MOQ required)
USB
4 x USB 2.0 (2.54mm pitch)
Audio
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
opt., MOQ required
Power
Type
ATX
Connector
8-pin ATX 12V power 24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7 32/64-bit
Window 8.1 64-bit
Windows 10 64-bit
Ubuntu 16.04
Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Ubuntu 16.04.
Environment
Temperature
Operating: 0 to 60°C Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
microATX form factor 244mm (9.6") x 244mm (9.6")
Height
PCB: TBD Top Side: TBD, Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC
Packing List
Packing List
1 KD330-H110 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-SD3300-001G
1 DVD 643-KD3301-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KD330-H110
    Part Number :
    770-KD3301-000G
    Description :
    2 DDR4 DIMM, 2 LAN, 10 COM, 10 USB, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    332-253010-026G
    Description :
    Length: 350/398mm
  • Item Name :
    USB 3.0 port cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    D-SUB cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 DB9
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    552-200049-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 72.8mm
