HU968｜Intel®｜System-On-Modules｜DFI

HU968
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home System-On-Modules COM Express Compact HU968
  • 4th Gen Intel® Core™
  • Dual channel DDR3L 1600MHz Memory Down up to 8GB
  • 1 VGA, 1 LVDS, 1 DDI
  • Multiple expansion: 1 PCIe x4, 3 SATA 3.0, 1 LPC, 1 I2C, 1 SMBus
  • Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
  • 7-Year CPU Life Cycle Support Until Q2' 20 (Based on Intel IOTG Roadmap)

Status : EOL

EOL Transition : https://pages.dfi.com/please-take-action-to-transit-your-dfi-hu-series-system

Compact Size
1G Ethernet
VGA
Intel Active Management Technology
DDR3L
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

HU968 Related Tags

#Intel#Compact Size#1G Ethernet#Windows#HDMI#VGA#DDR3L#RoHS Certification#CE Certification#FCC Certification

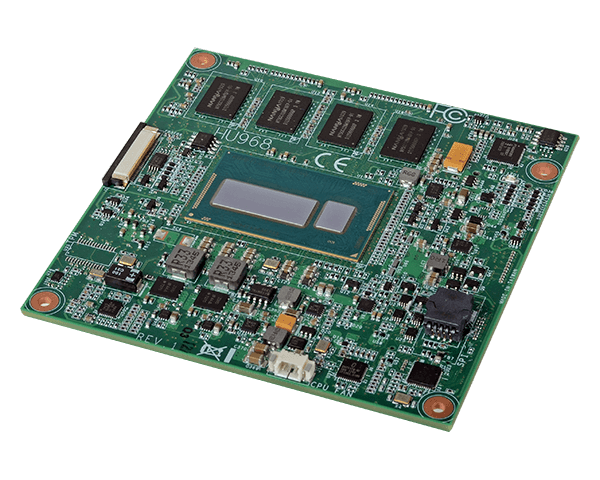

COM Express Type 6, HU968

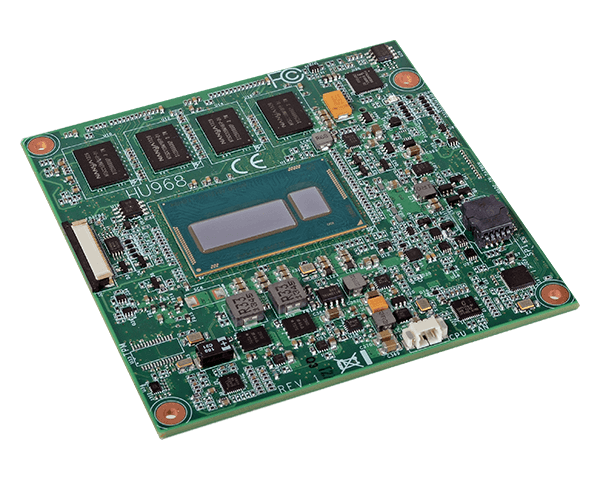

COM Express Type 6, HU968

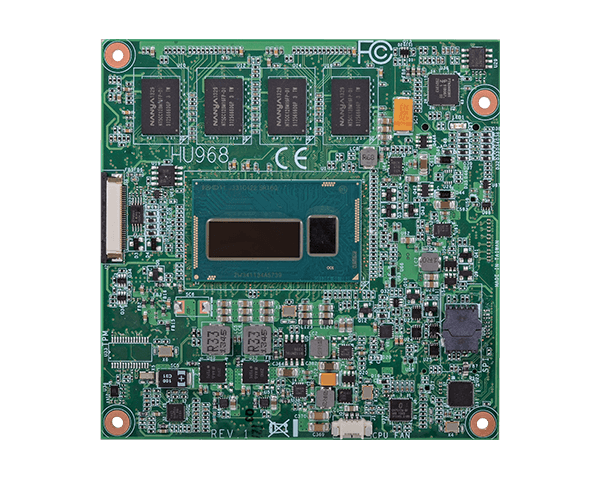

COM Express Type 6, HU968

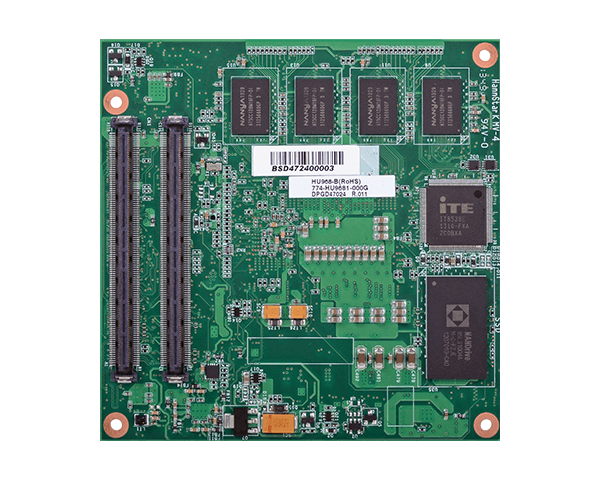

COM Express Type 6, HU968

Related Products:

Select All - Clear
System
Processor
4th generation Intel® Core™ processors, BGA 1168
Intel® Core™ i7-4650U, 4M Cache, up to 3.3 GHz, 15W
Intel® Core™ i5-4300U, 3M Cache, up to 2.9 GHz, 15W
Intel® Core™ i3-4010U, 3M Cache, 1.7 GHz, 15W
Intel® Celeron® 2980U, 2M Cache, 1.6 GHz, 15W
Memory
2GB/4GB/8GB DDR3L Memory Down
Dual Channel DDR3L 1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL up to 4.0, DirectX 11.1, OpenCL 1.2
Display
1 x VGA
1 x LVDS
1 x DDI (HDMI/DVI/DP)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI: resolution up to 4096x2160 @ 24Hz
DP: resolution up to 3200x2000 @ 60Hz
Expansion
Interface
1 x PCIe x4
1 x PCIe x2
1 x PCIe x1
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I218LM with iAMT9.5 (10/100/1000Mbps)
I/O
USB
2 x USB 3.0
8 x USB 2.0
SATA
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5
GPIO
1 x 4-bit GPIO (Default 4 inputs and 4 outputs)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20°C to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
680,852 hrs @ 25°C; 381,340 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 HU968 board
Heat spreader with heat sink and fan: 761-HU9681-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    HU968-B40-2980U     Part Number :
     770-HU9681-900G     Description :
    Fan, Intel Celeron 2980U, 4GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B40-4010U     Part Number :
     770-HU9681-800G     Description :
    Fan, Intel Core i3-4010U, 4GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B40-4300U     Part Number :
     770-HU9681-700G     Description :
    Fan, Intel Core i5-4300U, 4GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B40-4650U     Part Number :
     770-HU9681-600G     Description :
    Fan, Intel Core i7-4650U, 4GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B24-2980U     Part Number :
     770-HU9681-500G     Description :
    Fan, Intel Celeron 2980U, 2GB SODIMM DDR3L, 4GB SSD, 0 to 60°C
  • Model Name :
    HU968-B20-2980U     Part Number :
     770-HU9681-400G     Description :
    Fan, Intel Celeron 2980U, 2GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B20-4010U     Part Number :
     770-HU9681-300G     Description :
    Fan, Intel Core i3-4010U, 2GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B20-4300U     Part Number :
     770-HU9681-200G     Description :
    Fan, Intel Core i5-4300U, 2GB SODIMM DDR3L, 0 to 60°C
  • Model Name :
    HU968-B24-4650U     Part Number :
     770-HU9681-100G     Description :
    Fan, Intel Core i7-4650U, 2GB SODIMM DDR3L, 4 GB SSD, 0 to 60°C

* The following specifications will be available upon request. Please contact your sales representative for more information

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat sink with fan     Part Number :
     A71-111023-000G     Description :
  • Item Name :
    COM331-B carrier board kit     Part Number :
     770-COM331-000G     Description :
