SU171/SU173

Industrial Motherboards Mini-ITX SU171/SU173
  • 6th Gen Intel® Core™ Thin Mini-ITX
  • Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 4 USB 2.0
  • Multiple expansion: 1 PCIe x4, 1 Mini PCIe, 1 LPC
  • Three independent displays: LVDS*/eDP + HDMI*/DP + DP++
  • 2 DDR3L 1600MHz SODIMM up to 16GB
  • 15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
4K2K Display
DP
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

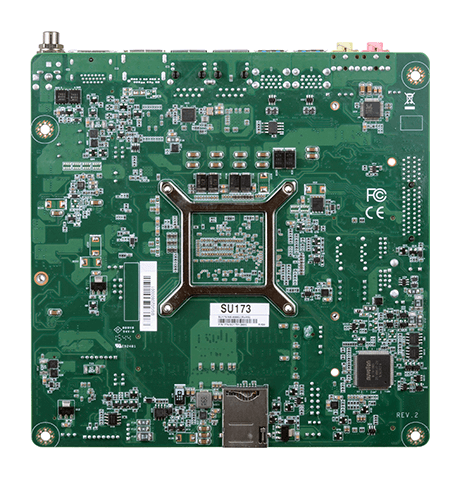

SU171/SU173 Mini-ITX

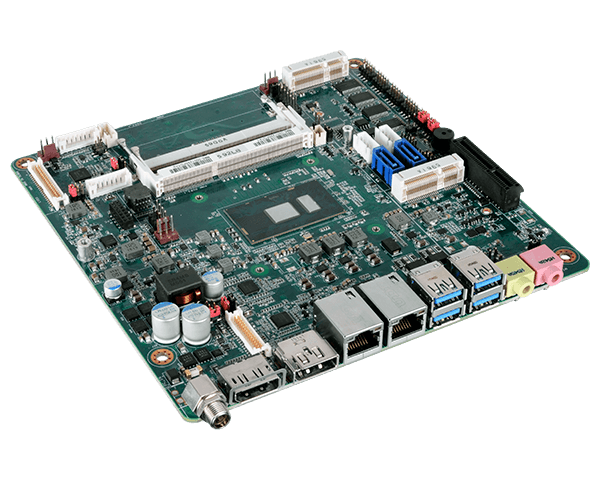

SU171/SU173 Mini-ITX

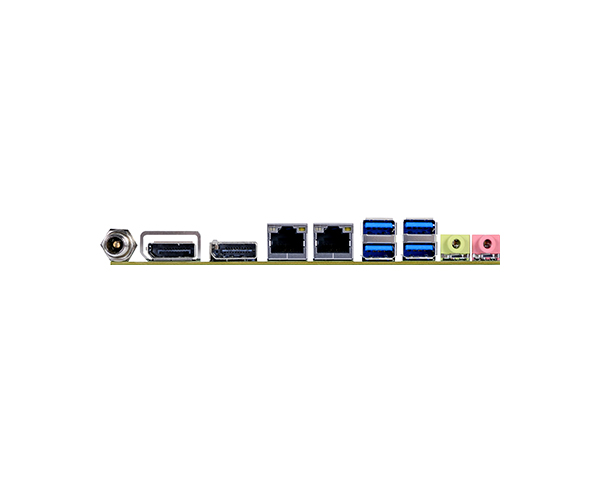

SU171/SU173 Mini-ITX
SU171/SU173 Mini-ITX
System
Processor
6th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3L 1600MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS/eDP (eDP available upon request)
1 x HDMI/DP (DP available upon request)
1 x DP++
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz
Triple Displays
LVDS + HDMI + DP++
LVDS + DP + DP++ (available upon request)
eDP + HDMI + DP++ (available upon request)
eDP + DP + DP ++ (available upon request)
Expansion
Interface
1 x PCIe x4 (Gen 3)
1 x SIM (available upon request)
1 x Full-size Mini PCIe (PCIe/USB/SATA)
1 x Full-size Mini PCIe (PCIe/USB)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0
Display
1 x HDMI/DP (DP available upon request) 1 x DP++
Audio
1 x Line-out 1 x Mic-in
Internal I/O
Serial
2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
2 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch) or
2 x USB 2.0 (2.0mm pitch) + 1 x Vertical USB 2.0 (type A) (available upon request)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
1 x eDP LCD Panel Connector
(available upon request)
Audio
1 x S/PDIF
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5
DIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM 2.0 (available upon Request)
Power
Type
Single 12V +/-10% DC (SU171) Wide Range 15~36V (SU173)
Connector
DC-in Jack Right Angle Connector (4-pin) (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption
SU171
Typical: 6600U:12V @ 0.98A (11.76Watt); 6300U:12V @ 0.95A (11.40Watt)
Max: 6600U:12V @ 1.62A (19.44Watt); 6300U:12V @ 1.58A (18.96Watt)
SU173
Typical: 6600U:19V @ 0.48A (9.12Watt); 6300U:19V @ 0.43A (8.170Watt)
Max: 6600U:19V @ 1.05A (19.95Watt); 6300U:19V @ 0.90A (17.10Watt)
RTC Battery
Lithium 3V (210mAH)
OS Support
OS Support
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
Environment
Temperature
Operating: 0 to 60°C / -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
SU171 : 357,691 hrs @ 25°C; 206,450 hrs @ 45°C ; 130,229 hrs @ 60°C
SU173 : 347,511 hrs @ 25°C; 200,230 hrs @ 45°C ; 126,434 hrs @ 60°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 16.5mm
Bottom Side: 3.5mm
Packing List
Packing List
1 SU171/SU173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
1 Heat sink (Height: 25mm) A71-010033-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SU173-NB-6600U
    Part Number :
    770-SU1731-300G
    Description :
    Fanless, Intel® Core™ i7-6600U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, 0 to 60°C
  • Model Name :
    SU173-NE-6600U
    Part Number :
    770-SU1731-400G
    Description :
    Fanless, Intel® Core™ i7-6600U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, -20 to 70°C
  • Model Name :
    SU173-NB-3955U
    Part Number :
    770-SU1731-000G
    Description :
    Fanless, Intel® Core™ 3955U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, 0 to 60°C
  • Model Name :
    SU171-NB-6300U
    Part Number :
    770-SU1711-200G
    Description :
    Fanless, Intel® Core™ i5-6300U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, 0 to 60°C
  • Model Name :
    SU171-NE-6600U
    Part Number :
    770-SU1711-400G
    Description :
    Fanless, Intel® Core™ i7-6600U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, -20 to 70°C
  • Model Name :
    SU171-NB-6600U
    Part Number :
    770-SU1711-300G
    Description :
    Fanless, Intel® Core™ i7-6600U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, 0 to 60°C
  • Model Name :
    SU171-NB-3955U
    Part Number :
    770-SU1711-000G
    Description :
    Fanless, Intel® Core™ 3955U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, 0 to 60°C
  • Model Name :
    SU173-NB-6300U
    Part Number :
    770-SU1731-200G
    Description :
    Fanless, Intel® Core™ i5-6300U, 2 DDR3L SODIMM, 1 LVDS, 1 HDMI, 2 LAN, 4 COM, 8 USB, 0 to 60°C

* i3-6100U is supported upon request with MOQ requirement

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Half height I/O shield
    Part Number :
    A49-SU1710-010G
    Description :
  • Item Name :
    DT122 Chassis
    Part Number :
    761-DT1220-200G
    Description :
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data with power cable
    Part Number :
    A81-002013-000G
    Description :
    Length: 300mm
  • Item Name :
    Power adapter
    Part Number :
    671-110002-100G
    671-112004-100G
    Description :
    100W, 12V, Level 6
    120W, 19V
  • Item Name :
    LPC EXT-RS232 module
    Part Number :
    770-EXTRS1-000G
    Description :
    4 x RS232 ports
  • Item Name :
    LPC EXT-RS485 module
    Part Number :
    770-EXTRS1-100G
    Description :
    4 x RS485 ports
  • Item Name :
    I/O shield
    Part Number :
    A49-SU1710-000G
    Description :
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm

*
