GH551

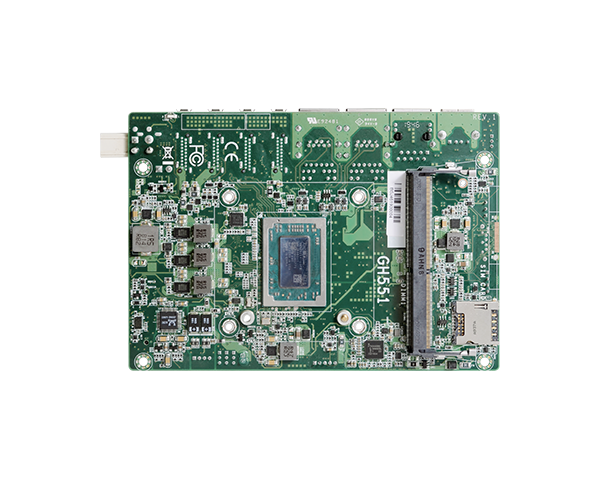

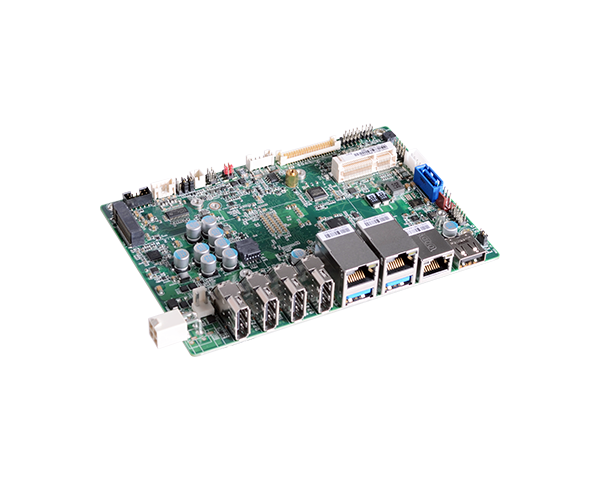

Industrial Motherboards 3.5" SBC GH551
  • Multiple displays: max. 4 DP++/3 DP++ + LVDS
  • AMD® Ryzen™ V1000/R1000 Series
  • Multiple Expansion: 1 M.2 M Key, 1 Mini PCIe
  • Rich I/O: 3 GbE, 2 USB 3.1 Gen2, 1 USB 2.0
  • 1 DDR4 2400MHz SODIMM up to 16GB

Status : Preliminary

Fanless Design
4K2K Display
Mini PCIe
12V DC-in
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
GH551
GH551
GH551
GH551
System
Processor
AMD® Ryzen™ Embedded V1605B, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W
AMD® Ryzen™ Embedded V1202B, 2C/4T, 1MB Cache, 3 CU, 2.3 GHz (3.2GHz), 15W
AMD® Ryzen™ Embedded V1404I, 4C/8T, 2MB Cache, 8 CU, 1.6GHz (2.8GHz), 15W
AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W
AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz),15W
Memory
1 x 260-pin SODIMM up to 16GB
Single Channel DDR4 up to 2400MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
AMD® Radeon™ Vega Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
V1000: 4 x DP++ (1 x LVDS opt.)
R1000: 3 x DP++(1 x LVDS opt.)
DP++: resolution up to 4096x2160 @ 120Hz
LVDS: resolution up to 1920x1200 @ 60Hz
Quad Displays
V1000: 4 x DP++ (1 x LVDS opt.)
R1000: 3 x DP++(1 x LVDS opt.)
Expansion
Interface
1 x Full-size mini-PCIe (PCIe/USB 2.0, opt.: USB 3.1 Gen 1)
1 x M.2 2280/2242 M key (Support SATA/PCIe SSD)
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
3 x Realtek® RTL8111HN/RTL8119I (10/100/1000Mbps)

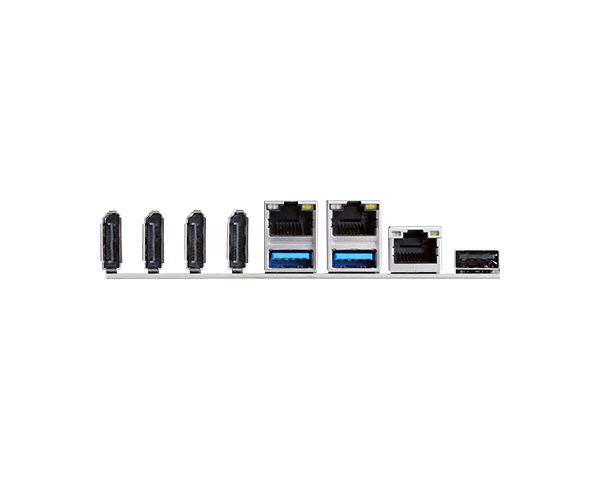

Rear I/O
Ethernet
3 x GbE (RJ-45)
USB
2 x USB 3.1 Gen2
1 x USB 2.0
Display
V1000: 4 x DP++
R1000: 3 x DP++
Internal I/O
Serial
1 x RS-232/422/485 (2.0mm pitch)
RS485 support auto flow control
USB
1 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x Backlight Power
Audio
1 x Mic-in
1 x Line-out
1 x Speaker-out (2 x 3W, 8ohm)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM2.0 (default)
dTPM2.0 (opt.)
Power
Type
Single 12V DC
Connector
4-pin Right Angle Type Connector (default)
DC Jack (available upon request)
4-pin Vertical Type Connector (available upon request)
Consumption
TBD
RTC Battery
CR2032 coin cell
Environment
Temperature
Operating: -5 to 65°C, -30 to 80°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
Height
PCB: 1.6mm
Top Side: 15.5mm, Bottom Side: 4.0mm
Packing List
Packing List
1 GH551 board
1 COM cable (2P ports, Length: 250mm) 332-753040-000G
SATA cable (Length: 500mm) 332-553001-005G
SATA power cable (Length: 250mm) A81-004041-016G
Heatsink (Height: 35.00mm) V series: A71-008136-010G/R series: A71-008136-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    GH551-BCI-V1605B
    Part Number :
    770-GH5511-000G
    Description :
    AMD® Ryzen™ Embedded V1605B, 1 DDR4, 3 LAN, 4 DP++, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C
  • Model Name :
    GH551-BCI-V1202B
    Part Number :
    770-GH5511-100G
    Description :
    AMD® Ryzen™ Embedded V1202B, 1 DDR4, 3 LAN, 3 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C
  • Model Name :
    GH551-BCI-R1606G
    Part Number :
    770-GH5511-300G
    Description :
    AMD® Ryzen™ Embedded R1606G, 1 DDR4, 3 LAN, 3 DP++, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C
  • Model Name :
    GH551-BCI-R1505G
    Part Number :
    770-GH5511-400G
    Description :
    AMD® Ryzen™ Embedded R1505G, 1 DDR4, 3 LAN, 2 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001032-016G
    Description :
    2 ports, Length: 200mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022007-016G
    Description :
    Length: 160mm
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W,12V
