PR810-C622

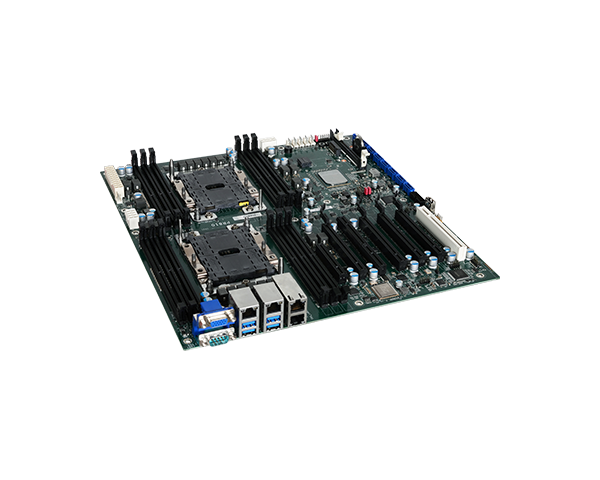

Industrial Motherboards EATX PR810-C622
  • Intel® 1st/2nd Xeon® Scalable Family
  • 12 DDR4 RDIMM up to 384GB
  • VGA resolution up to 1920x1200 @ 60Hz
  • Multiple expansion: 4 PCIe x16, 1 PCIe x8, 1 PCI, 1 M.2
  • Rich I/O: 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
  • 15-Year CPU Life Cycle Support Until Q3' 33 (Based on Intel IOTG Roadmap)

Status : Sample Available

PCIe x16
Multiple Expansion
10G Ethernet
15 Years CPU Life Cycle Support
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
PR810-C622
PR810-C622
PR810-C622
System
Processor
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
Chipset
Intel® C622 Chipset
Memory
12 x 288-pin RDIMM up to 384GB
Single Channel DDR4 up to 2133/2400/2666/2933 MHZ
(Support Intel DC Persistent Memory)
BIOS
Insyde
Graphics
Display
1 x VGA (opt.)
Single Display
VGA (opt.)
Expansion
Interface
4 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
1 x PCI
1 x M.2 M key2280 (PCIe Gen3 x4 NVMe/SATA)
1 x BMC Module slot for SEM2500/2510 (IPMI)
1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module
Audio
Audio Codec
ALC887
Ethernet
Controller
2 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® x557-AT2 (10GbE)

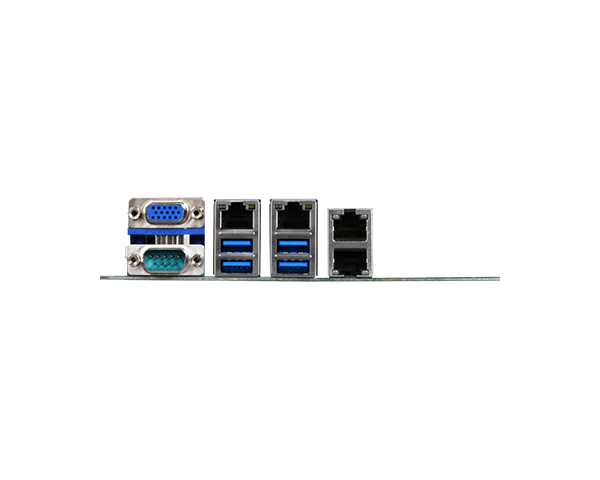

Rear I/O
Ethernet
2 x GbE (RJ-45)
2 x 10 GbE x557-AT2
IPMI 2.0: 1 share w/ i210AT (opt.)
Serial
1x RS-232 (DB-9)
USB
4x USB 3.1 Gen1
2x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)
Display
1 x VGA (opt.)
Internal I/O
Serial
1 x RS-232
USB
1 x USB 2.0 header (2x USB 2.0)
1 x USB 2.0 vertical Type A
1 x USB 3.1 Gen1 header (2x USB 3.1 Gen1)
SATA
8 x SATA 3 (up to 6Gb/s)
RAID 0/1/5/10
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 sec/Min
Security
TPM
TPM 2.0 (opt.)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Windows Server 2016
Linux
Environment
Temperature
Operating: 0 to 40°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
EATX Form Factor
305mm (12") x 330mm (13")
Height
PCB: TBD
Top Side: TBD mm Bottom Side: TBD
Packing List
Packing List
1 PR810-C622 motherboard
1 I/O shield
1 M.2 screw for 2280 A32-112016-041G
1 CPU clip 348-436471-100G
1 SEM 2500/2510 (by orderd P/N)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    PR810-C622IR
    Part Number :
    770-PR8101-000G
    Description :
    2 GbE, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0~40°C
  • Model Name :
    PR810-C622IRV
    Part Number :
    770-PR8101-100G
    Description :
    2 GbE, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 VGA, SEM2501-VGA, 0~40°C
  • Model Name :
    PR810-C622IRI
    Part Number :
    770-PR8101-200G
    Description :
    2 GbE, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 VGA, SEM2500-VGA/IPMI, 0~40°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350mm
  • Item Name :
    SATA cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    USB 3.1 Gen1 cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    Cooler
    Part Number :
    A71-101400-000G
    Description :
    Narrow ILM LGA 3647
  • Item Name :
    EXT-100GbE
    Part Number :
    770-EXT100-000G
    Description :

Working with DFI
