WL171/WL173

Industrial Motherboards Mini-ITX WL171/WL173
  • 8th Generation Intel® Core™ Processor Mini-ITX
  • DDR4 2400MHz SODIMM up to 64GB
  • LVDS + DP/HDMI + DP/HDMI (Auto-detecting)
  • DP++ resolution supports up to 4096x2304 @ 60Hz
  • Multiple expansion: 1 PCIe x4, 1 M.2 M Key (SATA/PCIe), 1 M.2 E key (PCIe/USB)
  • Storage: 2 SATA 3.0
  • Rich I/O: 2 Intel GbE, 4 USB 3.1, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)

Status : Sample Available

Wide Voltage: 9~36V DC-in
4K2K Display
DP
Multiple Expansion
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
WL171/WL173
WL171/WL173
WL171/WL173
System
Processor
8th Generation Intel® Core™ Processors, BGA 1528
Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W
Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W
Memory
2 x 260-pin SODIMM up to 32GB
DDR4 2400MHz/DDR4 2133MHz (for Celeron 4305UE)
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: H.264/AVC, VP8, VP9, VP9 10 Bit, H.265/HEVC 8 bit, H.265/HEVC 10 bit, MPEG2, MJPEG, VC-1
HW Encode: H.264/AVC, VP8*, VP9*, H.265/HEVC 8 bit, H.265/HEVC 10 bit, MPEG2, MJPEG (*VP8 and VP9 encode is not supported by Windows OS)
Display
1 x LVDS
2 x DP++/HDMI (Auto-detecting)
LVDS: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
Triple Displays
LVDS + DP++/HDMI + DP++/HDMI (Auto-detecting)
Expansion
Interface
4 x PCIe x4 (Gen 3)
1 x M.2 2242/2260/2280 M key (PCIe x4/SATA) (Support NVMe and Intel® Optane memory)
1 x M.2 2230 E key (PCIe/USB)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.6 and vPro (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

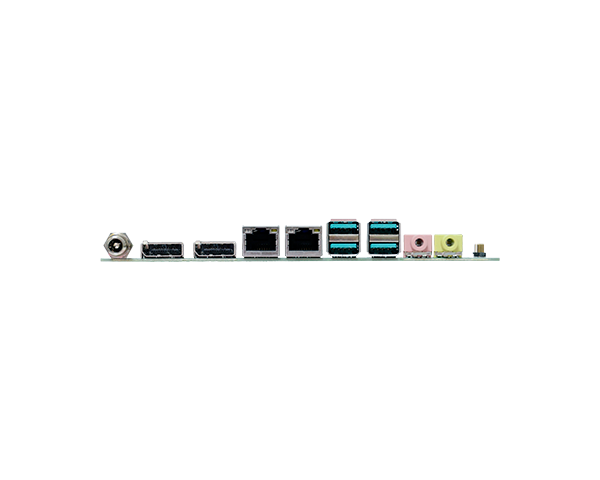

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.1 Gen2
Display
2 x DP++/HDMI
Audio
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
1 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS Box Header
Audio
1 x Front Audio Header
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5
DIO
1 x 8-bit DIO
1 x DIO Power
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM 2.0
Power
Type
Single 12V +/-5% DC (WL171)
Wide Range 9~36V (WL173)
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
Fedpra
CentOS 7 (with VESA graphic driver)
Yocto 2.6
Linux
Environment
Temperature
Operating: -5 to 65°C / -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 16.5mm, Bottom Side: 3.5mm
Packing List
Packing List
1 WL171/WL173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
1 Heat sink
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WL171-NE-8665UE
    Part Number :
    770-WL1711-000G
    Description :
    I7-8665UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -20~70°C
  • Model Name :
    WL171-NE-8365UE
    Part Number :
    770-WL1711-100G
    Description :
    I5-8365UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -20~70°C
  • Model Name :
    WL171-NB-8145UE
    Part Number :
    770-WL1711-200G
    Description :
    I3-8145UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -5~65°C
  • Model Name :
    WL171-NB-4305UE
    Part Number :
    770-WL1711-300G
    Description :
    Celeron 4305UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -5~65°C
  • Model Name :
    WL173-NE-8665UE
    Part Number :
    770-WL1731-000G
    Description :
    I7-8665UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -20~70°C
  • Model Name :
    WL173-NE-8365UE
    Part Number :
    770-WL1731-100G
    Description :
    I5-8365UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -20~70°C
  • Model Name :
    WL173-NB-8145UE
    Part Number :
    770-WL1731-200G
    Description :
    I3-8145UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -5~65°C
  • Model Name :
    WL173-NB-4305UE
    Part Number :
    770-WL1731-300G
    Description :
    Celeron 4305UE processor, 2 HDMI/DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -5~65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data with power cable
    Part Number :
    Length: 300mm
    Description :
    A81-002013-000G
  • Item Name :
    I/O shield
    Part Number :
    A49-WL1710-000G
    Description :
