GM330-BFF|AMD®|Industrial Computers|DFI

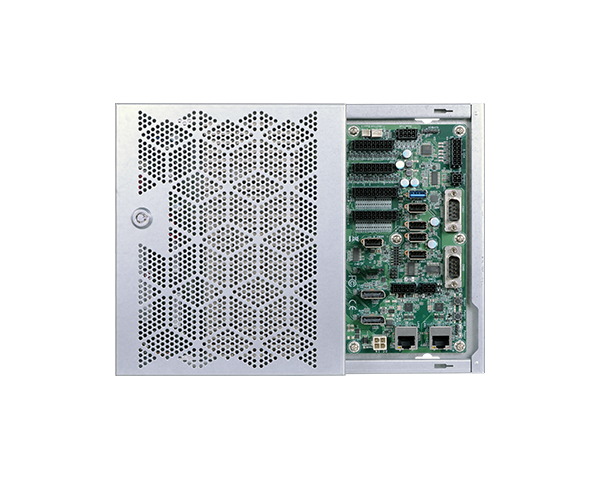

GM330-BFF
Home Application-Specific System Gaming Embedded System GM330-BFF
  • AMD® Embedded G-Series Processor
  • Comprehensive gaming features
  • 2 DP++, 5 COM, 7 USB, 2 LAN and M.2 support
  • 12V DC single input
  • Stereo audio amp output
  • 10-Year CPU Life Cycle Support Until Q4' 27 (Based on AMD Roadmap)

Status : EOL

4K2K Display
1G Ethernet
DP
12V DC-in
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
DFI Proprietary Motherboard

GM330-BFF Related Tags

#AMD#4K2K Display#1G Ethernet#Windows#Linux#DP#DDR4#RoHS Certification#Gaming
GM330-BFF
GM330-BFF
System
Processor
AMD® Embedded GX-217GI, Dual Core, 1MB Cache, 4 CU, 1.7GHz (2.0GHz), 12-25W
AMD® Embedded GX-224IJ, Dual Core, 1MB Cache, 3 CU, 2.4GHz (2.8GHz), 10-15W
AMD® Embedded GX-220IJ, Dual Core, 1MB Cache, 2 CU, 2.0GHz (2.2GHz), 10-15W
Memory
AMD® Embedded GX-217GI:
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 3200MHz
AMD® Embedded GX-224IJ / GX-220IJ:
One 260-pin SODIMM up to 16GB
Single Channel DDR4 3200MHz
BIOS
AMI BIOS
Graphics
Controller
AMD® Radeon™ Graphics
Feature
OpenGL 4.2, DirectX 12, OpenCL 1.2
Dual Displays
2 x DP++
DP++: resolution up to 3840x2160 @ 60Hz
Storage
Internal
2 x SATADOM with 7-pin VCC Support
Expansion
Interface
1 x M.2 M Key (2280, PCIe x4)
Note: No SATA support
Audio
Audio Codec
5.1 Channel Audio Output
S/PDIF Digital Output
Stereo 10W+10W Class D Audio AMP Output
Ethernet
Controller
2 x Realtek Ethernet LAN Controller (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232
1 x RS-232/422/485
1 x RS-232 (Tx, Rx)/ccTalk
2 x RS-232 (Tx, Rx)/SAS/BACTA
USB
2 x USB 3.0
5 x USB 2.0
Display
2 x DP++
Buttons
1 x Power Button
1 x Reset Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 1.2/2.0
Gaming
Intrusion Detection
8 x Intrusion Detections
Operates With and Without AC Power
Logs Date/Time of Last 64 Events
5 Years Data Retention during AC off
NVRAM
Supports up to 16Mbyte
Coin Battery Backup to Retain Data for 5 Years during AC off
Supports Battery Voltage Monitoring & Warning
DI/DO
32-bit Digital Input
32-bit OC output (29-bit x 500mA, support 8 meter with disconnect detection; 3-bit x 3A)
Power
Type
12V
Connector
2 x 2 mini-fit Vertical Connector
OS Support
OS Support
Windows 7/10 (64-bit)
Linux
Environment
Operating Temperature
0 to 45°C
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Mounting
Wall Mount
Dimensions (W x H x D)
270mm x 63mm x 200mm
Weight
3.235kg
Standards and Certifications
Shock
Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Non-Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operation:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min.
Non-Operation:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    GM330-BFF-217GI
    Part Number :
    750-GM3300-300G
    Description :
    AMD Embedded GX-217GI, 2 DP++, 5 COM, 7 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
  • Model Name :
    GM330-BFF-224IJ
    Part Number :
    750-GM3300-400G
    Description :
    AMD Embedded GX-224IJ, 2 DP++, 5 COM, 7 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
  • Model Name :
    GM330-BFF-220IJ
    Part Number :
    750-GM3300-500G
    Description :
    AMD Embedded GX-220IJ, 2 DP++, 5 COM, 7 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power Adapter and Cable
    Part Number :
    671-110006-100G
    A81-004110-009G
    Description :
    100W adapter; Input:100~240V; Output:12V/8.33A
    Power Cable, DC 5.5*2.5 to 2*2P/4.2mm, L=200mm
  • Item Name :
    SATADOM
    Part Number :
    638-706410-100G
    638-703212-110G
    Description :
    64GB, MLC, Pin7 VCC, INNODISK DESML-64GM41BCADCB-S70
    32GB, MLC, Pin7 VCC, INNODISK DESML-32GM41BCADCB-S70
  • Item Name :
    M.2
    Part Number :
    638-706411-100G
    638-703213-100G
    Description :
    64GB M.2 P80 3ME2, INNODISK DEM28-64GM61BCAQC
    32GB M.2 P80 3ME2, INNODISK DEM28-32GM61BCADC
  • Item Name :
    Memory
    Part Number :
    138-540002-101G
    138-580004-100G
    138-5G0163-100G
    Description :
    4GB DDR4 2400Mhz SO-DIMM 1Rx8 512Mx8
    8GB DDR4 2400Mhz SO-DIMM 1Rx8 1Gx8
    16GB DDR4 2400Mhz SO-DIMM 2Rx8 1Gx8
  • Item Name :
    Windows License
    Part Number :
    921-151350-000G
    Description :
    Win10 IoT Ent LTSC 2019 MultiLang OEI Entry EPKEA (ESD)
  • Item Name :
    Gaming Testing Kit
    Part Number :
    770-GM9001-080G






    Description :
    GM900 Testing Board (774-GM9001-080G)
    6 x Intrusion detection; 2x4p cable (A81-009231-016G)
    1 x Intrusion detection; 1x2p cable (A81-009232-016G)
    16 x DI; 2x10p cable (A81-009233-016G)
    16 x DI; 2x10p cable, (A81-009234-016G)
    16 x DO; 2x9p cable (A81-009235-016G)
    16 x DO; 2x9p cable (A81-009236-016G)
    USB type B to type A cable (A81-001073-016G)
