BW968

System-On-Modules COM Express Compact BW968
  • Intel® Pentium®/Celeron® N3000
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
  • Multiple expansion: 3 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
  • Three independent displays: VGA*/DDI + LVDS*/eDP + DDI
  • Dual channel DDR3L 1600MHz SODIMM up to 8GB
  • 15-Year CPU Life Cycle Support

Status : Launched

1G Ethernet
HDMI
Multiple Expansion
DDR3L
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

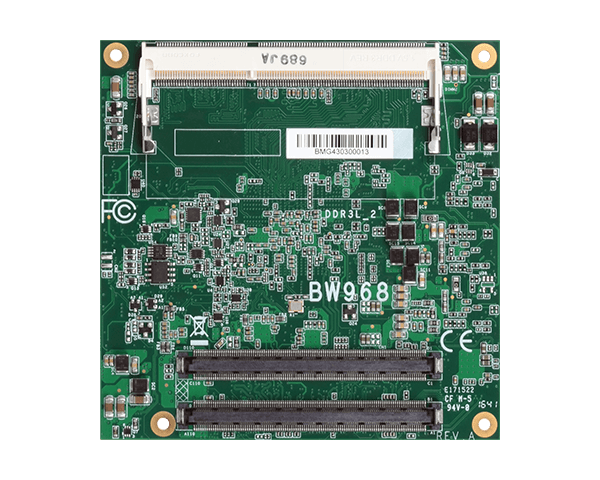

COM Express Type 6, BW968

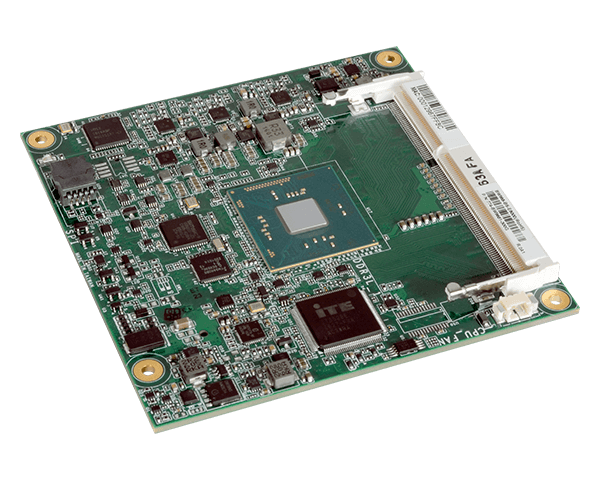

COM Express Type 6, BW968
COM Express Type 6, BW968
System
Processor
Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
Memory
Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz
BIOS
Insyde SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 2560x1440 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
Triple Displays
VGA + LVDS + DDI
DDI + eDP + DDI (available upon request)
Expansion
Interface
3 x PCIe x1 (Gen 2)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
I/O
USB
4 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
Consumption
Typical: N3710: 12V @ 0.28A (3.41Watt)
Max.: N3710: 12V @ 0.61A (7.35Watt)
OS Support
OS Support
Windows 8.1 64-bit
Windows 7 (/WES7) 32/64-bit
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
746,818 hrs @ 25°C; 402,691 hrs @ 45°C; 241,711 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Packing List
Packing List
1 BW968 board
1 Heat sink (Height: TBD): TBD
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BW968-BS-E8000
    Part Number :
    770-BW9681-300G
    Description :
    Fanless, Intel Atom x5-E8000, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    BW968-BS-N3710
    Part Number :
    770-BW9681-000G
    Description :
    Fanless, Intel Pentium N3710, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C
  • Model Name :
    BW968-BS-N3060
    Part Number :
    770-BW9681-200G
    Description :
    Fanless, Intel Celeron, N3060 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C

* N3160 and N3010 are supported upon request with MOQ requirement.
