AL05P

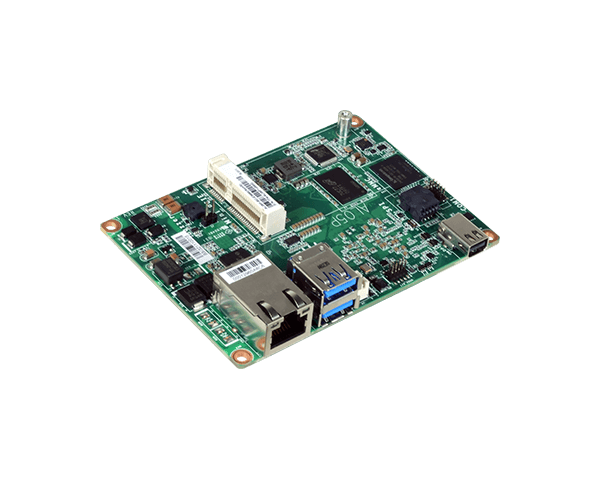

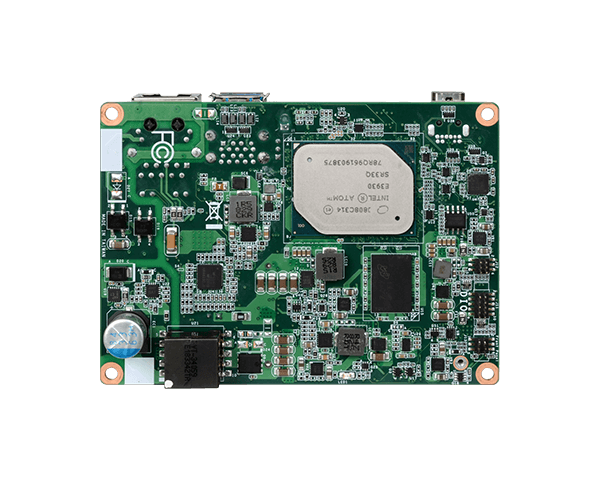

Industrial Motherboards 2.5" Pico-ITX AL05P
  • Intel® Pentium®/Celeron®/Intel Atom® Processor E3900
  • Support LPDDR4 memory down up to 4GB
  • Rich I/O: 1 LAN, 1 COM, 2 USB 3.0, 2 USB 2.0
  • Expansion and Storage: 1 Mini PCIe, 1 SMBus, 1 eMMC
  • PoE single board solution support PoE PD 48VDC
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide-temp: -20~70°C
4K2K Display
Mini PCIe
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
AL05P
AL05P
AL05P
AL05P
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
SDRAM Memory Down up to 4GB
Single Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x Mini DP++
Mini DP++: resolution up to 4096x2160 @ 60Hz
Storage
eMMC
1 x 16GB/32GB/64GB eMMC
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

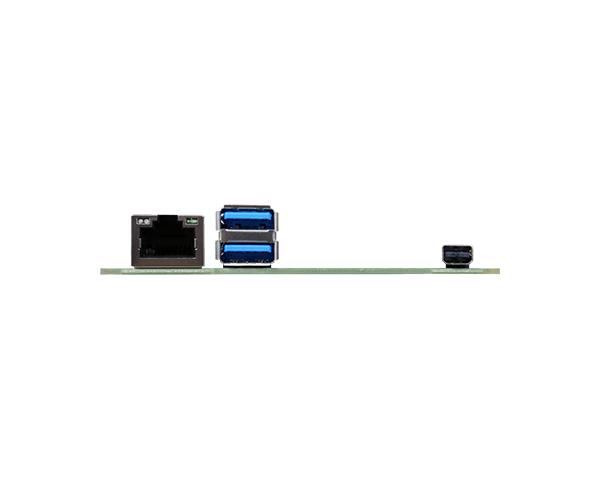

Rear I/O
Ethernet
1 x GbE (RJ-45)
USB
2 x USB 3.1 Gen1
Display
1 x Mini DP++
Internal I/O
Serial
1 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM 2.0
Power
Type
48VDC PoE
Connector
PoE LAN
Consumption
Typical: E3950:12V @ 0.33A (3.96Watt)
Max.: E3950:12V @ 1.76A (21.12Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise (64-bit) Linux
Environment
Temperature
Operating: 0 to 60°C, -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm
Top Side: 15mm, Bottom Side: 8mm
Packing List
Packing List
1 AL05P board
1 Heat spreader (Height: 15mm) E Series CPU: A71-808315-000G, N Series CPU: A71-808315-010G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    AL05P-BC-23E30
    Part Number :
    770-AL05P1-000G
    Description :
    Fanless, Intel Atom® X5-E3930, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, 0 to 60°C
  • Model Name :
    AL05P-BC-23E40
    Part Number :
    770-AL05P1-100G
    Description :
    Fanless, Intel Atom® X5-E3940, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, 0 to 60°C
  • Model Name :
    AL05P-BC-23N50
    Part Number :
    770-AL05P1-200G
    Description :
    Fanless, Intel® Celeron® N3350, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, 0 to 60°C
  • Model Name :
    AL05P-EC-23E30
    Part Number :
    770-AL05P1-400G
    Description :
    Fanless, Intel Atom® X5-E3930, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, -20 to 70°C
  • Model Name :
    AL05P-EC-23E40
    Part Number :
    770-AL05P1-500G
    Description :
    Fanless, Intel Atom® X5-E3940, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, -20 to 70°C

* Note: N4200 is supported upon request with MOQ requirement.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001061-016G
    Description :
    Length: 200mm
  • Item Name :
    1 COM port cable
    Part Number :
    A81-015038-016G
    Description :
    Length: 300mm
  • Item Name :
    Heat sink for E series CPU 0 to 60°C
    Part Number :
    E Series CPU: A71-008116-000G, N Series CPU: A71-008116-010G
    Description :
    Height: 28mm
