CS632-C246
Home Industrial Motherboards ATX CS632-C246
  • 9th/8th Gen Intel® Core™ with Intel® C246
  • 4 DDR4 DIMM up to 128GB (ECC/non ECC)
  • Multiple expansion: 1 PCIe x16 (x8/x8 signals as opt.), 3 PCIe x4, 2 PCI, 1 Mini PCIe, 1 M.2 M key, 1 SMBus, 1 LPC
  • 3 independent displays: VGA + DP++ + DP++
  • Rich I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 7 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
4K2K Display
PCIe x16
Windows
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

CS632-C246 Related Tags

#IoT#Intel#Mini PCIe#4K2K Display#PCIe x16#Windows#Linux#VGA#DP#DDR4#RoHS Certification#Legacy ISA/PCI Expansion Port
 CS632-C246
 CS632-C246
System
Processor
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket
Processors:
Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W
Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W
Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
Chipset
Intel® C246 Chipset
Memory
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666MHz (ECC/non ECC)
BIOS
SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
2 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Triple Displays
VGA + DP++ + DP++
Expansion
Interface
1 x PCIe x16 (Gen 3) (x8/x8 signals as opt., MOQ required)
3 x PCIe x4 (Gen 3)
2 x PCI
1 x Mini PCIe (PCIe/mSATA, share w/SATA conn. as opt./USB2.0)
1 x M.2 2242/2280 M key (PCIe x4 NVMe, Intel Optane Memory Support)
Audio
Audio Codec
Realtek ALC887 (ALC888 as opt.)
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Xeon/Core i7/i5 supports iAMT)

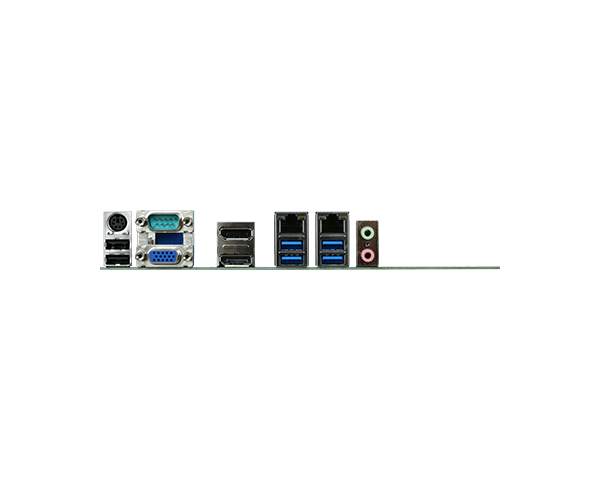

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.1 Gen1
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
2 x DP++
Audio
1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
Serial
5 x RS-232 (2.54mm pitch)
USB
2 x USB 3.1 Gen 2 (2.00mm pitch)
5 x USB 2.0 (2.54mm pitch) (4 x Pin Header, 1 x USB 2.0 vertical Type A)
Audio
1 x S/PDIF, 1 Front Audio Header
SATA
4 x SATA 3.0
RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM1.2/2.0 (opt., MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i7-8700K: 3.3V @ 0.35A (1.155Watt); 5V @ 0.62A (3.1Watt); 12V @ 0.54A (6.48Watt)
Max.: i7-8700K:3.3V @ 0.35A (1.155Watt); 5V @ 1.35A (6.75Watt); 12V @ 12.3A (147.6Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
582,202 hrs @ 25°C; 332,716 hrs @ 45°C; 207,812 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm
Standards and Certifications
Certifications
RoHS
Packing List
Packing List
1 CS632-C246 motherboard
1 Serial ATA data cable (Length: 500mm) A49-CS6310-000G
1 I/O shield A49-CS6310-000G
1 M.2 2242/half mini PCIe standoff A33-725019-090G
1 M.2 screw A32-112016-041G
1 mini PCIe screw A32-112016-041G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS632-C246CRM
    Part Number :
    770-CS6321-000G
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 13 USB, 0 to 60°C
  • Model Name :
    CS632-C246CRM
    Part Number :
    770-CS6321-200G
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 13 USB, 1 TPM 2.0, 0 to 60°C
  • Model Name :
    CS632-C246CRM
    Part Number :
    770-CS6321-400G
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 13 USB, w/ 2 PCIe x16, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350mm
  • Item Name :
    USB 3.1 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm, W/LOCK
  • Item Name :
    Thermal solution
    Part Number :
    A71-101107-000G
    A71-101158-000G
    761-103001-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    LPC EXT-RS232 module
    Part Number :
    770-EXTRS1-000G
    Description :
    4 x RS232 ports
  • Item Name :
    LPC EXT-RS485 module
    Part Number :
    770-EXTRS1-100G
    Description :
    4 x RS485 ports
  • Item Name :
    DP to HDMI dongle
    Part Number :
    612-D2H13M-000G
    Description :
