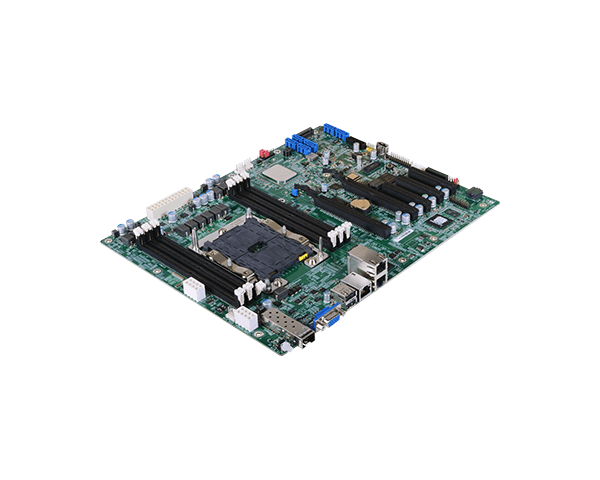

PL610-C622｜Intel®｜Industrial Motherboards｜DFI

PL610-C622
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards ATX PL610-C622
  • Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 1x Fiber 10 GbE, 1 COM, 6 SATA 3.0, 5 USB 2.0, 2 USB 3.0
  • Multiple expansion: 2 PCIe x16, 1 PCIe x8, 2 PCIe x4, 1 M.2
  • VGA resolution up to 1920x1200 @ 60Hz
  • 6 DDR4 ECC-RDIMM up to 384GB
  • Intel® Xeon® Scalable Processor with Intel® C622
  • 15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
VGA
Multiple Expansion
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

PL610-C622 Related Tags

#Server Boards#IoT#Intel#PCIe x16#Windows#Linux#VGA#Multiple Expansion#DDR4#RoHS Certification
PL610-C622
PL610-C622
PL610-C622

Related Products:

Select All - Clear
System
Processor
Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP up to 145W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
Chipset
Intel® C622 Chipset
Memory
Six 288-pin ECC-RDIMM up to 384GB
DDR4 1600/1866/2133/2400/2666 MHz
BIOS
Insyde SPI 128Mbit
Graphics
Display
1 x VGA
Single/Dual Displays
VGA
Expansion
Interface
2 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
2 x PCIe x4 (Gen 3)
1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA)
Audio
Audio Codec
N/A
Ethernet
Controller
GbE: i350-AM2
10GbE: CS4227
IPMI: RTL8211F

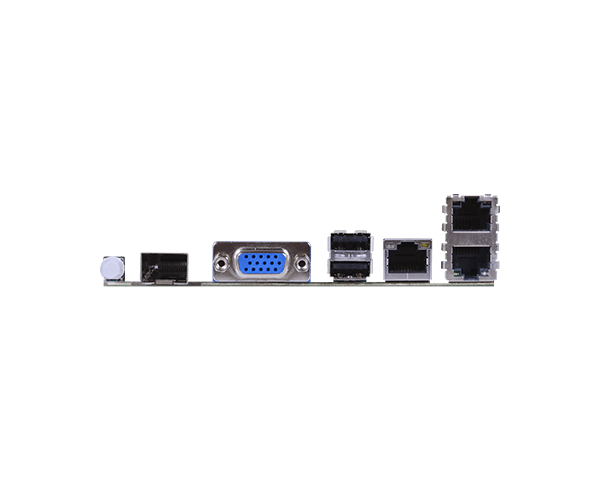

Rear I/O
Ethernet
2 x GbE (RJ-45)
1 x dedicated IPMI LAN
1x Fiber 10 GbE
USB
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
Internal I/O
Serial
1 x RS-232 (2.54mm pitch)
USB
2 x USB 2.0 (2.54mm pitch)
1 x Vertical USB 2.0
2 x USB 3.0
SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM 2.0 (optional)
Power
Type
ATX
Connector
8-pin ATX 12V power 24-pin ATX power
Consumption
Typical: 5120T: 3.3V @ 0.42A (1.386Watt); 5V @2.33A (11.65Watt); 12V @ 2.34A (28.08Watt)
Max.: 5120T:3.3V @ 0.43A (1.419Watt); 5V @ 2.4A (12.0Watt); 12V @ 12.51A (150.12Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise LTSB RS1(64-bit)
Windows Server 2012R2
Windows Server 2016
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
ATX Form Factor 305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 31.6mm
Bottom Side: 4mm
Packing List
Packing List
1 PL610-C622 motherboard
1 I/O shield A49-PL6100-000G
1 1 M.2 screw A32-112016-041G
1 CPU clip 348-436471-100G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    PL610-C622BI     Part Number :
     770-PL6101-000G     Description :
    6 DDR4 DIMM, 1 10GbE, 2 LAN, 1 COM, 2 USB 3.0, 5 USB 2.0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA cable     Part Number :
     332-553001-005G     Description :
    Length: 500mm
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350mm
  • Item Name :
    USB 3.0 port cable     Part Number :
     A81-001052-023G     Description :
    Length: 320mm
  • Item Name :
    LGA3647 cooler     Part Number :
     A71-101400-000G     Description :

Optimize Intensive-Workloads with High Agility and Scalability

In the era of IoT, more and more equipment are needed for heavy workload processing and intensive computing data transmission. To respond to these requirements, DFI is unveiling a server-grade ATX motherboard, PL610-C622, powered by Intel® Xeon® Scalable processors with Intel® C622 Chipset with high agility, reliability, and security. It features advanced performances with higher storage capacity, rich I/O interfaces, multiple expansion capabilities, and increased computing ability for server-driven data centers, industrial automation, high-end medical imaging, and more IoT applications.

Speed Up Workload Performance

Compared to previous generation (Intel® AVX2), PL610-C622 adopts Intel® AVX-512, the register width, which controls data processing of the CPU, increasing it from 256 to 512 bits. The performance is 2 times faster and boosts throughout for workload-optimized applications like data analytics, artificial intelligence (AI), image, and audio/video processing.

Ensure Information Security

Information security threats are recently evolving and enterprises, like telecom firm, that possesses massive customer database are seeking for a trustworthy security management system to protect critical information. PL610-C622 supports Intel® QuickAssist Technology (Intel® QAT) and Intel® Key Protection Technology (Intel® KPT) to guarantee data security and accelerate data compression without sacrificing performance.

Accelerate Data Communication

Since conventional GbE copper cannot fulfill the needs of transferring huge high definition image/video data, the presence of fiber GbE gets around the bottleneck. To meet this trend, PL610-C622 supports 1x Fiber 10 GbE, offering faster data transmission and higher bandwidth for vision inspection and HD resolution medical application.

Scale Up Server Management

The system administrators usually need to manage several servers simultaneously. Hence, the server-grade motherboards are ideally completed with dedicated IPMI LAN to enable efficient remote control and management. PL610-C622 also supports IPMI LAN for better server management, monitoring servers operation, and repairing errors independently even if CPU suddenly shut down or is damaged.

Maximize Expansion Possibilities

PL610-C622 provides versatile expansion interfaces up to 48 PCIe 3.0 and M.2 interface, delivering scalability and upgrading business capabilities. With rich expansion interfaces, PL610-C622 can be compatible with multiple devices such as motor control card, USB camera, and vision frame grabber for industrial automation and machine vision system.

Advance Cloud Computing

Cloud computing requires massive processing and consistent transmission to deal with the considerable data in the server. As a result, better memory bandwidth or capacity is necessity for intensive workloads. To meet demanding applications, PL610-C622 supports 6 DDR4 Memory RDIMM up to 384GB, providing 1.5 times more memory bandwidth than former generation.

Enpower Future IoT Applications

Owing to the growth of data generation and ad consumption in IoT applications, PL610-C622 is the most powerful server-grade alternative to scale up diverse applications in high-performance computing (HPC), artificial intelligence (AI), X-Ray, factory automation, hybrid-cloud data center, and more.
