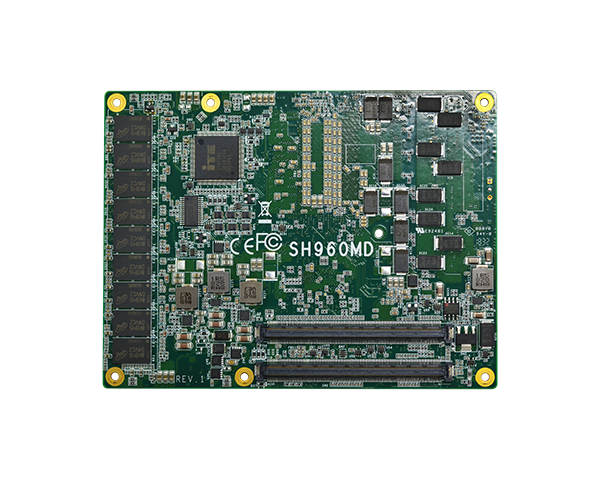

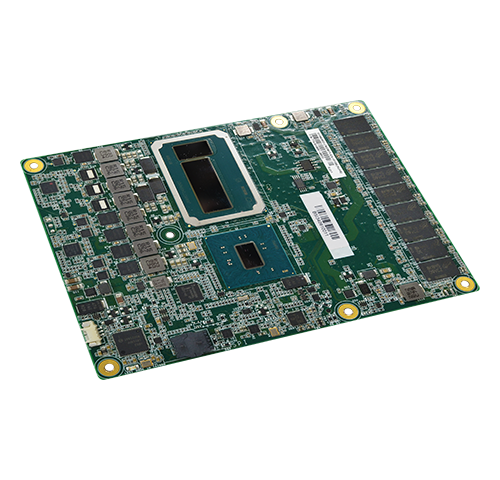

SH960MD-CM236/QM170

System-On-Modules COM Express Basic SH960MD-CM236/QM170
  • Dual channel DDR4 2400MHz onboard Memory up to 16GB
  • Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
  • eDP resolution supports up to 4096x2304 @ 60Hz
  • Multiple expansion: 1 PCIe x16, 8 PCIe x1
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
  • 15-Year CPU Life Cycle Support

Status : Preliminary

Wide-temp: -40°C~85°C
4K2K Display
PCIe x16
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
SH960MD-CM236/QM170 | 6th Gen Intel Core | Skylake | COM Express Basic | DFI
SH960MD-CM236/QM170 | 6th Gen Intel Core | Skylake | COM Express Basic | DFI
SH960MD-CM236/QM170 | 6th Gen Intel Core | Skylake | COM Express Basic | DFI
System
Processor
6th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® E3-1515M v5 Processor, Quad Core, 8M Cache, 2.8GHz (3.7GHz), 45W
Intel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45W
Intel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25W
Intel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35W
Intel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W
Chipset
Intel® CM236 Chipset (Support ECC)
Intel® QM170 Chipset
Memory
8GB/16GB DDR4 Memory Down
Dual Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
2 x DDI (HDMI/DVI/DP++)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
DP++/eDP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI or VGA + DDI1 + DDI2
eDP + 2 DDI (available upon request)
Expansion
Interface
1 x PCIe x16 or 2 x PCIe x8 (Gen 3)
8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I210IT with iAMT11.0 PCIe (10/100/1000Mbps)
I/O
USB
4 x USB 3.0
8 x USB 2.0
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
OS Support
OS Support
Windows 8.1 64-bit
Windows 7 (/WES7) 32/64-bit
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C (with heat spreader)
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Basic 95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R2.1, Type 6
Packing List
Packing List
1 SH960MD-CM236/QM170 board
1 DVD
1 Cooler (Height: 36.58mm): A71-111101-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SH960MD-CM236T1-E3-1515M
    Part Number :
    770-SH96M1-000G
    Description :
    Cooler, E3-1515M, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 16G DDR4 Memory Down, -40 to 85°C
  • Model Name :
    SH960MD-QM170T8-6442EQ
    Part Number :
    770-SH96M1-100G
    Description :
    Cooler, i5-6442EQ, 1 eDP, 1 DDI, 1 LAN, 4 USB 3.0, 8 USB 2.0, 8G DDR4 Memory Down, -40 to 85°C
  • Model Name :
    SH960MD-QM170T1-6820EQ
    Part Number :
    770-SH96M1-200G
    Description :
    Cooler, i7-6820EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 16G DDR4 Memory Down, -40 to 85°C
  • Model Name :
    SH960MD-HM170T8-6100E
    Part Number :
    770-SH96M1-300G
    Description :
    Cooler, i3-6100E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 8G DDR4 Memory Down, -40 to 85°C
  • Model Name :
    SH960MD-CM236T8-G3900E
    Part Number :
    770-SH96M1-400G
    Description :
    Cooler, G3900E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 8G DDR4 Memory Down, -40 to 85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM332-B carrier board kit
    Part Number :
    770-CM3321-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    TBD
    Description :
    Height: 11mm
