PR610-C621｜Intel®｜Industrial Motherboards｜DFI

PR610-C621
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards ATX PR610-C621
  • 1st/2nd Gen Intel® Xeon® Scalable Processor with Intel® C621
  • 6 DDR4 ECC-RDIMM up to 384GB
  • Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 2 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
  • Multiple expansion: 2 PCIe x16, 2 PCIe x8, 1 PCI, 1 M.2
  • 15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
4K2K Display
PCIe x16
VGA
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

PR610-C621 Related Tags

#Server Boards#IoT#Intel#4K2K Display#PCIe x16#Windows#Linux#VGA#DDR4#RoHS Certification#Legacy ISA/PCI Expansion Port
PR610-C621
PR610-C621
PR610-C621

Related Products:

Select All - Clear
System
Processor
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
Chipset
Intel® C621 Chipset
Memory
Six 288-pin ECC-RDIMM up to 384GB
Single Channel DDR4 up to 2933 MHZ
Support Optane DC persistent memory module(DCPMM) in DIMM3 and DIMM6 (2nd Gen Xeon Scalable (62xx/52xx/ 4215) processors only)
BIOS
Insyde SPI 128Mbit
Graphics
Display
1 x VGA (only with SEM2500/SEM2510)
Single Display
VGA (only with SEM2500/SEM2510)
Expansion
Interface
2 x PCIe x16 (Gen 3)
2 x PCIe x8 (Gen 3)
1 x PCI
1 x DDR4 SO-DIMM for SEM2500/2510 (opt.)
1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe)
Audio
Audio Codec
ALC887
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
IPMI: 1 x RTL8211F (only with SEM2500)

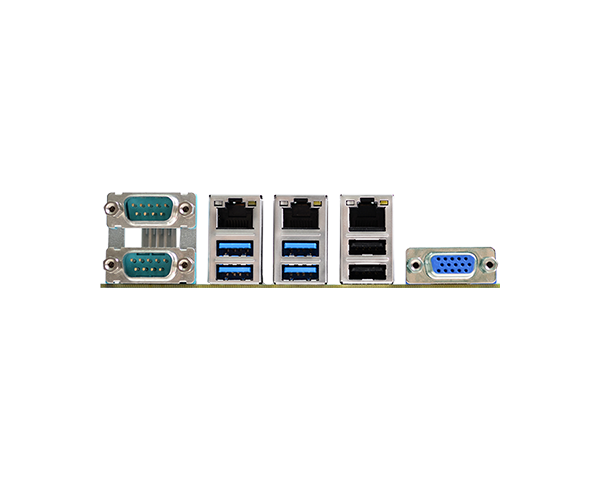

Rear I/O
Ethernet
2 x GbE (RJ-45)
1 x dedicated IPMI LAN (only with SEM2500)
USB
4x USB 3.1 Gen1
2x USB 2.0 stack
Display
1 x VGA (only with SEM2500/SEM2510)
Internal I/O
Serial
2 x RS-232 (DB-9)
USB
2x USB 2.0 header (2x USB 2.0)
1x USB 2.0 vertical Type A
1x USB 3.1 Gen1 header (2x USB 3.1 gen1)
SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 sec/Min
Security
TPM
TPM 2.0 (opt.)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: 5120T: 3.3V @ 0.42A (1.386Watt); 5V @2.33A (11.65Watt); 12V @ 2.34A (28.08Watt)
Max.: 5120T:3.3V @ 0.43A (1.419Watt); 5V @ 2.4A (12.0Watt); 12V @ 12.51A (150.12Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise LTSB RS5 (64-bit)
Windows Server 2012R2
Windows Server 2016
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing
MTBF
493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 31.6mm
Bottom Side: 4mm
Packing List
Packing List
1 PR610-C621 motherboard
1 I/O shield: A49-PR6100-020G for PR610-C621DR/A49-PR6100-010G for PR610-C621DRV/A49-PR6100-000G for PR610-C621DRI
1 M.2 screw for 2280 A32-112016-041G
1 SEM2500/2510 (by ordered P/N)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    PR610-C621DR     Part Number :
     770-PR6101-000G     Description :
    2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 0 to 60°C
  • Model Name :
    PR610-C621DRV     Part Number :
     770-PR6101-100G     Description :
    2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 VGA, BMC Module: SEM2510-VGA, 0 to 60°C
  • Model Name :
    PR610-C621DRI     Part Number :
     770-PR6101-200G     Description :
    2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 IPMI-Mgnt, BMC Module: SEM2500-VGA/IPMI, 0 to 60°C
  • Model Name :
    PR610-C621DR     Part Number :
     774-PR6101-300G     Description :
    2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 TPM 2.0, 0 to 60°C
  • Model Name :
    PR610-C621DRV     Part Number :
     774-PR6101-400G     Description :
    2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 VGA, BMC Module: SEM2510-VGA, 1 TPM 2.0, 0 to 60°C
  • Model Name :
    PR610-C621DRV     Part Number :
     774-PR6101-500G     Description :
    2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 IPMI-Mgnt, BMC Module: SEM2500-VGA/IPMI, 1 TPM 2,0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350mm
  • Item Name :
    Cooler     Part Number :
     A71-101400-000G     Description :
    Narrow ILM LGA 3647
  • Item Name :
    USB 3.1 Gen1 cable     Part Number :
     A81-001052-023G     Description :
    Length: 320mm
  • Item Name :
    Serial ATA cable     Part Number :
     332-553001-005G     Description :
    Length: 500mm

PR610-C621: A Big Leap Toward AIoT

Performance Maximized, Complexity Minimized. DFI PR610-C621, driven by 2nd Gen Intel® Xeon® Scalable Processors, is inherently designed to boost the next-gen AI and deliver creativity and ingenuity with deterministic performance. With groundbreaking memory innovation, it simplifies but accelerates diverse compute-intensive work, like machine learning or cloud-scale computing, optimizing and magnifying business performance.

Extreme Speed of Data R/W

PR610-C621 is compatible with Intel® Optane™ DC persistent memory, delivering a unique combination of affordable large memory capacity and persistence to realize extreme speed of data reading and writing.

Accelerate Machine Learning

With built-in Intel® Deep Learning Boost, PR610-C621 significantly accelerates inference performance for deep learning & AI workloads and adopts Intel® AVX-512 to facilitate signal and image processing.

Enhanced I/O and Expansion Interfaces

PR610-C621 supports abundant expansion interfaces up to 48 PCIe 3.0, 1 M.2, 6 USB 3.1, 6 SATA and 1 IPMI LAN, offering highly scalability and upgraded capabilities.

Improved Server Management and Security

By adopting optimized error containment with enhanced Intel® Run Sure Technology, previously fatal errors can be avoided. Further, PR610-C621 supports flexible IPMI module to fulfill better server management, which is upon customers’ request, to enhance the flexibility while reaching cost-efficiency.
