CS101-H310

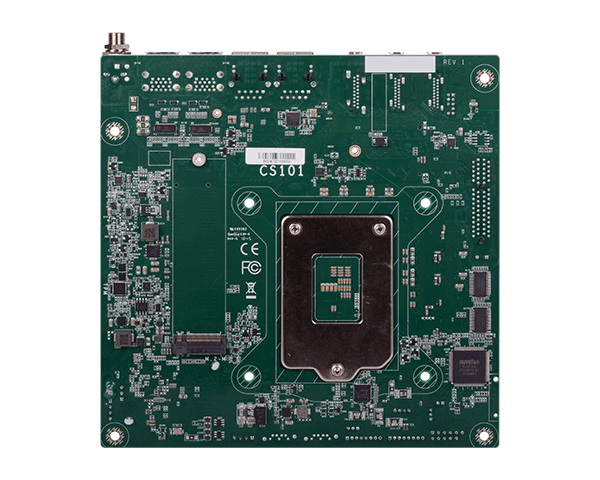

Industrial Motherboards Mini-ITX CS101-H310
  • 8th Gen Intel® Core™ with Intel® H310
  • 2 DDR4 2666MHz SODIMM up to 32GB
  • Dual/Three independent displays: LVDS + HDMI + DP++
  • Multiple Expansions: 1 PCIe x4 Gen 3, 1 mSATA, 1 M.2 2230 E Key
  • Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Sample Available

COM ESD Protection: Air Gap ±15kv
4K2K Display
Windows
HDMI
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CS101-H310
CS101-H310
CS101-H310
System
Processor
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W
Intel® Xeon E-2176G Processor
Intel® Core™ i7-8700 Processor
Intel® Core™ i5-8500 Processor
Intel® Core™ i3-8100 Processor
Intel® Pentium G5400 Processor
Intel® Celeron G4900 Processor
Chipset
Intel® H310 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )
Feature
OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS/eDP (eDP available upon request)
1 x HDMI
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz
Dual Displays/ Triple Displays
DP++ +DP++, DP++ +VGA, DP++ +LVDS, VGA+LVDS
Expansion
Interface
1 x PCIe x4 (Gen 3)
1 x mSATA
1 x M.2 2230 E Key (USB/PCIe)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I219V PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps)

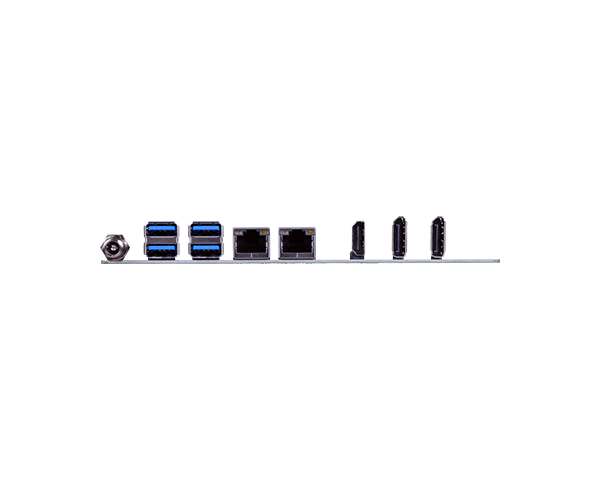

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.1 Gen1 Type A Connector
Display
1 x HDMI
2 x DP++
Internal I/O
Serial
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (RS-232 w/ power)(2.0mm pitch)
USB
4 x USB 2.0
Display
1 x LVDS Connector
1 x eDP (available upon request)
Audio
1 x Front Audio
SATA
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM 2.0
Power
Type
12V DC-in
Connector
DC jack colay 4 pins power connector (opt.)
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm
Packing List
Packing List
1 CS101 motherboard
1 Serial ATA data with power cable (Length: 300mm): A81-002013-000G
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS101-H310
    Part Number :
    770-CS1011-000G
    Description :
    Fanless, 2 DDR4 SODIMM, 2 LAN, 4 COM, 8 USB, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data with power cable
    Part Number :
    A81-002013-000G
    Description :
    Length: 300mm
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    Description :
    For 35W, Height: 37.3mm
  • Item Name :
    Thermal solution
    Part Number :
    552-200049-000G
    Description :
    For 65W, Height: 72.8mm

Based on 8th Gen Intel® Core™ Processors

DFI’s brand new board series with 8th Generation Intel® Core™ processors are ideally designed for what’s coming in the new era. We have a full form factor lineup from Mini-ITX, micro-ATX, ATX, to SOM integrated with better CPU performance support with up to 6 processor cores increasing 10% performance than previous generation even when multitasking.

Complete Product Line

DFI offers a complete product series from different form factor motherboards like ATX, microATX, Mini-ITX, and system-on-modules based on 8th Generation Intel® Core™ Processor Family with high-performance design. It is able to be perfectly fitted into different applications.

Optimized Productivity & Responsiveness

DFI’s product series are supported with Intel® Optane™ memory to accelerate computer’s responsiveness to multitask workloads without wasting too much time. Additionally, our products support with 64 GB DDR4 RAM memory up to 2666 MHz to enhance better memory bandwidth and memory transfer speeds. DFI’s motherboard comes with an M.2 (2280) to support NVMe drives with write speeds up to 3500MB/s which are 7 times over SATA SSDs.

Improved and Multiple I/O Options

Our product series with 8th gen processors adopt the newest technology USB Type-C and USB 3.1 Gen2 to benefit data transfer rates of up to 10 Gbps. It’s two times faster than USB 3.0. Furthermore, our ATX motherboard series come with Intel Q370 chipset and 24 PCIe lanes, which have 4 more PCIe lanes than the Intel Q170 chipset motherboard. This enables rich I/Os and multiple expansions, making it an ideal solution for machine vision and industrial automation application.

Fantastic Visual Performance

DFI’s completed product series with Intel 8th gen processors have the capability of delivering advanced 4K video experiences supported with resolution higher than 1080p and high quality UHD streaming media for applications such as digital signage, digital security, and surveillance.

Enhanced Security Protection

For defending equipment from external threats of security awareness, DFI’s motherboards are available with the advanced feature of iAMT 12.0 for remote management and repair of systems. Aside from iAMT 12.0, DFI’s motherboards are supported with TPM 2.0 for protecting confidential data and improving system integrations.
