PIC-Q170/H110

Overview

Home Industrial Motherboards PICMG 1.3 PIC-Q170/H110

7/6th Gen Intel® Core™ with Intel® Q170/H110

Rich I/O: 2 Intel GbE, 4 USB 3.0, 6 USB 2.0

2 DDR4 DIMM up to 32GB

Expansion Interface: 1 PCIe x16 Gen. 3, 4 PCIe x1 Gen. 3, 4 PCI, 1 M.2 2280 M Key

2 independent displays: VGA + DVI-D (available upon request)

DVI resolution up to 1920x1200 @ 60Hz

15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

+Compare +Quotation

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW

Quotation
You have ,Up to 3 items.
QUOTE NOW

PIC-Q170/H110 Related Tags

#IoT#Intel#4K2K Display#PCIe x16#Windows#Linux#DVI-D#VGA#DDR4#RoHS Certification#CE Certification#FCC Certification

System

Processor

7th Generation Intel® Core™ Processors, LGA1151
Intel® Core™ i7-7700 Processor, Four Core, 8M, 3.6GHz (4.2GHz), 65W
Intel® Core™ i7-7700T Processor, Four Core, 8M, 2.9GHz (3.8GHz), 35W
Intel® Core™ i5-7500 Processor, Four Core, 6M, 3.4GHz (3.8GHz), 65W
Intel® Core™ i5-7500T Processor, Four Core, 6M, 2.7GHz (3.3GHz), 35W
Intel® Core™ i3-7101E Processor, Dual Core, 3M, 3.9GHz , 54W
Intel® Core™ i3-7101TE Processor, Dual Core, 3M, 3.4GHz , 35W
Intel® Core™ G3930E Processor, Dual Core, 2M, 2.9GHz, 54W
Intel® CoreTM G3930TE Processor, Dual Core, 2M, 2.7GHz, 35W
6th Generation Intel® CoreTM Processors, LGA1151
Intel® CoreTM i7-6700 Processor, Four Core,8M, 3.4GHz (4.0GHz), 65W
Intel® CoreTM i7-6700TE Processor, Four Core,8M, 2.4GHz (3.4GHz), 35W
Intel® CoreTM i5-6500 Processor, Four Core,6M, 3.2GHz (3.6GHz), 65W
Intel® CoreTM i5-6500TE Processor, Four Core,6M, 2.3GHz (3.3GHz), 35W
Intel® CoreTM i3-6100 Processor, Dual Core,4M, 65W
Intel® Core™ i3-6100TE Processor, Dual Core,4M, 2.7GHz, 35W
Intel® Pentium® G4400 Processor, Dual Core,3M, 3.3GHz, 65W
Intel® Pentium® G4400TE Processor, Dual Core,3M, 2.9GHz, 35W
Intel® Celeron® G3900 Processor, Dual Core,2M, 2.8GHz, 65W
Intel® Celeron® G3900TE Processor, Dual Core, 2M, 2.6GHz, 35W

Chipset

Intel® Q170/H110 Chipset

Memory

Two 288-pin DIMM up to 32GB
Dual Channel DDR4 1866/2133MHz

BIOS

Insyde SPI 128Mbit

Graphics

Display

1 x VGA
1 x DVI-D (available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz

Dual Displays

VGA + DVI-D (available upon request)

Expansion

Interface

1 x PCIe x16 Gen. 3
4 x PCIe x1 Gen. 3
4 x PCI
[Q170]1 x M.2 M key 2280 (PCIe/SATA3.0)

Ethernet

Controller

[Q170] 1 x Intel® I219LM PHY
[Q170]1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)
[H110] 1 x Intel® I219V PHY
[H110]1 x Intel® I211AT PCIe (10/100/1000Mbps)

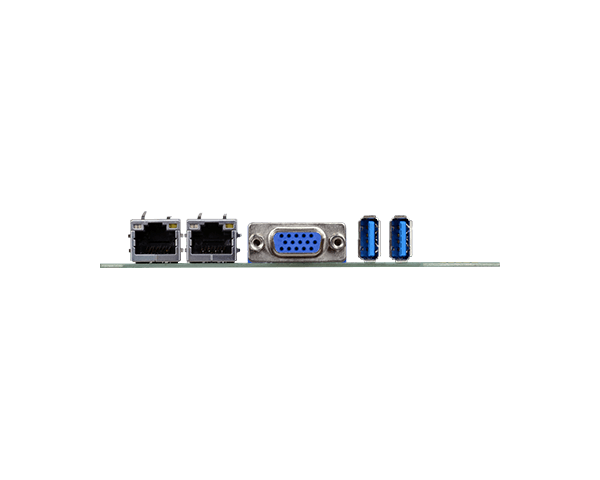

Rear I/O

Ethernet

2 x GbE (RJ-45)

USB

2 x USB 3.0

Display

1 x VGA
1 x DVI-D (available upon request)

Internal I/O

Serial

2 x RS232/422/485 (2.54mm pitch)
2 x RS232 (2.54mm pitch)

USB

[Q170]2 x USB 3.0 (2.0mm pitch)
[Q170]6 x USB 2.0 (2.54mm pitch)
[H110]4 x USB 2.0 (2.54mm pitch)

SATA

4 x SATA 3.0 (up to 6Gb/s)

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

Other I/O

ATX 12V Power Connector and Expansion Goldfinger

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Security

TPM

fTPM 2.0/dTPM 2.0(optional)

Power

Consumption

Idle: i7-6700 65W: 12V @ 0.57A (6.84W), 5V @ 0.72A (3.6W), 3.3V @ 0.41A (1.353W)
Max: i7-6700 65W: 12V @ 7.19A (86.28W), 5V @ 0.94A (4.7W), 3.3V @ 0.41A (1.353W)

OS Support

Microsoft

Windows 7 (32/64 bit)
Windows 8.1 (64 bit)
Windows 10 IoT Enterprise (64 bit)
Note: 7th Gen Intel Core processors only support Win 10.

Linux

Environment

Temperature

Operating: 0 to 60°C
Storage: -40 to 85°C

Humidity

Operating: 5 to 90% RH

MTBF

PIC-Q170/H110: 666,097 hrs @ 25°C; 404,733 hrs @ 45°C; 263,381 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled

Mechanism

Dimensions

Full Size PICMG 1.3 338mm (13.3") x 126.39mm (4.98")

Height

PCB: 1.6mm
Top Side: 20.95mm
Bottom Side: 4.4mm

Standards and Certifications

Certifications

CE, FCC, RoHS

Packing List

1 PIC-Q170/H110 board
1 Dual USB2.0 port cable (with bracket) A81-001066-016G
2 COM port cable (with bracket) 332-700730-104G
2 Serial ATA data cable 332-553001-005G

Country of Origin

Taiwan (TAA Compliant Country)

Product Collaterals

Industrial Motherboards & Embedded SBCs Catalog (PDF) 7.31MB 2024/04/23

PIC-Q170/H110 Datasheet (PDF) 822.14KB 2022/12/12

Technical Documents

PIC-Q170/H110 QR (PDF) 616.77KB 2019/07/15

PIC-Q170/H110 Manual (PDF) 6.47MB 2021/01/12

PIC-Q170/H110 CPU/Memory Compatibility List (PDF) 186.33KB 2020/06/17

Certifications

PIC-Q170 CE Certification (PDF) 410.61KB 2019/10/06

PIC-Q170 FCC Certification (PDF) 346.91KB 2019/10/06

PIC-Q170 RoHS Certification (PDF) 50.94KB 2020/03/25

PIC-Q170 RoHS Certification (PDF) 664.33KB 2023/01/16

Optional Items

Item Name Part Number Description
Item Name :
Dual USB2.0 port cable Part Number :
A81-001066-016G Description :
with bracket
Item Name :
COM port cable Part Number :
A81-015011-001G Description :
with bracket
Item Name :
Serial ATA data cable Part Number :
332-553001-005G Description :
Item Name :
DIO cable Part Number :
A81-009133-018G Description :
Item Name :
PS2 cable Part Number :
332-353016-009G Description :
Item Name :
LPT cable Part Number :
A81-003006-000G Description :
Item Name :
DVI-D board Part Number :
774-PICDVI-000G Description :
with cable
