KU968
Home System-On-Modules COM Express Compact KU968
  • 7th Gen Intel® Core™
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
  • Multiple expansion: 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
  • Three independent displays: VGA*/DDI + LVDS*/eDP + DDI
  • Dual channel DDR4 2133MHz memory down up to 16GB
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
Compact Size
4K2K Display
Multiple Expansion
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

KU968 Related Tags

#IoT#Intel#Compact Size#4K2K Display#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification

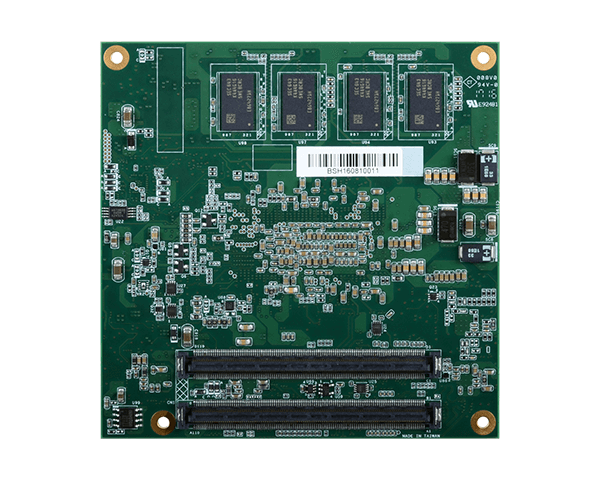

COM Express Type 6, KU968

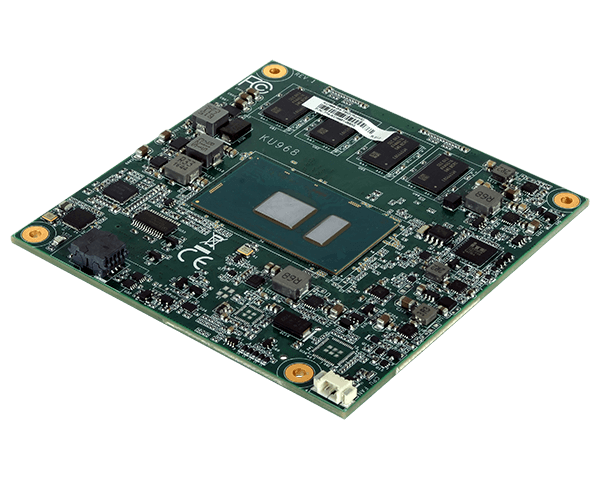

COM Express Type 6, KU968
COM Express Type 6, KU968
System
Processor
7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Celeron® Processor 3965, Dual Core, 2M Cache, 2.2GHz, 15W
Memory
4GB/8GB/16GB DDR4 Memory Down
Dual Channel DDR4 2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI
DDI + eDP + DDI
Expansion
Interface
5 PCIe x1 or 4 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 8 lanes)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
I/O
USB
4 x USB 3.0
8 x USB 2.0
SATA
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
Consumption
Typical: 3965U: 12V @ 0.2134A (2.5608W)
Max.: 3965U: 12V @ 1.3592A (16.3104W)
OS Support
OS Support
Windows: Windows 10 IoT Enterprise 64-bit
Linux: Yocto Project v2.2
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C (with cooler)
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
866,065 hrs @ 25°C; 422,194 hrs @ 45°C; 238,613 hrs @ 60°C
Calculation Model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 KU968 board
1 Cooler/Heat sink (Height: 23.8mm) Standard: A71-011060-000G
or 1 Cooler/Heat sink (Height: 24.3mm) Wide-Temp: A71-111027-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KU968-T8-7600U
    Part Number :
    770-KU9681-100G
    Description :
    Intel Core i7-7600U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 8GB DDR4 Memory Down, -40 to 85°C
  • Model Name :
    KU968-T1-7600U
    Part Number :
    770-KU9681-200G
    Description :
    Intel Core i7-7600U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 16GB DDR4 Memory Down, -40 to 85°C
  • Model Name :
    KU968-B8-7300U
    Part Number :
    770-KU9681-300G
    Description :
    Intel Core i5-7300U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 8GB DDR4 Memory Down, 0 to 60°C
  • Model Name :
    KU968-B4-7100U
    Part Number :
    770-KU9681-400G
    Description :
    Intel Core i3-7100U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 4GB DDR4 Memory Down, 0 to 60°C
  • Model Name :
    KU968-B4-3965U
    Part Number :
    770-KU9681-500G
    Description :
    Intel Celeron 3965U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 4GB DDR4 Memory Down, 0 to 60°C
  • Model Name :
    KU968-B4-7300U
    Part Number :
    770-KU9681-600G
    Description :
    Intel Core i5-7300U, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 4GB DDR4 Memory Down, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM332-B carrier board kit
    Part Number :
    770-CM3321-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    A71-011070-000G
    Description :
    Height: 11mm

Best Budget 7th Generation Core™ Processor Based Motherboards
