EC500-KH

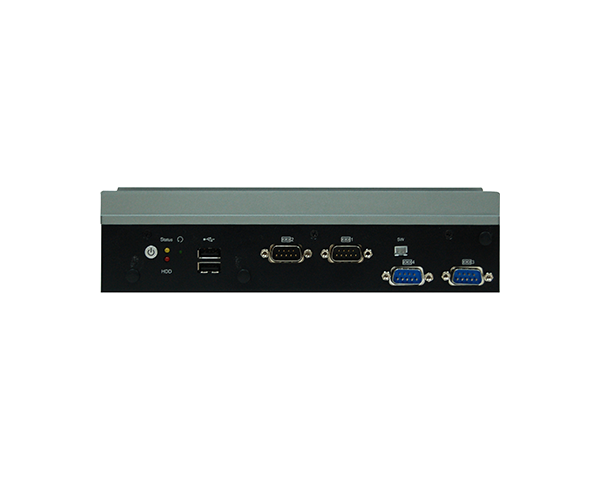

Industrial Computers Fanless Embedded System EC500-KH
  • Supports DDR4 SODIMM up to 32GB
  • Three independent displays: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP
  • Rugged and Fanless Embedded System
  • Rich I/O connectivity: 2 GbE, 4 COM, 4 USB 3.0, 2 USB 2.0, 1CFast
  • Supports 2 Mini PCIe and 1 M.2 NVMe slots
  • Operating Temperature: -20 to 60°C, -40 to 70°C (optional)
  • 15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)

Status : Sample Available

Wide Voltage: 9~36V DC-in
Fanless Design
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
Azure Certification
EC500-KH
EC500-KH
EC500-KH
System
Processor
7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
Chipset
Intel® CM238 Chipset
Intel® QM175 Chipset
Memory
Two 260-pin SODIMM up to 32GB (CM238 supports ECC)
Dual Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP++ (DP++ available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + HDMI/DVI (DVI-D signal) + HDMI/DP++
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay
1 x CFast Socket
Expansion
Interface
1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)
1 x Full-size Mini PCIe with micro SIM socket (USB)
1 x M.2 2280 M key (PCIe x4 NVMe, Intel optane memory support)
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x Status LED
1 x HDD LED
Front I/O
Serial
2 x RS-232/422/485 (DB-9) (RS-232 with power)
2 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
4 x Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0 (type A)
Display
1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP++ (DP++ available upon request)
Audio
1 x Line-out
1 x Mic-in (available upon request)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (optional)
Power
Type
Wide Range 9~36V
Connector
3-pole Terminal Block
2-pin Power Extension Switch Connector
OS Support
OS Support
Windows 10 IoT Enterprise LTSB 64 Bit
Linux (available upon request)
Environment
Operating Temperature
0 to 50°C (HDD)
-20 to 60°C (SSD)
-40 to 70°C (optional)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall Mount
Dimensions (W x H x D)
TBD
Weight
TBD
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, Microsoft Azure
Packing List
Packing List
1 EC500-KH system unit
1 Extend power switch cable
1 terminal block 3pole for DC input
1 cable with 2 wire stripped and tinned to DC jack
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC500-KH
    Part Number :
    750-EC5002-100G
    Description :
    Fanless, KH263-QM175, I3-7102E, 4 COM, 6 USB, 2 LAN, -40 to +70C . DC 9~36V input, F/G SYSTEM RoHS
  • Model Name :
    EC500-KH
    Part Number :
    750-EC5002-200G
    Description :
    Fanless, KH263-CM238, E3-1535M V6, 4 COM, 6 USB, 2 LAN, DC 9~36V input, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    SO-DIMM
    Part Number :
    785-RSOD416G
    785-RSOD48G
    785-RSOD44G
    TBD
    TBD
    TBD
    Description :
    SODIMM, DDR4 Module, 16GB, RoHS
    SODIMM, DDR4 Module, 8GB, RoHS
    SODIMM, DDR4 Module, 4GB, RoHS
    SODIMM, DDR4 ECC Module, 16GB, RoHS
    SODIMM, DDR4 ECC Module, 8GB, RoHS
    SODIMM, DDR4 ECC Module, 4GB, RoHS
  • Item Name :
    M.2 SSD
    Part Number :
    785-M2PCIE032G
    785-M2PCIE064G
    785-M2PCIE128G
    785-M2PCIE256G
    Description :
    32GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
    64GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
    128GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
    256GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
  • Item Name :
    2.5" SSD
    Part Number :
    785-S25032G
    785-S25064G
    785-S25128G
    785-S25256G
    785-S25512G
    Description :
    32GB, 2.5" SSD, SATA3, MLC, RoHS
    64GB, 2.5" SSD, SATA3, MLC, RoHS
    128GB, 2.5" SSD, SATA3, MLC, RoHS
    256GB, 2.5" SSD, SATA3, MLC, RoHS
    512GB, 2.5" SSD, SATA3, MLC, RoHS
  • Item Name :
    CFast
    Part Number :
    785-CFS256G
    785-CFS128G
    785-CFS64G
    785-CFS32G
    785-CFS16G
    785-CFS8G
    Description :
    256GB CFast, RoHS
    128GB CFast, RoHS
    64GB CFast, RoHS
    32GB CFast , RoHS
    16GB CFast, RoHS
    8GB CFast, RoHS
  • Item Name :
    Wi-Fi/BT Kit
    Part Number :
    612-WPEQ26-000G
    Description :
    MINI-CARD 802.11ac/a/b/g/n+BT, 2T2R, WPEQ-261ACN(BT), SPARKLAN
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH/UK), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-110002-100G
    671-110003-100G
    671-112005-100G
    671-116003-000G
    Description :
    100W, 12V, Level 6, RoHS
    120W, 19V, Level 6, RoHS
    120W, 24V, Level 6, Wide Temp, RoHS
    160W, 19V, Level 6, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC5410-000G
    Description :
    Wall Mount Kit, RoHS
