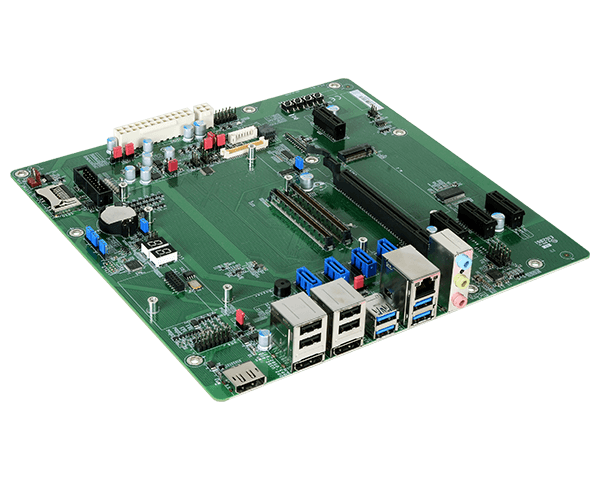

COM332-B(R.B1)
Home System-On-Modules Carrier Board COM332-B(R.B1)
  • COM Express® R2.1, Pin-out Type 6
  • Supports Compact and Basic modules
  • Multiple displays: VGA, LVDS, DP, eDP
  • Rich I/O: 1 GbE, 4 USB 3.1, 4 USB 2.0
  • microATX form factor

Status : Launched QUOTE NOW

1G Ethernet
PCIe x16
VGA
DP
Multiple Expansion
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

COM332-B(R.B1) Related Tags

#1G Ethernet#PCIe x16#VGA#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification
COM332-B(R.B1)
COM332-B(R.B1)
COM332-B(R.B1)
Graphics
Display
1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DP
1 x eDP/LVDS (LVDS available upon request)
Expansion
Interface
1 x PCIe x16
4 x PCIe x1
1 x M.2 M Key 2280
1 x SDIO
Audio
Audio Codec
Realtek ALC888S-VD2-GR

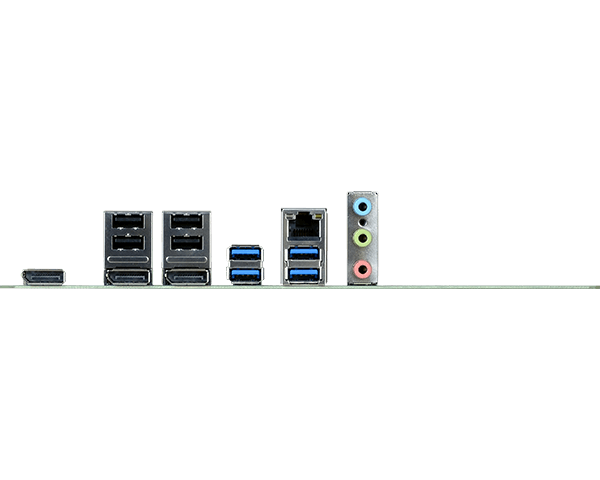

Rear I/O
Ethernet
1 x GbE (RJ-45)
USB
4 x USB 3.1 (Gen2)
4 x USB 2.0
Display
3 x DP
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
2 x Serial Interface Connector (TX/RX)
Display
1 x VGA (2.54mm)
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
1 x eDP LCD Panel Connector
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Connector
4-pin ATX 12V power
24-pin ATX power
RTC Battery
CR2032 Coin Cell
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
488,117 hrs @ 25°C; 253,684 hrs @ 45°C; 136,621 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Compliance
PICMG COM Express® R2.1, Type 6
Basic, Compact Modules
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 COM332-B(R.B1) board
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
1 VGA cable: A81-012000-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    COM332-B(R.B1)
    Part Number :
    770-CM3322-000G
    Description :
    Active Thermal, 1 GbE, 4 USB 3.1, 4 USB2.0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable (Length: 500mm)
    Part Number :
    332-553001-005G
    Description :
  • Item Name :
    LPC EXT-RS232 module (4 x RS232 ports)
    Part Number :
    770-EXTRS1-000G
    Description :
  • Item Name :
    LPC EXT-RS485 module (4 x RS485 ports)
    Part Number :
    770-EXTRS1-100G
    Description :
  • Item Name :
    I/O shield
    Part Number :
    A49-COM332-010G
    Description :

Working with DFI
