SH960-HM170

System-On-Modules COM Express Basic SH960-HM170
  • 6th Gen Intel® Core™, Intel® HM170 Chipset
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
  • Multiple expansion: 1 PCIe x16, 8 PCIe x1
  • Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
  • Dual channel DDR4 2133MHz SODIMM up to 32GB
  • 7-Year CPU Life Cycle Support

Status : Launched

4K2K Display
1G Ethernet
PCIe x16
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

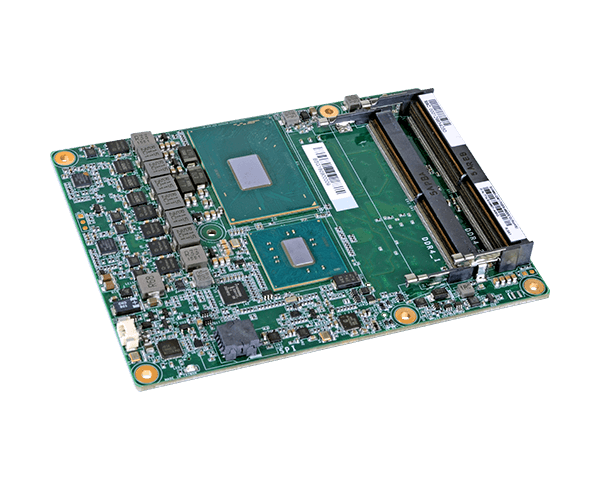

COM Express Type 6, SH960-HM170

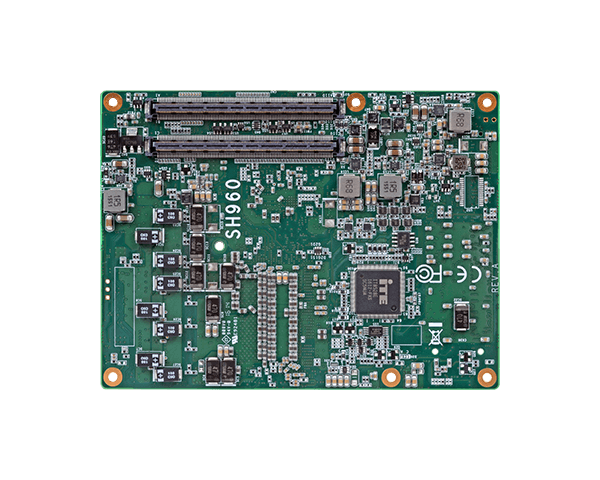

COM Express Type 6, SH960-HM170
COM Express Type 6, SH960-HM170
System
Processor
6th Generation Intel® Core™ Processors, BGA 1440
Intel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45W
Intel® Core™ i7-6822EQ Processor, Quad Core, 8M Cache, 2.0GHz (2.8GHz), 25W
Intel® Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz), 45W
Intel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25W
Intel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35W
Intel® Core™ i3-6102E Processor, Dual Core, 3M Cache, 1.9GHz, 25W
Intel® Celeron® Processor G3900E, Dual Core, 2M Cache, 2.4GHz, 35W
Intel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W
Chipset
Intel® HM170 Chipset
Memory
Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL up to 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
2 x DDI (HDMI/DVI/DP++)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
DP++/eDP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI or VGA + DDI1 + DDI2
eDP + 2 DDI (available upon request)
Expansion
Interface
1 x PCIe x16 or 2 x PCIe x8 (Gen 3)
8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
I/O
USB
4 x USB 3.0
8 x USB 2.0
SATA
4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
OS Support
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C (with heat spreader)
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Basic 95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R2.1, Type 6
Standards and Certifications
Certifications
CE, FCC
Packing List
Packing List
1 SH960-HM170 board
1 Cooler (Height: 36.58mm): A71-111026-000G
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SH960-HM170BS-3902E
    Part Number :
    770-SH9601-B00G
    Description :
    Cooler, Intel Celeron G3902E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    SH960-HM170BS-3900E
    Part Number :
    770-SH9601-C00G
    Description :
    Cooler, Intel Celeron G3900E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    SH960-HM170BS-6102E
    Part Number :
    770-SH9601-900G
    Description :
    Cooler, Intel Core i3-6102E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    SH960-HM170BS-6100E
    Part Number :
    770-SH9601-800G
    Description :
    Cooler, Intel Core i3-6100E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

* Core i5 and Core i7 are supported upon request with MOQ requirement.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader
    Part Number :
    A71-011073-000G
    Description :
    Height: 11mm
  • Item Name :
    COM332-B carrier board kit
    Part Number :
    770-CM3321-000G
    Description :
