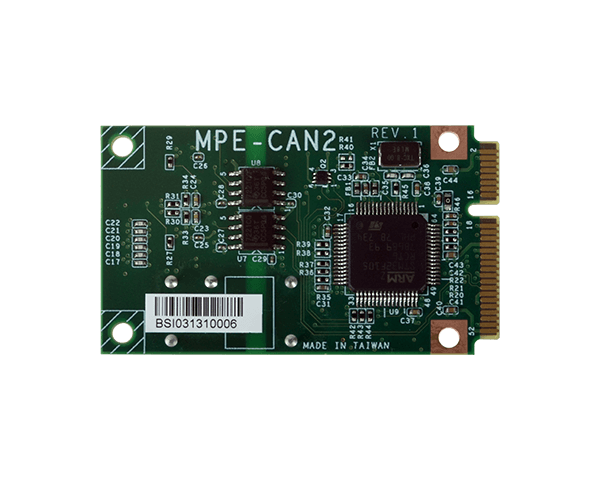

MPE-CAN2

Industrial Motherboards Peripherals MPE-CAN2
  • Supports CANBus 2.0A and 2.0B Specifications with 11-bits and 29bits Data Frames
  • 40°C to 85°C Operation Temperature
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Complies with EN61000-4-5 2.5kV Surge protection
  • Up to 1M bits Baud Rate

Status : Launched

Wide-temp: -40°C~85°C
Mini PCIe
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
MPE-CAN2
MPE-CAN2
Expansion
Interface
Mini-PCIe or USB (Optional)
Internal I/O
Other I/O
One DB9 connector includes Dual CAN Bus and One J1708 ports
Environment
Temperature
Operating: -40oC to 85oC
Storage: -40oC to 85oC
Humidity
Operating: 10% to 85%
Storage: 10% to 90%
Mechanism
Dimensions
50.59mm x 30mm (1.99" x 1.18")
Specifications
Features
Supports CANBus 2.0A and 2.0B Specifications with 11-bits and 29bits Data Frames
Up to 1M bits Baud Rate
Support high layer protocol as SAE J1939 / OBDII / J1708 / TTCAN (Optional)
Complies with EN61000-4-5 2.5kV Surge protection
Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
Extra mounting hole and USB Interface for non-minipcie installation (Optional)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    MPE-CAN2-MR
    Part Number :
    770-MPEC21-000G
    Description :
    MPE-CAN2 Mini-PCIe RAW CAN Module Card Assy. RoHS
  • Model Name :
    MPE-CAN2-MF
    Part Number :
    770-MPEC21-100G
    Description :
    MPE-CAN2 Mini-PCIe Full CAN Module Card Assy. RoHS
  • Model Name :
    MPE-CAN2-UR
    Part Number :
    770-MPEC21-200G
    Description :
    MPE-CAN2 USB RAW CAN Module Card Assy. RoHS
  • Model Name :
    MPE-CAN2-UF
    Part Number :
    770-MPEC21-300G
    Description :
    MPE-CAN2 USB Full CAN Module Card Assy. RoHS
  • Model Name :
    MPE-CAN2-MRV
    Part Number :
    770-MPEC21-400G
    Description :
    MPE-CAN2 Mini-PCIe RAW CAN Module Card Assy. For VC230, RoHS
  • Model Name :
    MPE-CAN2-MFV
    Part Number :
    770-MPEC21-500G
    Description :
    MPE-CAN2 Mini-PCIe Full CAN Module Card Assy. For VC230, RoHS
