GH171|AMD®|Industrial Motherboards|DFI

GH171
Home Industrial Motherboards Mini-ITX GH171
  • AMD® Ryzen™ V1000/R2000/R1000 Mini-ITX
  • 2 DDR4 3200MHz SODIMM up to 32GB
  • Four independent displays: DP++ + DP++ + DP++ + DP++
  • Multiple expansion: 1 PCIe x16, 1 M.2 M Key
  • Rich I/O: 2 GbE, 6 COM, 3 USB 3.0, 6 USB 2.0
  • 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
4K2K Display
PCIe x16
Windows
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification
UKCA Certification
Embedded Solution Powered by GH171 :
DT122-GH

DT122-GH

DT122-GH

Desktop Box PC, AMD® Ryzen™ V1000/R1000 Series, DDR4, 1 PCIe / 1 PCI, 4 DP++ / 3 DP++

GH171 Related Tags

#AMD#4K2K Display#PCIe x16#Windows#Linux#DDR4#RoHS Certification#UL Certification#CE Certification#FCC Certification#UKCA Certification
GH171
GH171
System
Processor
AMD® Ryzen™ Embedded V1807B, 4C/8T, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 45W (35-54W)
AMD® Ryzen™ Embedded V1756B, 4C/8T, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 45W (35-54W)
AMD® Ryzen™ Embedded V1605B, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W (12-25W)
AMD® Ryzen™ Embedded V1202B, 2C/4T, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 15W (12-25W)
AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W
AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz),15W
AMD® Ryzen™ Embedded R2312, 3C/4T, 2MB Cache, 3CU, 2.7GHz (3.5GHz), 12~25W
AMD® Ryzen™ Embedded R2314, 6C/12T, 4MB Cache, 6 CU, 2.1GHz (3.5GHz), 12~35W
AMD® Ryzen™ Embedded R2514, 6C/12T, 4MB Cache, 8 CU, 2.1GHz (3.7GHz), 12~35W
AMD® Ryzen™ Embedded R2544, 4C/8T, 4MB Cache, 8 CU, 3.35GHz (3.7GHz), 35~54W
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 up to 3200MHz (ECC/non ECC support)
BIOS
AMI BIOS
Graphics
Controller
AMD® Radeon™ Vega Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
Expansion
Interface
1 x PCIe x16 (x8 signal with V1000 series, x4 signal with R1000 series) (Max. 50W)
1 x M.2 2280 M Key (x4 signal with V1000 series, x2 signal with R1000 series) (support 2242 by BOM opt.)
Audio
Audio Codec
Realtek ALC887-VD2-CG
Ethernet
Controller
2 x Realtek RTL8111HN-CG (10/100/1000Mbps)

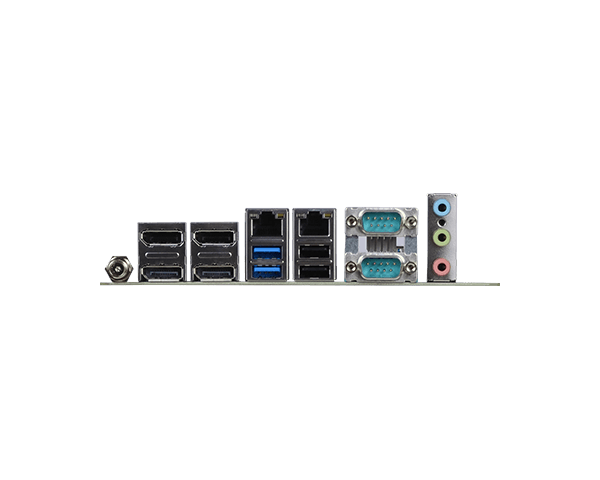

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
2 x USB 3.0
2 x USB 2.0
Display
4 x DP++ (V1000 series)
3 x DP++ (R1000 series)
Audio
1 x Mic-in
1 x Line-in
1 x Line-out
Internal I/O
Serial
4 x RS-232 (2.0mm pitch) (TX/RX signal only)
USB
4 x USB 2.0 (2.54mm pitch)
1 x Vertical Type A USB 3.0 (V1000 series)
1 x Vertical Type A USB 2.0 (R1000 series)
Audio
1 x S/PDIF
1 x Audio (Mic-in/Line-out)
SATA
2 x SATA 3.0 (up to 6GB/s) (with 7-pin VCC support)
2 x SATA Power
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0
Power
Type
Single 12V +/-5% DC
Connector
Straight Type Connector (4-pin)
DC-in Jack (available upon request)
Right Angle Connector (4-pin) (available upon request)
Consumption
Idle: 1.2A@14.4W
Max: 6.1A@73.4W
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
536,492 hrs @ 25°C
334,201 hrs @ 45°C
223,268 hrs @ 60°C
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 40mm
Bottom Side: 5mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UL, UKCA
Packing List
Packing List
1 GH171 motherboard
1 I/O shield A49-GH1710-000G
1 Cooler
(For 25W, height:35mm) A71-108114-010G
(For 35W~54W, height:47mm) A71-108113-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    GH171-V1807B
    Part Number :
    770-GH1712-000G
    Description :
    AMD® Ryzen™ V1000/R1000, V1807B 35-54W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-V1756B
    Part Number :
    770-GH1712-100G
    Description :
    AMD® Ryzen™ V1000/R1000, V1756B 35-54W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-V1202B
    Part Number :
    770-GH1712-200G
    Description :
    AMD® Ryzen™ V1000/R1000, V1202B 12-25W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-V1605B
    Part Number :
    770-GH1712-300G
    Description :
    AMD® Ryzen™ V1000/R1000, V1605B 12-25W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-R1505G
    Part Number :
    770-GH1712-400G
    Description :
    AMD® Ryzen™ V1000/R1000, R1505G, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-R1606G
    Part Number :
    770-GH1712-500G
    Description :
    AMD® Ryzen™ V1000/R1000, R1606G, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-R2312B
    Part Number :
    770-GH1712-600G
    Description :
    AMD® Ryzen™ R2000, R2312 12~25W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-R2314B
    Part Number :
    770-GH1712-700G
    Description :
    AMD® Ryzen™ R2000, R2314 12~35W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-R2514B
    Part Number :
    770-GH1712-800G
    Description :
    AMD® Ryzen™ R2000, R2514 12~35W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
  • Model Name :
    GH171-R2544B
    Part Number :
    770-GH1712-900G
    Description :
    AMD® Ryzen™ R2000, R2544 35~54W, 2 DDR4 SODIMM, 4 DP++, 6 COM, 9 USB, 12V, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    SATA signal and power cable
    Part Number :
    A81-002013-000G
    Description :
    Length: 300mm
  • Item Name :
    USB port cable
    Part Number :
    332-253010-026G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015041-018G
    Description :
    Length: 300m
