ALF51

Industrial Motherboards 1.8" SBC ALF51
  • Intel Atom® Processor E3900 Series
  • 2GB/4GB LPDDR4 Memory Down
  • 1 Mini DP++
  • Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 1 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched

Low Power Consumption
Wide-temp: -40°C~85°C
4K2K Display
Mini PCIe
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
ALF51
ALF51
ALF51
ALF51
System
Processor
Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
2GB/4GB DDR4 Memory Down
Single Channel LPDDR4 2400MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x Mini DP++
Mini DP++: resolution up to 4096x2160 @ 60Hz
Storage
eMMC
1 x 16GB/32GB/64GB eMMC
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
Ethernet
Controller
2 x Intel® I211AT PCIe (10/100/1000Mbps) or
2 x Intel® I210IT PCIe (10/100/1000Mbps)

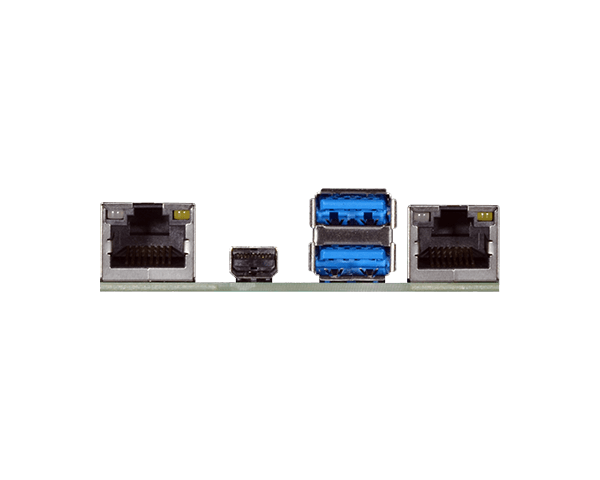

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
2 x USB 3.1 Gen 1
Display
1 x Mini DP++
Internal I/O
Serial
1 x RS-232/422/485 (1.27mm pitch)
USB
1 x USB 2.0 (1.27mm pitch)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM 2.0
Power
Type
Single 12V +/-10% DC
Connector
2-pin Terminal Block
Consumption
Typical: E3940:12V @ 0.29A (3.48Watt)
Max.: E3940:12V @ 1.30A (15.6Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: 0 to 60°C (Option: -20 to 70°C / -40 to 85 °C)
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
868,962 hrs @ 25°C; 638,889 hrs @ 45°C ; 465,382 hrs @ 60°C
Mechanism
Dimensions
1.8" SBC Form Factor
84mm (3.31") x 55mm (2.17")
Height
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 8mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 ALF51 board
1 USB port cable (Length: 200mm) A81-001076-016G
1 COM port cable (Height: 300mm) A81-015050-016G
1 Heat spreader (Height: 11mm) A71-808314-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ALF51-BN-26E40
    Part Number :
    770-ALF511-000G
    Description :
    Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
  • Model Name :
    ALF51-BN-26E30
    Part Number :
    770-ALF511-100G
    Description :
    Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
  • Model Name :
    ALF51-BN-26N50
    Part Number :
    770-ALF511-200G
    Description :
    Fanless, Intel® Celeron® N3350, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
  • Model Name :
    ALF51-EN-26E40
    Part Number :
    770-ALF511-300G
    Description :
    Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -20 to 70°C
  • Model Name :
    ALF51-EN-26E30
    Part Number :
    770-ALF511-400G
    Description :
    Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -20 to 70°C
  • Model Name :
    ALF51-TN-26E40
    Part Number :
    770-ALF511-500G
    Description :
    Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C
  • Model Name :
    ALF51-TN-26E30
    Part Number :
    770-ALF511-600G
    Description :
    Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C
  • Model Name :
    ALF51-BN-46E40
    Part Number :
    770-ALF511-700G
    Description :
    Fanless, Intel Atom® X5-E3940, LPDDR4 4GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
  • Model Name :
    ALF51-TN-46E40
    Part Number :
    770-ALF511-800G
    Description :
    Fanless, Intel Atom® X5-E3940, LPDDR4 4GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C

* Note: N4200 by request

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat sink for E series CPU 0 to 60°C / wide temp
    Part Number :
    A71-008110-000G
    Description :
    Height: 27mm
  • Item Name :
    Heat sink for N series CPU 0 to 60°C
    Part Number :
    A71-008113-000G
    Description :
    Height: 23mm
  • Item Name :
    Power adapter + 2 pole terminal to DC Jack cable
    Part Number :
    671-106012-000G/A81-004013-000G
    Description :
    60W, 12V, DC jack

DFI’s Smallest SBC Board

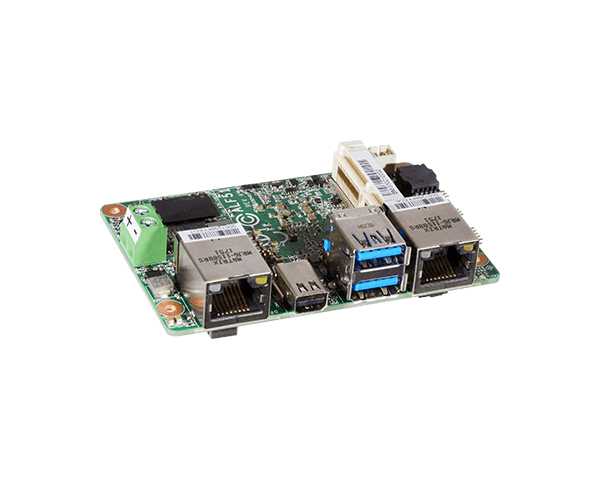

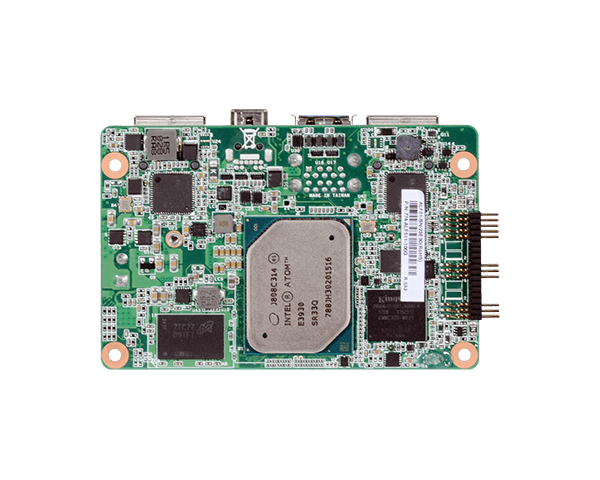

DFI launches ALF51, a 1.8” single-board computer (SBC) measuring just at 84 x 55 mm, tiny enough to be held within two fingers. This compact sized motherboard based on Intel Atom® Processor E3900 Series with low power consumption and cost-efficient feature can be suited for space-limited applications without compromising its high performance.

Credit Card Sized Board

With only a credit card size, ALF51 belongs to the form factor Femto–ITX measuring only 65% of 2.5” Pico-ITX form factor, 30% of 3.5" SBC form factor board, enabling it to fit into different limited spaces.

Intel Atom® Processor E3900 Series Based

Powered by Intel Atom® Processor E3900 Series under the Goldmont architecture and the latest 14nm process technology, this board is ideally designed with 30% advanced processing capability and low power consumption with the average of 9 W TDP, meeting energy-efficient and power saving demands.

Good Stability and Reliability for Industrial Grade Applications

ALF51 motherboard with fanless design and industrial grade features that support extended temperature up to -40 to 85°C and industrial grade 12V DC can survive under strict conditions such as industrial automation, ensuring equipment’s reliable performance and long-term life span.

Optimized I/O ports and expansion

ALF51 is small but complete supported with various I/O ports such as 1 x Mini DP++, 2 x USB 3.1 Gen1. ALF51 is especially as an IIoT gateway designed with dual GbE, one GbE will be connected to network server; another one will be connected to device side such as I/O control or camera receiving and transferring data. Additionally, it supports mini PCIe expansion for WIFI/BT and 3G/4G in IIoT solutions.

Very Small Form Factor Requirements in Rugged Conditions

The benefits of low-power consumption and compact size make ALF51 SBC motherboard effectively suited for many space-constrained and thermally restricted industries, such as robotics arm and industrial automation applications.

ODM/OEM Services Capability

To meet your specific requirements in restricted environments, DFI has the ability of offering ODM/OEM services from design, prototyping, BIOS/OS/firmware/software customization, and system integration to manufacture to customize products upon your request and suited for your ideal embedded solutions.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
