KSM-KH Series

Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE

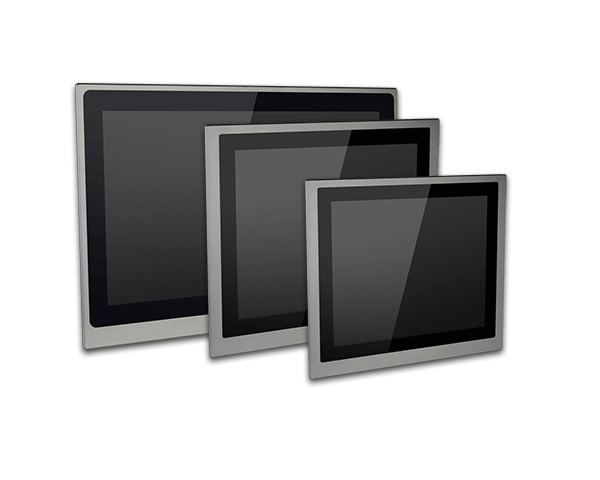

Industrial Panel PCs & Displays Fanless Touch Panel PC KSM-KH Series
  • Support Adaptive Display Platform
  • Supports 9~36V Power Input
  • Intel® Core™ Processor with Fanless Design
  • Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
  • IP65 Front Panel Protection
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched

Wide Voltage: 9~36V DC-in
IP65 Front Panel Protection
Multiple Expansion
DDR4
Triple Independent Display
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KSM-KH Series Embedded Solution Powered by: DFI Proprietary Motherboard

Related Tags

#IoT #Intel #Mini PCIe #IP65 Front Panel Protection #Windows #Linux #HDMI #DVI-D #VGA #DP #Multiple Expansion #DDR4 #RoHS Certification #CE Certification #FCC Certification
KSM-KH Series | 7th Gen Intel Core | Kaby Lake | Modular-Designed Industrial Panel PC | DFI
KSM-KH Series | 7th Gen Intel Core | Kaby Lake | Modular-Designed Industrial Panel PC | DFI
KSM-KH Series | 7th Gen Intel Core | Kaby Lake | Modular-Designed Industrial Panel PC | DFI
KSM-KH Series | 7th Gen Intel Core | Kaby Lake | Modular-Designed Industrial Panel PC | DFI
System
Processor
7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
Chipset
Intel® CM238 Chipset
Intel® QM175 Chipset
Memory
Two 260-pin SODIMM up to 32GB (CM238 supports ECC)
Dual Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
Display and Touch Screen
Display
KSM150-KH: 15" TFT LCD Panel
KSM156-KH: 15.6" TFT LCD Panel
KSM170-KH: 17" TFT LCD Pane
KSM185-KH: 18.5" TFT LCD Pane
KSM190-KH: 19" TFT LCD Panel
KSM215-KH: 21.5" TFT LCD Panel
Brightness
KSM150-KH: 300 (cd/m²)
KSM156-KH: 400 (cd/m²)
KSM170-KH: 350 (cd/m²)
KSM185-KH: 450 (cd/m²)
KSM190-KH: 350 (cd/m²)
KSM215-KH: 300 (cd/m²)
Backlight Lifetime
KSM150-KH: 70,000 hours
KSM156-KH: 50,000 hours
KSM170-KH: 30,000 hours
KSM185-KH: 50,000 hours
KSM190-KH: 70,000 hours
KSM215-KH: 50,000 hours
Max. Resolution
KSM150-KH: 1024 x 768
KSM156-KH: 1366 x 768
KSM170-KH: 1280 x 1024
KSM185-KH: 1366 x 768
KSM190-KH: 1280 x 1024
KSM215-KH: 1920 x 1080
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP++ (DP++ available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 2560x1600 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + HDMI/DVI (DVI-D signal) + HDMI/DP++
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay (RAID)
Expansion
Interface
1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)
1 x Full-size Mini PCIe with micro SIM socket (USB)
1 x M.2 M Key 2280 (PCIe x4)
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x Status LED
1 x HDD LED

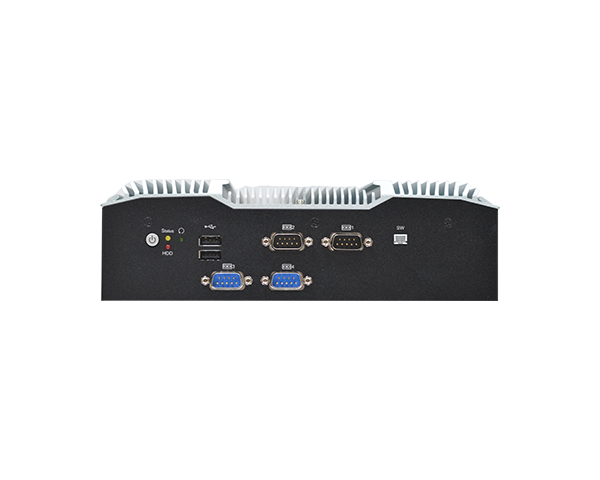

Front I/O
Serial
2 x RS-232/422/485 (DB-9) (RS-232 with power)
2 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole

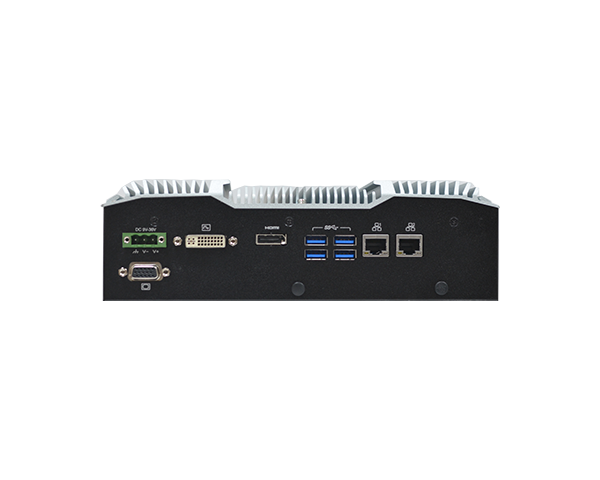

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0 (type A)
Display
1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP++ (DP++ available upon request)
Audio
1 x Line-out
1 x Mic-in (available upon request)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 SecondsSystem Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
Wide Range 9~36V
Connector
3-pole Terminal Block
OS Support
OS Support
Windows 10 IoT Enterprise LTSB 64 Bit
Linux (available upon request)
Environment
Operating Temperature
-20 to 50°C (SSD or mSATA-mini or CFast card, with 0.7m/s air flow)
Storage Temperature
-30 to 70°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Dimensions
KSM150-KH: 387 x 320 x 118 mm
KSM156-KH: 407.3 x 277.3 x 97.92 mm
KSM170-KH: 404 x 363.8 x 102.8 mm
KSM185-KH: 472.06 x 314.15 x 102.8 mm
KSM190-KH: 467 x 400 x 118 mm
KSM215-KH: 544.2 x 360.6 x 118 mm
Construction
Metal + Aluminum
Mounting
Panel/VESA Mount 100 x 100 mm
Weight
KSM150-KH: 7.7 kg
KSM156-KH: TBD
KSM185-KH: 8.1 kg
KSM190-KH: 10 kg
KSM215-KH: 9.4 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 Single Box
1 3 pin Terminal Block Connector
2 Mini PCIe Screw
1 SATA Screw
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KSM150P-KHW36     Part Number :
     750-K15003-100G     Description :
    15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150R-KHW36     Part Number :
     750-K15003-200G     Description :
    15" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150P-KHW36-I5-KLU     Part Number :
     750-K15003-300G     Description :
    15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-KHW36-i5     Part Number :
     750-K19002-100G     Description :
    19" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190R-KHW36-i5     Part Number :
     750-K19002-200G     Description :
    19" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-KHW36-i5-KLU     Part Number :
     750-K19002-300G     Description :
    19" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Memory     Part Number :
     138-540002-100G
    138-580002-100G
    138-5G0161-100G     Description :
    4GB DDR4 SODIMM RAM
    8GB DDR4 SODIMM RAM
    16GB DDR4 SODIMM RAM
  • Item Name :
    HDD/SSD     Part Number :
     635-550092-050G
    635-500100-200G
    635-610002-110G
    635-605122-110G
    635-602562-120G
    635-601282-190G
    635-600642-150G     Description :
    2.5” SATA HDD, 500GB, RoHS
    2.5” SATA HDD, 1TB, RoHS
    2.5" SATA SSD, 1TB MLC, RoHS
    2.5" SATA SSD, 512GB MLC, RoHS
    2.5" SATA SSD, 256GB MLC, RoHS
    2.5" SATA SSD, 128GB MLC, RoHS
    2.5" SATA SSD, 064GB MLC, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G
    612-110050-300G     Description :
    Wi-Fi Kit, SparKLAN, WPEA-121N, w/IPX cable & antenna
    Wi-Fi module, SparKLAN, WPEA-252NI
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter     Part Number :
     671-106013-000G
    671-112005-100G     Description :
    60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS
    120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS
  • Item Name :
    Panel Mount Kits     Part Number :
     761-P15002-000G
    761-P19003-000G
    761-P15002-000G
    761-P19003-000G
    TBD
    761-KS2150-000G     Description :
    Panel Mount Kit for PMKS150 RoHS
    Panel Mount Kit for PMKS190 RoHS
    KSM150 Panel Mount Kit RoHS
    KSM170-AL / KSM190-AL Panel Mount Kit RoHS
    KSM185 Panel Mount Kit RoHS
    KSM215-AL Panel Mount Kit RoHS
  • Item Name :
    Wall Mount     Part Number :
     761-TPC000-000G     Description :
    ACCESSORY WALL MOUNT KITS

Change Everything ─ Adaptive Display Platform

DFI developed a brand-new series of product line named ”Adaptive Display Platform“ - an emerging and innovative approach to modularized touch panel PC design. This diverse combination of computing units and touchscreens provide system integrators a more flexible and cost-efficiency solution by merely upgrading certain modules instead of the whole unit. With the advantage of updating prospects, easy maintenance, and rugged design, DFI’s new-series touch panel PCs with ADP technology are the ideal solutions for factory automation, transportation, and critical mission applications.

Easy Installation & Maintenance

Mounting or changing a touch panel or box module could never be simpler as the modular design can be completed within two steps. ADP technology helps PPC achieve easy installation, maintenance, and ensures not to cause long-term interruption while upgrading or maintaining the equipment.

Configure by Demand

Equipped with Intel Atom or Core i series processors, customers can freely choose the processing capability of the box PC and size of the panel depending on their requirement. Customers can also choose from over 30 I/O expansion modules and resistive single-touch or projected capacitive multi-touch displays to build highly customized solutions.

100% In-house Boards

With in-house production, it eases the control over manufacturing quality and protects from a risk of fraud and confidentiality issues. KSM070-AL/KSM156-AL is developed based on 100% in-house DFI‘s proprietary motherboard, ensuring lower costs of maintenance by all-in-one design and passes through comprehensive process of quality control.

Rugged Design

Adaptive Display Platform provides outstanding reliability and graphic performance featuring the capability of wide voltage 9~48V DC power input and surviving under extended temperature range from -40°C to 70°C with fanless, anti-vibration, cableless design. These products can operate stably 24/7 under challenging environments like transportation, logistics, aviation, and marine sectors.

Convertible Power Module

DFI KSM-AL/BMAL series are patented with convertible power management module for replacing MCU with onboard Embedded Controller which is cost- efficient and space-saving to achieve Power Ignition (IGN) function supported with delay on/off time management for low voltage power protection. In addition, this series are available with wide voltage power modules including 3 options of 12V, 9~48V, 24V power boards to fulfill different demands in in-vehicle, AGV and industrial automation markets.
