KSM-SD Series

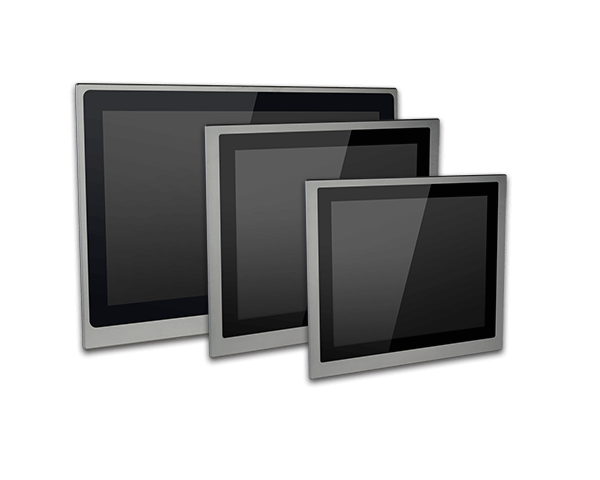

Industrial Panel PCs & Displays High-Performance Touch Panel PC KSM-SD Series
  • Support Adaptive Display Platform
  • Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
  • Supports 9~36V Power Input
  • Fanless Design Intel Core Processor with fanless design
  • Front OSD & Accessible 2.5" SATA Drive Bay
  • 15-Year CPU Life Cycle Support Until Q4' 30 (Based on Intel IOTG Roadmap)

Status : Sample Available

Wide Voltage: 9~36V DC-in
Fanless Design
IP65 Front Panel Protection
1G Ethernet
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
KSM-SD Series | 6th Gen Intel Core | Sky Lake | Modular-Designed Industrial Panel PC | DFI
KSM-SD Series | 6th Gen Intel Core | Sky Lake | Modular-Designed Industrial Panel PC | DFI
System
Processor
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Chipset
Intel® Q170 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Display and Touch Screen
Display
KSM150-SD: 15" TFT LCD Panel
KSM156-SD: 15.6" TFT LCD Panel
KSM170-KH: 17" TFT LCD Pane
KSM185-KH: 18.5" TFT LCD Panel
KSM190-SD: 19" TFT LCD Panel
KSM215-SD: 21.5" TFT LCD Panel
Brightness
KSM150-SD: 300 (cd/m²)
KSM156-SD: 400 (cd/m²)
KSM170-SD: 350 (cd/m²)
KSM185-SD: 450 (cd/m²)
KSM190-SD: 350 (cd/m²)
KSM215-SD: 300 (cd/m²)
Backlight Lifetime
KSM150-SD: 70,000 hours
KSM156-SD: 50,000 hours
KSM170-SD: 30,000 hours
KSM185-SD: 50,000 hours
KSM190-SD: 70,000 hours
KSM215-SD: 50,000 hours
Max. Resolution
KSM150-SD: 1024 x 768
KSM156-SD: 1366 x 768
KSM170-SD: 1280 x 1024
KSM185-SD: 1366 x 768
KSM190-SD: 1280 x 1024
KSM215-SD: 1920 x1080
Touch Type
Projected Capacitive / 5-wire Resistive
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DVI (DVI-D signal)
1 x HDMI/DP (DP available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 2560x1600 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + DVI (DVI-D signal) + HDMI
VGA + DVI (DVI-D signal) + DP
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (USB/mSATA)
Audio
Speaker
TBD
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x HDD LED

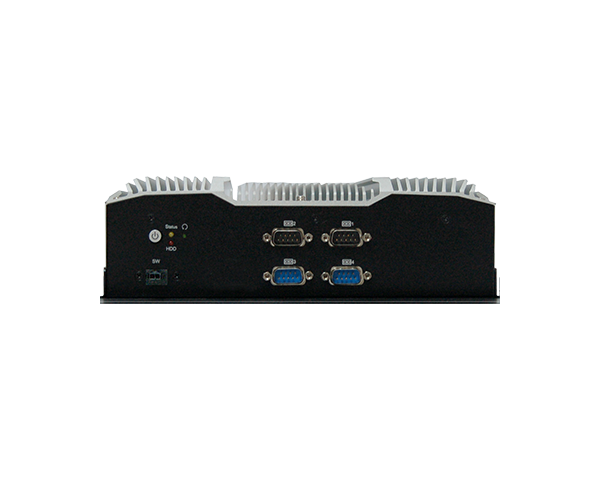

Front I/O
Serial
2 x RS-232/422/485 (DB-9) (RS-232 with power)
2 x RS-232/422/485 (DB-9)
USB
1 x USB 2.0
Buttons
1 x Power Button
1 x Reset Button
OSD Keypad
Backlight On-Off / Brightness Up / Brightness Down / Audio Up / Audio Down
LED Indicators
Power LED / HDD LED / Alarm LED

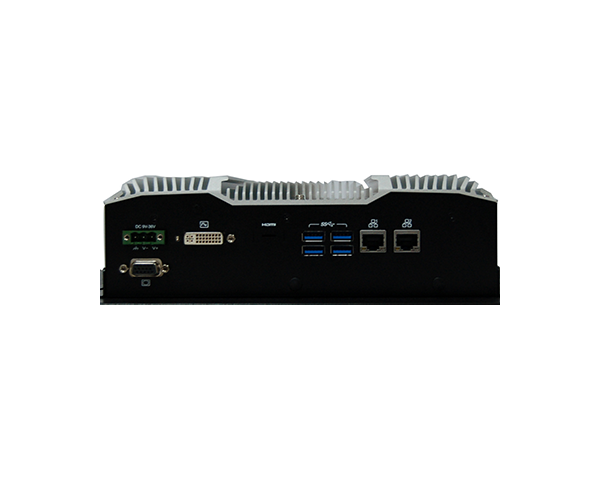

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0 (type A)
Display
1 x DVI (DVI-D signal)
1 x HDMI/DP (DP available upon request)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
9~36 VDC Input
12 VDC Input (available upon request)
Connector
3-pole Terminal Block
OS Support
OS Support
Windows 7 (32/64-bit)
Windows 10 IoT LTSB RS1 Enterprise (64bit)
Linux
Environment
Temperature
KSM150-SD: -20 to 70°C
KSM156-SD: 0 to 60°C
KSM170-SD: 0 to 50°C
KSM185-SD: 0 to 60°C
KSM190-SD: -20 to 70°C
KSM215-SD: 0 to 60°C
Storage Temperature
KSM150-SD: -30 to 70°C
KSM156-SD: -20 to 60°C
KSM170-SD: -20 to 60°C
KSM185-SD: -20 to 60°C
KSM190-SD: -30 to 85°C
KSM215-SD: -20 to 60°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Dimensions
KSM150-SD: 387 x 320 x 118 mm
KSM156-SD: 407.3 x 277.3 x 97.92 mm
KSM170-SD: 404 x 363.8 x 102.8 mm
KSM185-SD: 472.06 x 314.15 x 102.8 mm
KSM190-SD: 467 x 400 x 118 mm
KSM215-SD: 544.2 x 360.6 x 118 mm
Construction
Aluminum + SGCC
IP Rating
IP65 Front Panel Protection
Mounting
Panel/VESA Mount 100 x 100 mm
Weight
KSM150-SD: 7.7 kg
KSM156-SD: TBD
KSM170-SD: 8.1 kg
KSM185-SD: 8.1 kg
KSM190-SD: 10 kg
KSM215-SD: 9.4 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 Single Box
1 3 pin Terminal Block Connector
2 Mini PCIe Screw
1 SATA Screw
1 Single Box
1 3 pin Terminal Block Connector
2 Mini PCIe Screw
1 SATA Screw
8 Panel Mount
Note: Please choose "KSM-SD Series product page > Download button" to download the Driver and Manual.
Others
Auto Dimming
Light Sensor
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KSM150P-SDW36
    Part Number :
    750-K15002-100G
    Description :
    15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150R-SDW36
    Part Number :
    750-K15002-200G
    Description :
    15" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150P-SDW36-KLU
    Part Number :
    750-K15002-300G
    Description :
    15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156P-SDW36
    Part Number :
    750-K15602-100G
    Description :
    15.6" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156R-SDW36
    Part Number :
    750-K15602-200G
    Description :
    15.6" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156P-SDW36-KLU
    Part Number :
    750-K15602-300G
    Description :
    15.6" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU
    Part Number :
    143-102402-500G
    143-102303-500G
    143-102701-500G
    143-102401-500G
    Description :
    Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz);35W
    Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz);35W
    Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz;35W
    Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W
  • Item Name :
    Memory
    Part Number :
    138-540002-100G
    138-580002-100G
    138-5G0161-100G
    Description :
    4GB DDR4 SODIMM RAM
    8GB DDR4 SODIMM RAM
    16GB DDR4 SODIMM RAM
  • Item Name :
    HDD/SSD
    Part Number :
    635-550092-050G
    635-500100-200G
    635-610002-110G
    635-605122-110G
    635-602562-120G
    635-601282-190G
    635-600642-150G
    Description :
    2.5” SATA HDD, 500GB, RoHS
    2.5” SATA HDD, 1TB, RoHS
    2.5" SATA SSD, 1TB MLC, RoHS
    2.5" SATA SSD, 512GB MLC, RoHS
    2.5" SATA SSD, 256GB MLC, RoHS
    2.5" SATA SSD, 128GB MLC, RoHS
    2.5" SATA SSD, 064GB MLC, RoHS
  • Item Name :
    mSATA
    Part Number :
    638-712803-100G
    638-706405-110G
    638-703206-100G
    638-701605-130G
    638-700805-120G
    638-712803-100G
    638-706405-110G
    638-703206-100G
    Description :
    mSATA Card, 128GB MLC, RoHS
    mSATA Card, 64GB MLC, RoHS
    mSATA Card, 32GB MLC, RoHS
    mSATA Card, 16GB MLC, RoHS
    mSATA Card, 8GB MLC, RoHS
    mSATA Card, 128GB MLC, RoHS (wide temperature)
    mSATA Card, 64GB MLC, RoHS (wide temperature)
    mSATA Card, 32GB MLC, RoHS (wide temperature)
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    612-110050-300G
    Description :
    Wi-Fi Kit, SparKLAN, WPEA-121N, w/IPX cable & antenna
    Wi-Fi module, SparKLAN, WPEA-252NI
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-116001-000G
    671-116003-000G
    Description :
    Power Adapter 160W , 19V/8.4A Level 5, RoHS
    Power Adapter 160W , 19V/8.4A Level 6, RoHS
  • Item Name :
    Panel Mount Kits
    Part Number :
    761-P15002-000G
    761-P19003-000G
    761-P15002-000G
    761-P19003-000G
    TBD
    761-KS2150-000G
    Description :
    Panel Mount Kit for PMKS150 RoHS
    Panel Mount Kit for PMKS190 RoHS
    KSM150 Panel Mount Kit RoHS
    KSM170-AL / KSM190-AL Panel Mount Kit RoHS
    KSM185 Panel Mount Kit RoHS
    KSM215-AL Panel Mount Kit RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-TPC000-000G
    Description :
    ACCESSORY WALL MOUNT KITS
